Instruction Manual
20220653 / Rev. C 21
Calibration
Automatic calibration is activated from the autopilot’s “Seatrial”
menu. (See autopilot manual for complete calibration
procedure).
Calibration data, including any heading offset, is stored in the
ACXX/J3XX (EEprom) but will be deleted
by a “Master Reset”
in the autopilot.
5.2 RC25 Rate Compass (Robnet)
Recommended connection for
AP20/21/22, AP300X, AP35 and AP50
RC25
RATE
COMPASS
Control Unit (AP20)

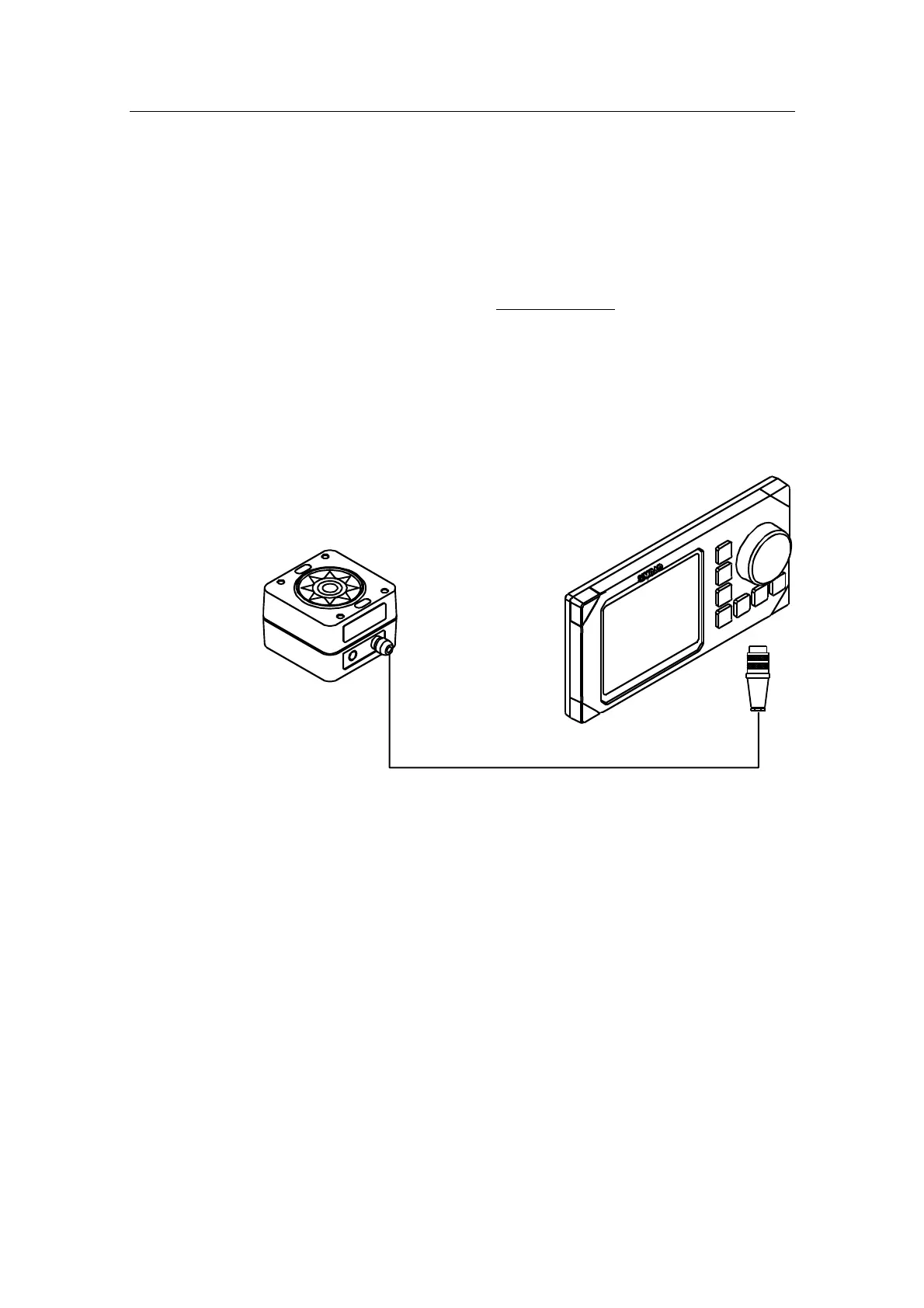

Figure 5-3 RC25 connection to autopilot control unit
Recommended connection of RC25 to the autopilot control unit
using the Robnet connector.
To Next Page
