Simrad RC25 - Connection to AP11

Instruction Manual
20220653 / Rev. C 23
Connection to AP11
AP11
CONTROL
UNIT
RC25
RATE
COMPASS
J3XX
JUNCTION UNIT
ALTERNATIVE CONNECTION
CONTROL UNIT
Bus
Bus +
Vsys+
Vsys
On-Off
Alarm
Bn
Wh
Gry
Yel
Gn
GREY
BROWN
PINK
WHITE
GREY
BROWN
GREEN
PINK
YELLOW
WHITE
DO NOT
CONNECT!
DO NOT
CONNECT!
ALTERNATIVE CONNECTION
J3000X/J300X JUNCTION UNIT
REAR SIDE
MAIN PCB
Pnk
NOTE
ROBNET
RC25
RATE
COMPASS

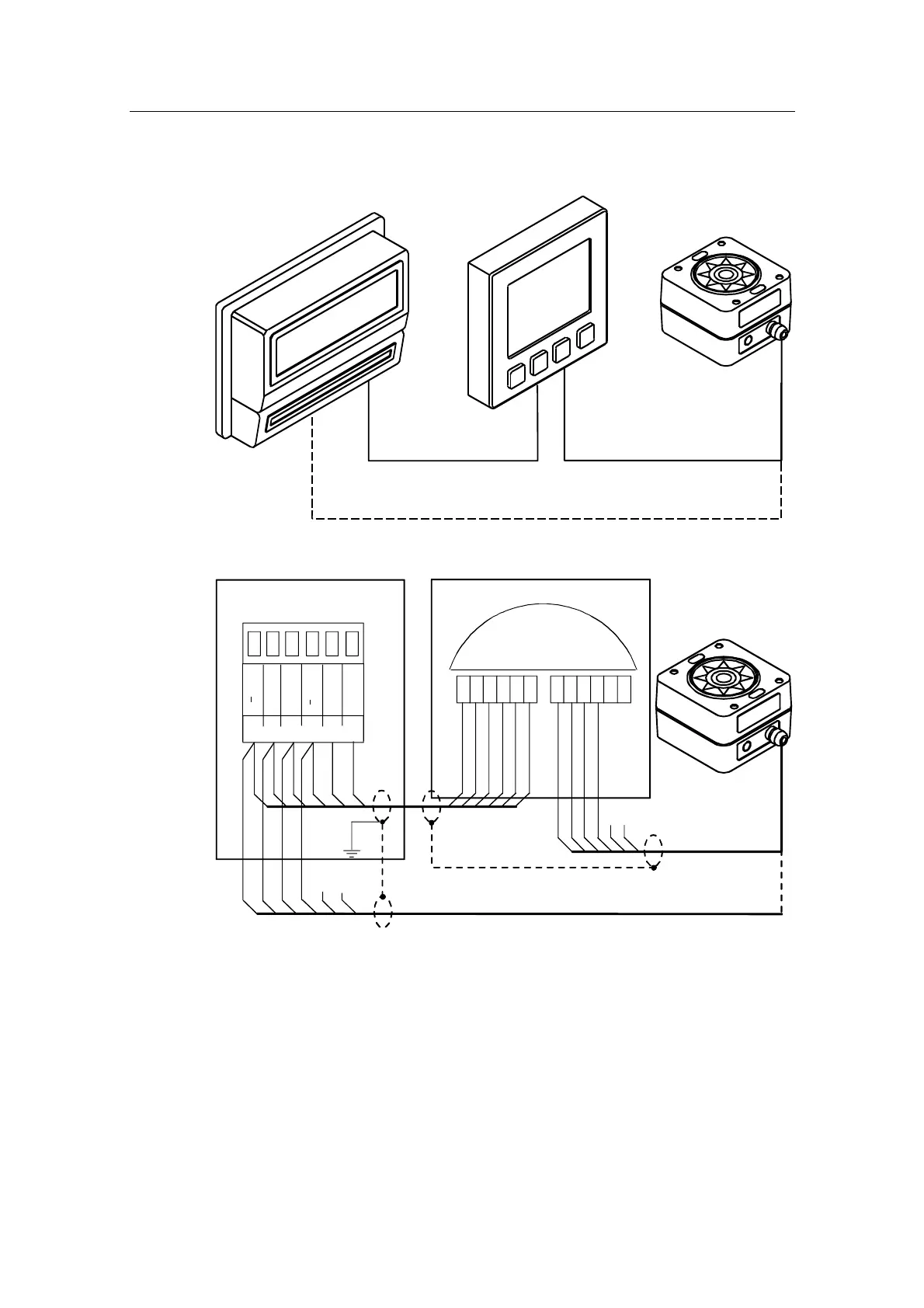

Figure 5-5 RC25 connection to AP11
The Robnet connector on the compass cable is removed and the
wires are connected to J3XX Robnet terminal in parallel with the
ones going to the control unit or to the spare terminal on the
control unit.
