Instruction Manual
20220653 / Rev. C 33
5.5 RC37 Rate Compass
Connection to AP45 and AP9MK3
RC37
RATE
COMPASS
AP45
Figure 5-13 RC37 connection to AP45/AP9MK3

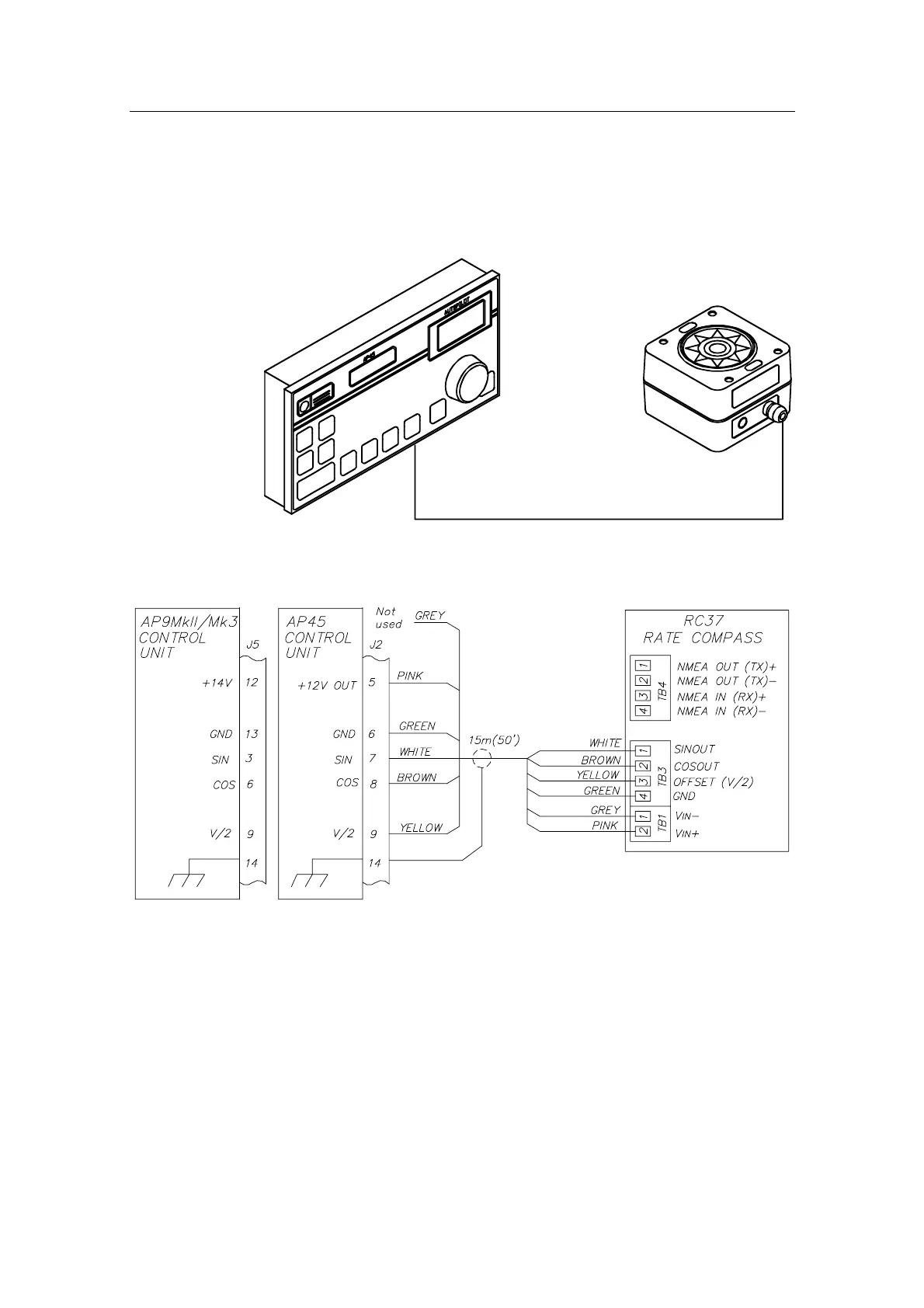

Figure 5-14 RC37 wiring to AP45 and AP9Mk3
