Simrad RC25 - Alternative Connection to Junction Unit

Simrad Autopilot Compass
22 20220653 / Rev. C
Alternative connection to junction unit
J3XX/J50
JUNCTION UNIT
RC25
RATE
COMPASS
JUNCTION UNIT
MAIN PCB
Robnet
Vsys+
Vsys
Gry
Pnk
PINK GREY
PINK
GREY
WHITE
BROWN
Bus+ Bus
Bn
Wht
WHITE
BROWN
TB15
RC25
RATE
COMPASS

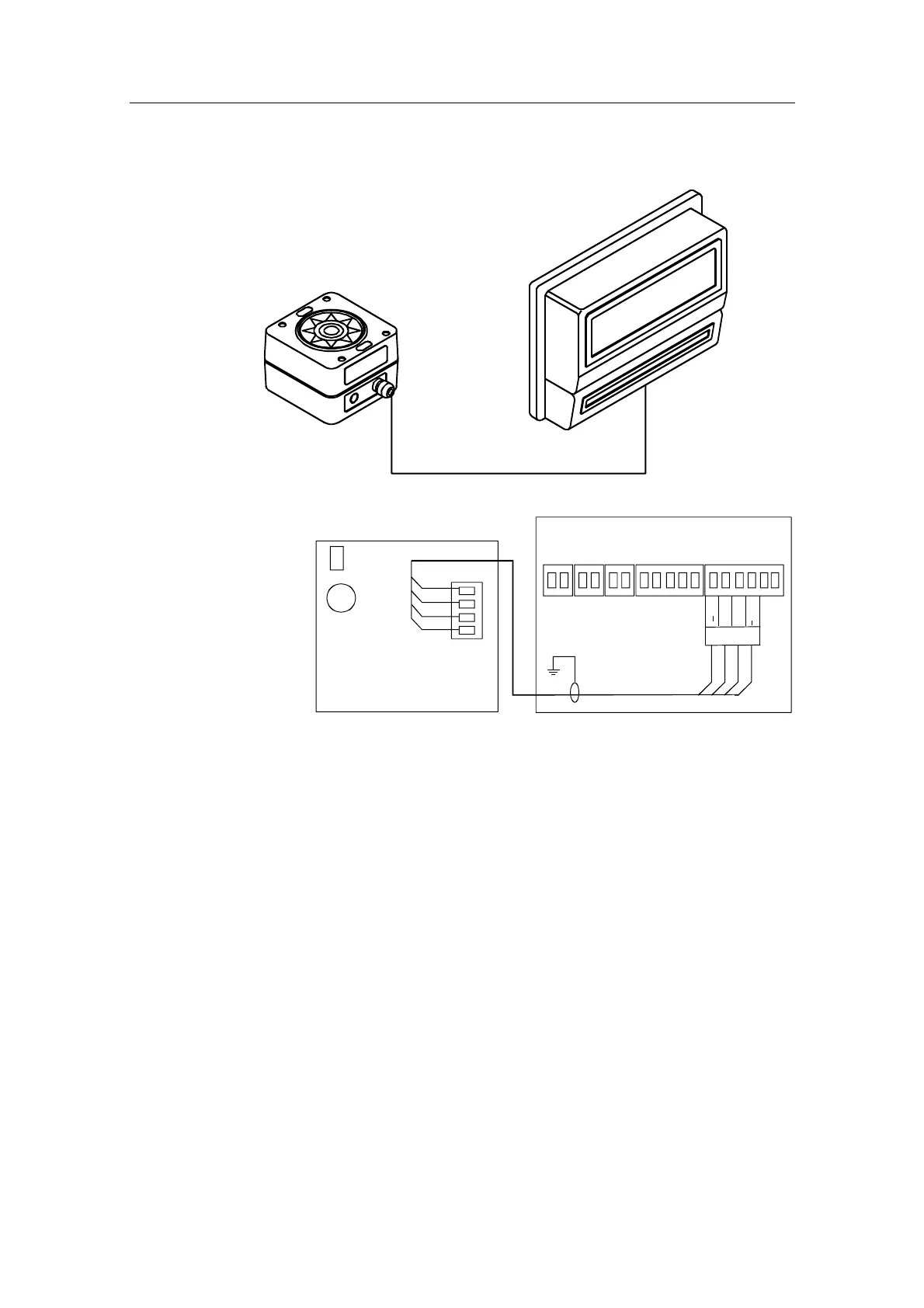

Figure 5-4 Alternative connection to J3XX/J50 Robnet terminal
The Robnet connector on the compass cable is removed and the
wires are connected in parallel with the ones going to the control
unit.
