Simrad RC25 - RC36 Rate Compass (Robnet2); Connection to AP16, AP25, AP26, AP27; Alternative Connection to ACXX Autopilot Computer

Instruction Manual
20220653 / Rev. C 25
5.3 RC36 Rate Compass (Robnet2)
Connection to AP16, AP25, AP26, AP27
RC36
RATE
COMPASS
CONTROL UNIT (AP25)

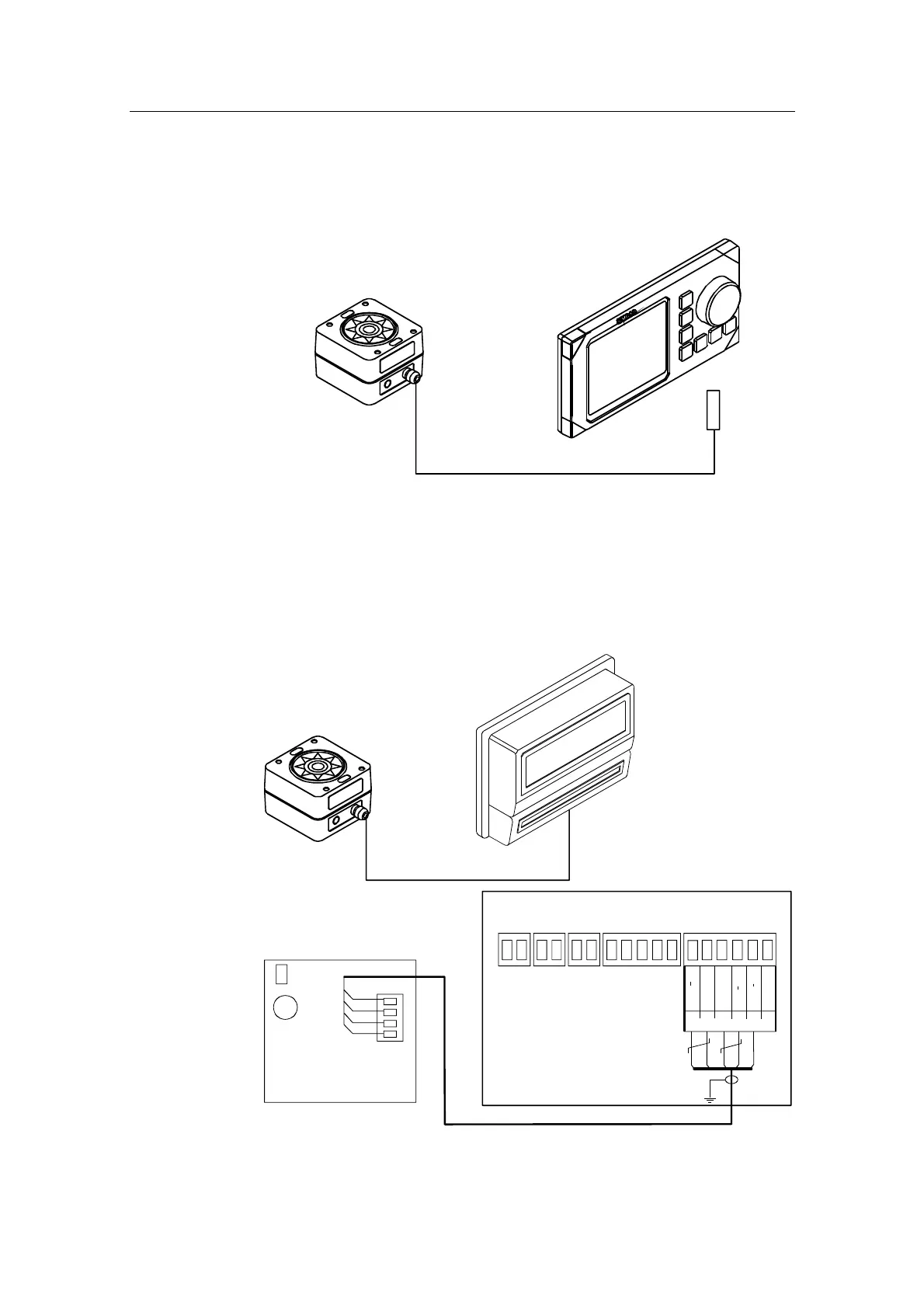

Figure 5-6 RC36 connection to autopilot control unit
Recommended connection of RC36 to the autopilot Control Unit
using the Robnet2 connector.
Alternative connection to ACXX Autopilot
Computer
ACXX
AUTOPILOT
COMPUTER
RC36
RATE
COMPASS
On-Off
Vsys+
AUTOPILOT COMPUTER
MAIN PCB
ROBNET
Bus+
Vsys
Wh
Bn
Bus
Pnk Gry
Yel
TB15
PINK
GREY
WHITE
BROWN
RC36
RATE
COMPASS
Figure 5-7 Alternative connection to ACXX
