Simrad RC25 - Technical Specifications; RFC35 Fluxgate Compass

Instruction Manual
20220653 / Rev. C 37
7 TECHNICAL SPECIFICATIONS
7.1 RFC35 Fluxgate Compass
Dimensions:.................................................................................................See Figure 7-1
Weight: ....................................................................................................... 0,9 kg (2,0 lbs)
Supply and output:..............................................Polarity independent 2-wire supply with
superimposed pulse width modulation
Automatic Performance:
Calibration:......................................................... Automatically activated by control head
Gain compensation:..................................................Automatically adjusted continuously
Repeatability:................................................................................................. ± 0.5 degrees
Roll/Pitch:....................................................................................................... ± 35 degrees
Accuracy:.............................................................................................................<1° (rms)
Cable supplied:..............................................................................15 m TP shielded cable
Temperature range:
Operation:...................................................................0 to +55 °C (+32 to + 130 °F)
Storage: ...................................................................–30 to +70 °C (–22 to +158 °F)
Environmental Protection:...........................................................................................IP56
Mounting: ............................................................................................... Deck or bulkhead
Material: ............................................................................................................Black ABS

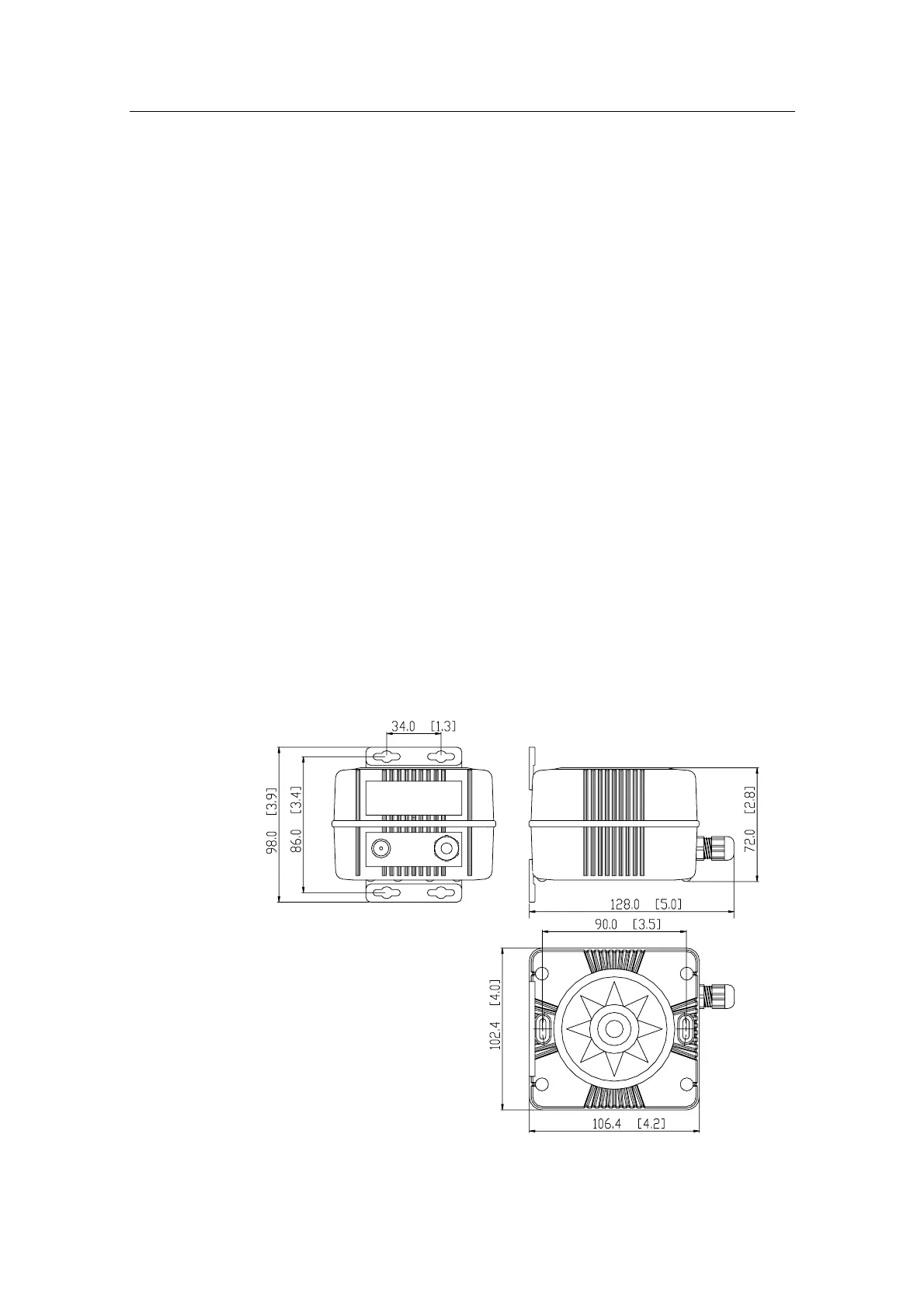

Figure 7-1 RFC35 Fluxgate Compass - Dimensions
