Repeat the above key sequence to toggle between the position
and time displays.
6.6 Intercom
If the system comprises more than one station and/or includes
intercom speakers, it is possible to make an intercom call to a
selected position from a station.
Note This assumes that the installation consists of a fully expanded
RS86/RS87 system with up to four stations and two intercom
speakers. The options shown will only be available, if the rele-
vant stations/intercoms are installed.
6.6.1 Making an intercom call

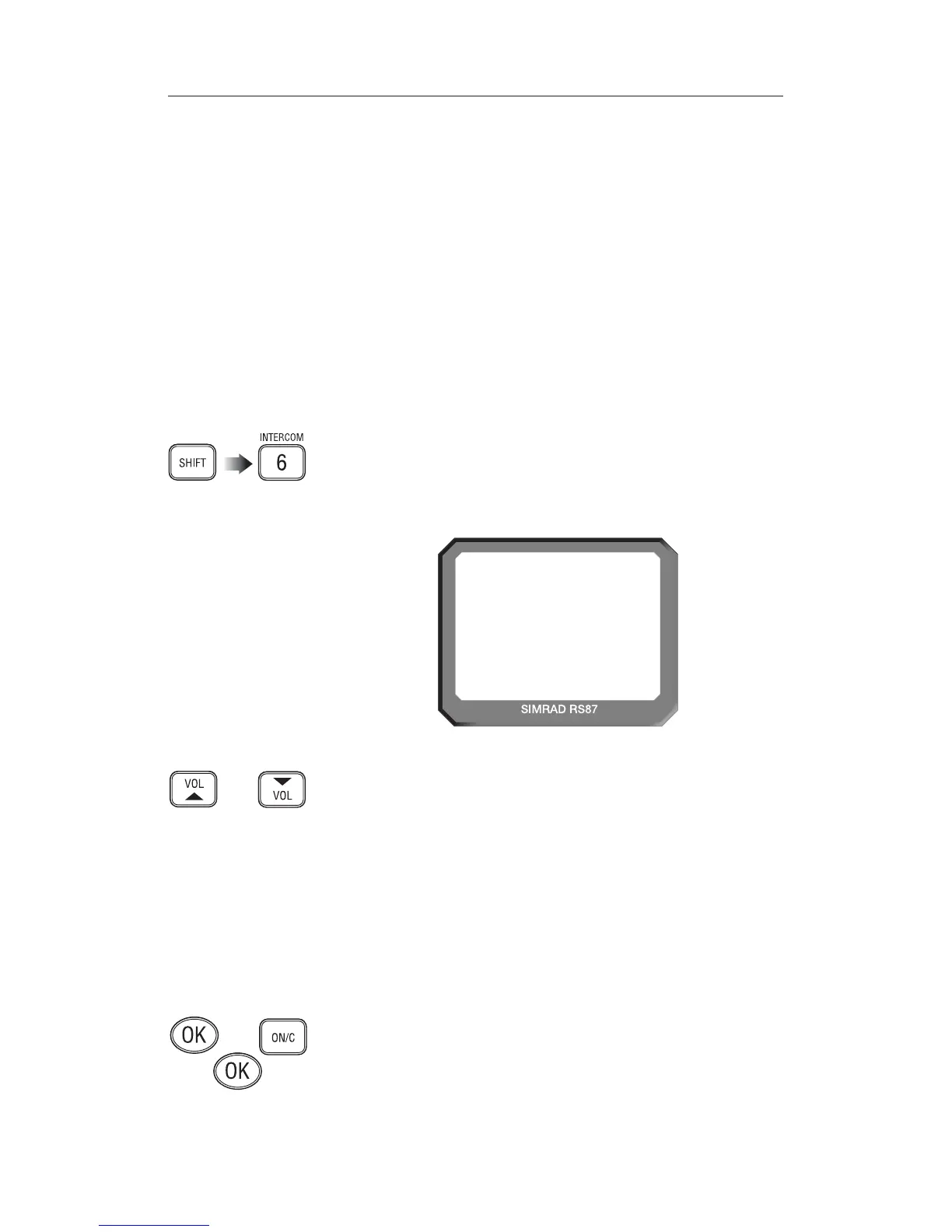

Press SHIFT then 6 (INTERCOM) to enter Intercom mode. The
display will show “INTERCOM STN X–STN Y”, where “X” is
the ID of the current station being used and “Y” the first of the
other stations in the system (Fig 6.7).
Use the VOL ▲ and VOL ▼ keys to scroll through the available
stations/intercoms that can be called from the station:
“Stn 1–Stn 2” Intercom call to Station 2
“Stn 1–Stn 3” Intercom call to Station 3
“Stn 1–Stn 4” Intercom call to Station 4
“Int Spkr 1” Intercom call to Intercom speaker 1
“Int Spkr 2” Intercom call to Intercom speaker 2
“All Spkrs” Intercom call to all Station speakers
“PA” Intercom call to all speakers in system
(including horns)
Press the PTT key or OK to activate the intercom, or press
ON/C to cancel. Once the call has been initiated, further presses
of the OK key will re-sound the call alarm. Pressing the PTT
key will open the audio path to the called station.
12
I N T ERCOMAA
STN 1 -STN2 B
INT
Fig 6.7 - Making an intercom call to Station 2 from Station 1
