8.7 Technical specification
Power supply . . . . . . . . . . . . . . . . . . . . . . . . . . . 12V DC (10.8V–15.5V DC)
Channel capability . . . . . . . . . . . . . . . . . . . . . . . . . 55 international channels
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–28, 60–88 simplex & semi-duplex
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . UK: includes M (previously 37) and M2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . USA: Wx1–10 receive only
. . . . . . . . . . . . . . . . Scandinavia : leisure or fishing channels as appropriate
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . Canada: Canadian and USA channels
Private channels . . . . . . . . . . . . . . . . . . . . . . . . . Up to 18 private channels*
External speaker impedance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4Ω
* Please contact your local Simrad Technical Dealer for further details.
Transmit
Frequency range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155–163Mhz
Power output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Watt or 25 Watts
Current consumption . . . . . . . . . . . . . . . . . . . . 5.5A (25 Watts), 1.3A (1 Watt)
Harmonic and spurious emissions . . . . . . . . . . . . . . . . . . . . . . . . . < 0.25µW
Hum/noise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . < -40dB
Modulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±5kHz
Receive
Audio output power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Watts
Current consumption . . . . . . . . . . . . . . . 600mA (Full volume, illumination on)
. . . . . . . . . . . . . . . . . . . . . . . . . . . 220mA (Fully squelched, illumination off)
Sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . < 1µV emf for 20 dB SINAD
Harmonic and spurious emissions . . . . . . . . . . . . . . . . . . . . . . . . . . . < -2nW
Hum/noise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . < -40dB
Adjacent channel selectivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70dB
Intermodulation rejection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70dB
Environmental
Telephone handset & loudspeakers . . . . . . . . . . . . . . . . . Waterproof to IP67
Compass-safe distance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 m (3 ft 3 in)

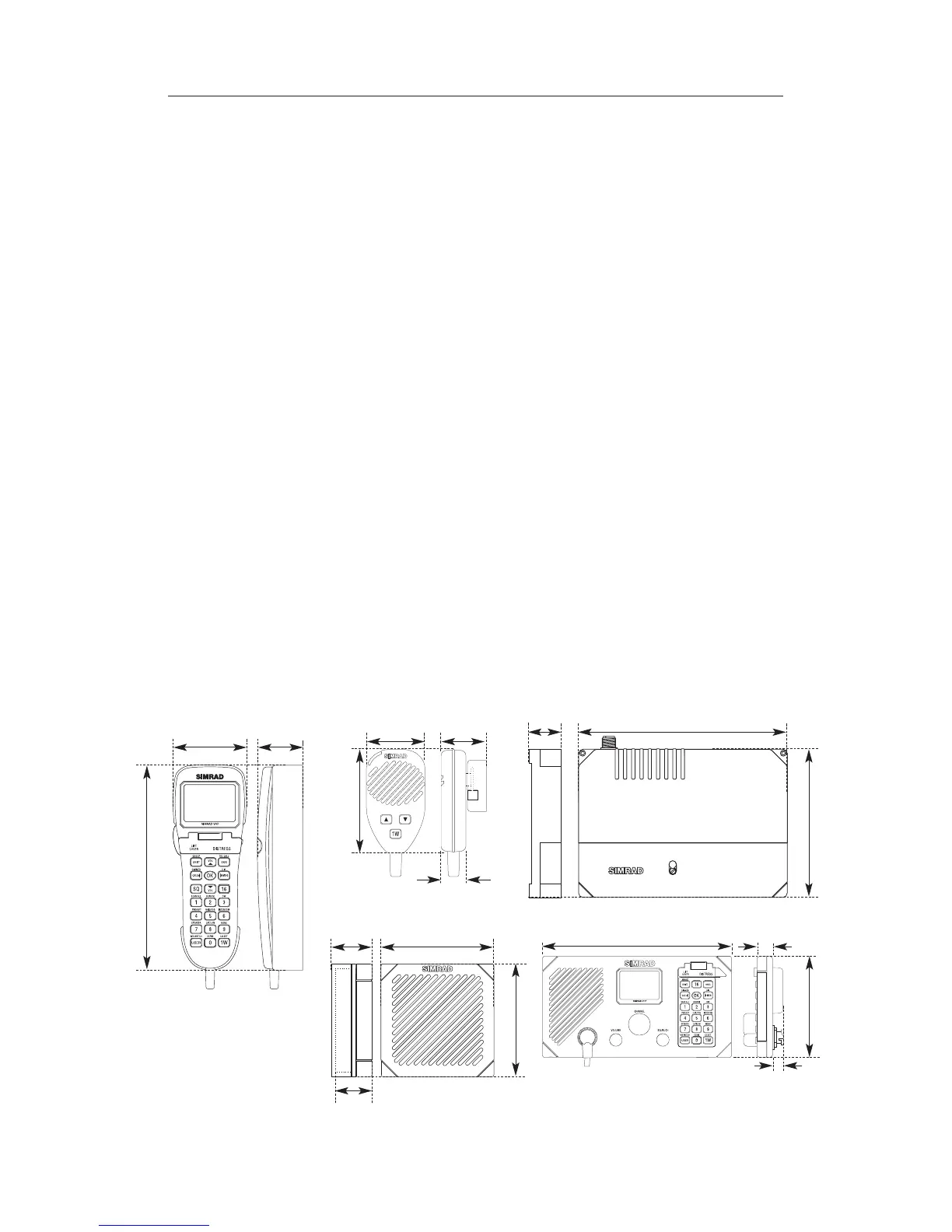

8.8 Dimensions
190mm (7.6in)
70mm (2.8in)
45mm
(1.8in)
168mm (6.72in)
243mm (9.72in)
63mm
(2.5in)
110mm (4.4in)
110mm (4.4in)
48mm
(1.9in)
45mm
(1.8in)
93mm (3.7in)
57mm
(2.3in)
43mm
(1.7in)
27mm
(1.1in)
110mm (4.4in)
220mm (8.8in)
18mm
(0.7in)
12mm
(0.5in)
