RS86/RS87 VHF
72
E04819 Issue 1.0
7.2.8 iDSC output
The RS86/RS87 is designed to integrate with other Simrad
equipment, which enables DSC call information to be displayed
on 3x, 4x, and 5x series Chartplotters, for example.
Connect the iDSC input terminals of the Chartplotter to the ter-
minals marked “iDSC” as shown (Fig 7.13).
Terminal
Number
3
4
Wire
Reference
iDSC -
iDSC +

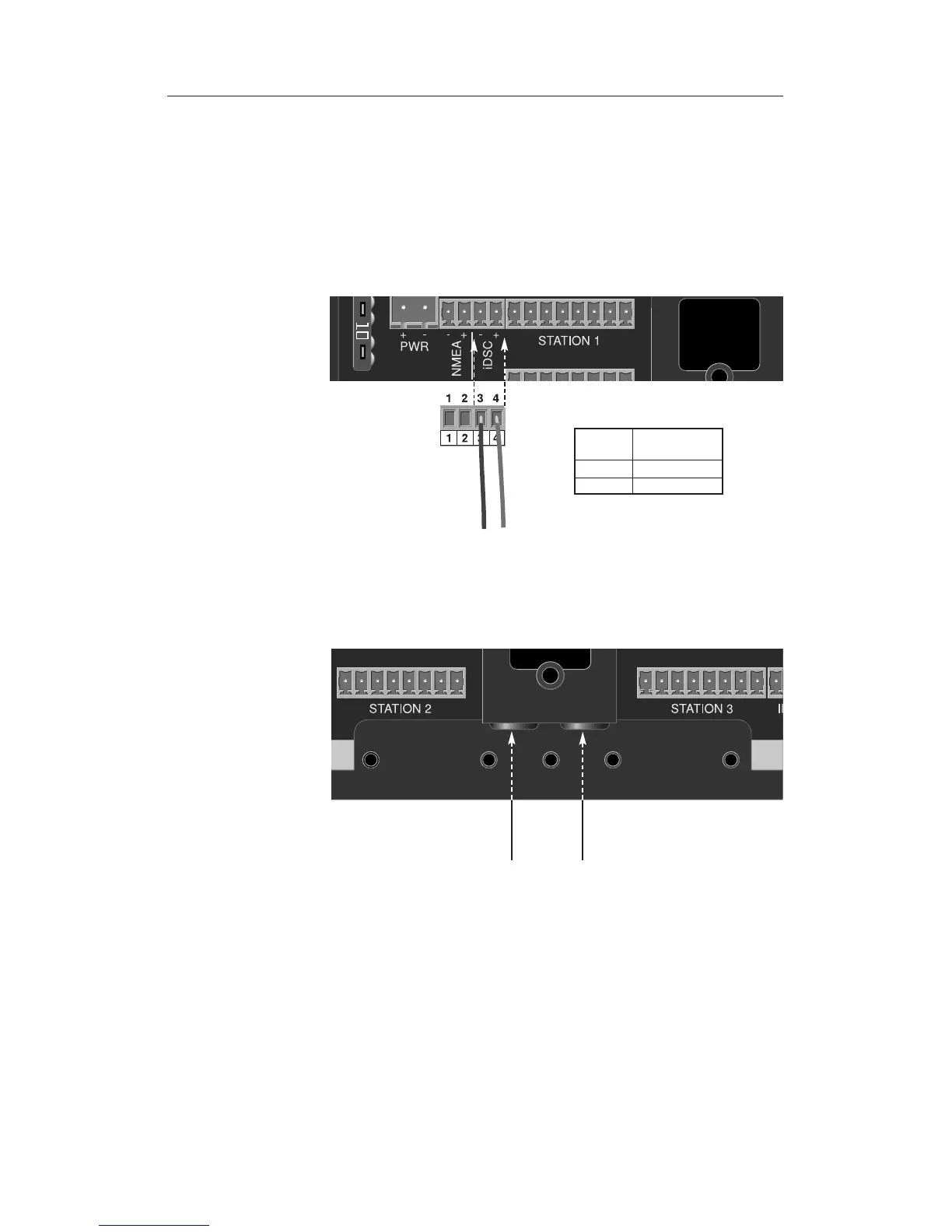

Fig 7.13 - iDSC output terminal connections
7.2.9 SimNet
The two circular ports in the center of the panel serve as con-
nectors for SimNet cables (Fig 7.14).
Fig 7.14 - SimNet connectors
SimNet
plugs
