RS86/RS87 VHF
68
E04819 Issue 1.0
7.2.1 Control stations
A single cable links the control panel to the transceiver unit. The
standard model can support up to two control stations, or up to
four stations if an expansion board is fitted. One fixed station is
supplied with the radio, additional stations are supplied as sepa-
rate accessories. The control stations can be either a handset
model (RS87), which is supplied with a separate loudspeaker,
or a fixed control panel (RS86) with a passive fistmike/handset.
Connect the main control station to the “STATION 1” terminals
on the transceiver unit as shown (Fig 7.5).
Terminal
Number
1
2
3
4
5
6
7
8
Wire
Color
Brown
Green
Red
White
Blue
Yellow
Orange
Black
Additional control stations should be wired in the same manner
and connected to the “STATION 2”, “STATION 3”* and
“STATION 4”* terminals (Fig 7.6).
*Only available on models fitted with an expansion board

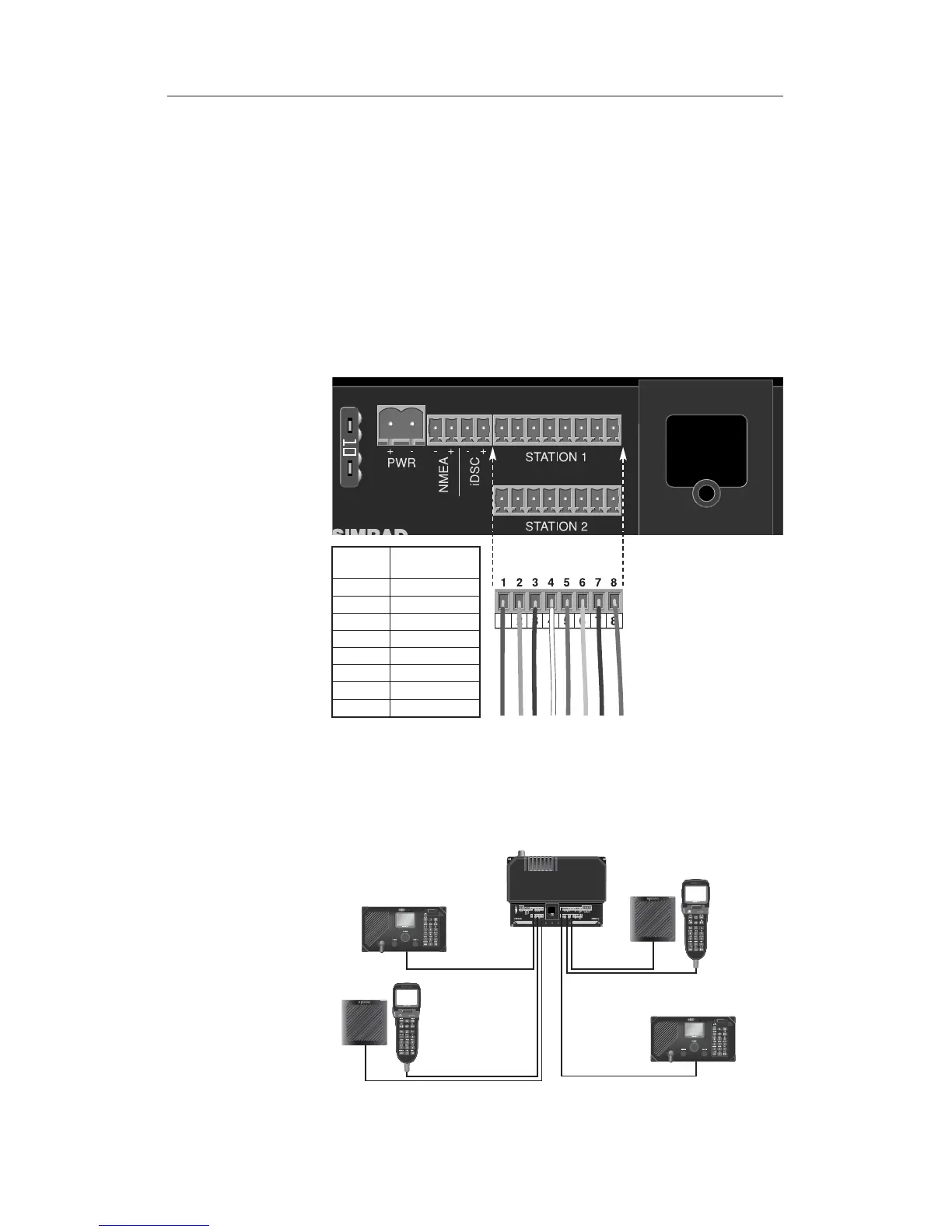

Fig 7.5 - Control station terminal connections
Station 2
Station 1
Station 4*
Station 3*
Fig 7.6 - Example of a typical multi-station installation
