Setup | RS90S User Manual
AIS Setup
¼ Note: The wired HS has a shortcut key to access AIS SETUP (Shift 2).
Enabling AIS functionality

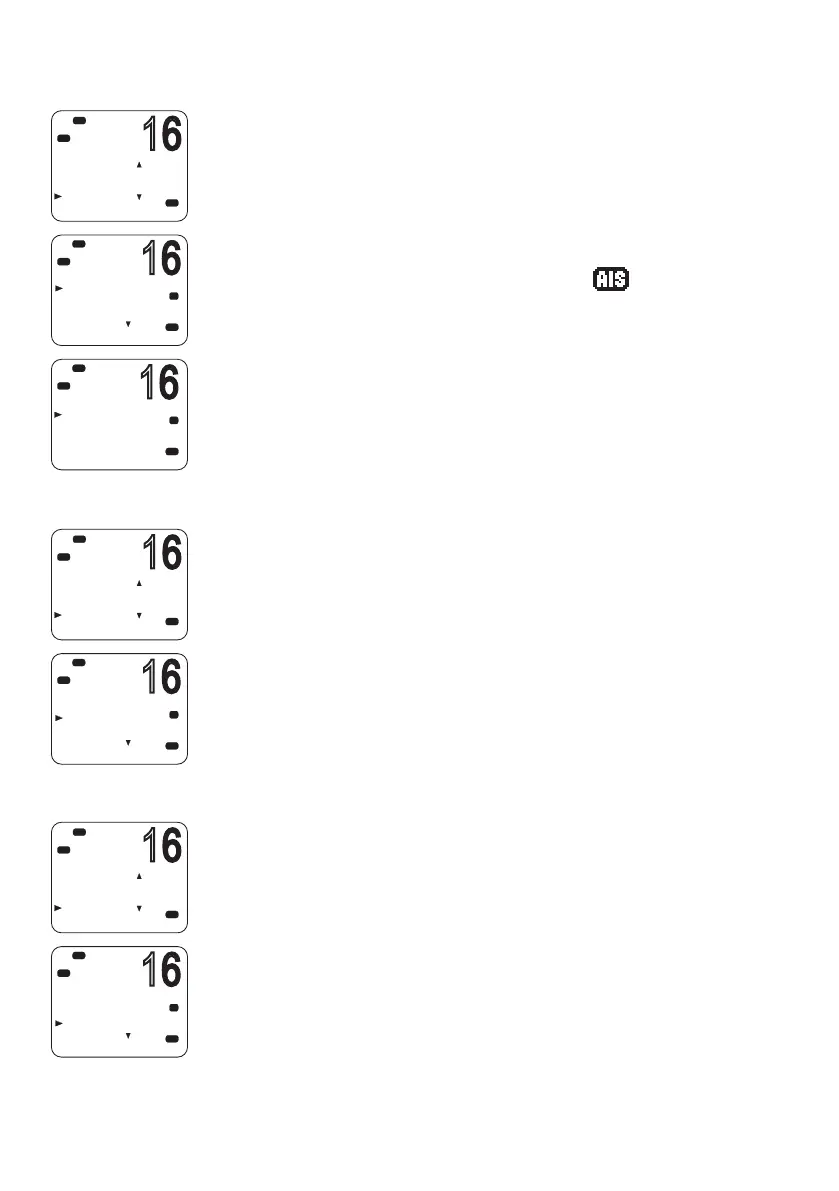

1. Select MENU → AIS SETUP → AIS FUNC.
2. Scroll to ON or OFF as required and press [OK].
¼ Note: When AIS functionality is enabled, the
icon is shown on
screen.
Setting up AIS display format
When viewing the PPI screen, AIS targets can be displayed with the
vessel’s name or MMSI.
1. Select MENU → AIS SETUP → AIS DISPLAY.
2. Scroll to SHIP MMSI or SHIP NAME as required and press [OK].
Setting up AIS baud rate
AIS data can be output to a compatible chart plotter, multi-function
device (MFD) or PC via the NMEA port.
The NMEA port baud rate can be set to 4800 or 38400. The default
setting is 38400. If 4800 is selected, a warning that data may be lost
will be displayed.
1. Select MENU → AIS SETUP → BAUD RATE.
2. Scroll to 4800 or 38400 as required and press [OK].
