Operation | V5035 Operator and Installation Manual
ETA/RTA INBOX
2013/01/17 23:27:10
Dangerous Targets :0 IL
------ MMSI ---- TYPE --- DATE/TIME--
READ
1. 200000001 RFM21 T 17:07 NO
MESSAGE INFORMATION
2013/01/17 23:27:10
Dan
erous Tar
ets :0
Sour. MMSI 200000001
DEST. MMSI 211000001
TIME 2013/07/03 17:07:00g
Fairway Number [ABCDE]
UN Country [UK]
ETA [00/00 00:00]
READ YES
TX ACK YES
Type RFM21
Fairway Hectometre [LMNO]
Num Of TugBoat [7]
Terminal Code [FGHIJK]
UN Locaon [BTG]
Air Draught (m) [0.00 m]
IL

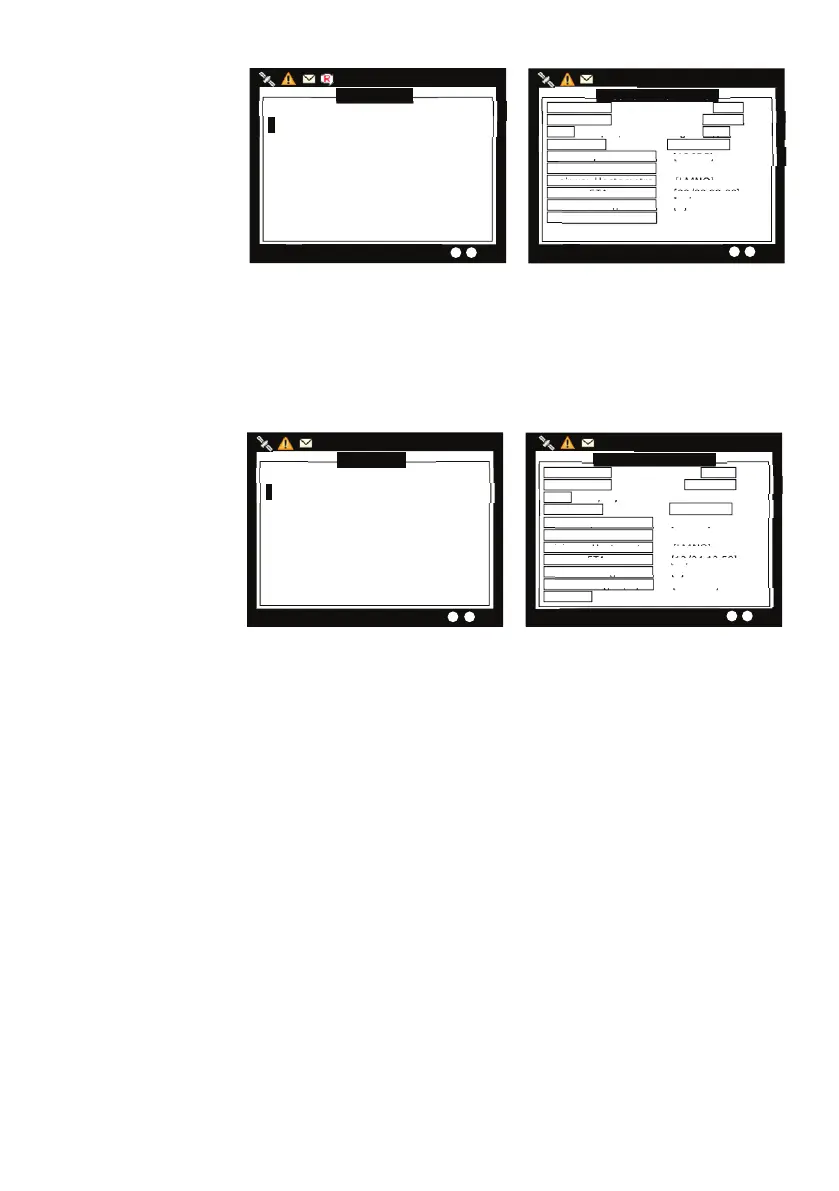

ETA/RTA inbox and message information
ETA outbox
The submenu displays log of sent ETA (RFM21) messages. Turn the
knob to traverse the message list and highlight your choice. Read
the message content by pressing the knob.
ETA OUTBOX
2013/01/17 23:27:10
---DEST. MMSI -- TYPE -- DATE/TIME----
TX
1. 200000001 RFM21 T 17:13 YES
MESSAGE INFORMATION
2013/01/17 23:27:10
Sour. MMSI 211000001
DEST. MMSI 200000001
TIME 2013/07/03 17:13:50
Fairway Number [ABCDE]
UN Country [UK]
ETA [12/24 13:50]
TX OK YES
RX ACK YES
Fairway Hectometre [LMNO]
Num Of TugBoat [6]
Terminal Code [FGHIJK]
UN Locaon [BTG]
Air Draught (m) [10.99 m]
ABK INFO Received by the addressed AIS
ETA outbox and message information
Create ETA message
For more information about ETA settings, please refer to page 61.
In this submenu users can compose ETA (RFM21) message. By
entering into the submenu, users will be prompted to select the ad-
dressee from the target list. Here you can either pick the addressee
from the list or press ESC to leave the target list and enter the MMSI
number manually.
TX CHANNEL gives you the option to send the message through
channel A, B or Alternate. By Alternate, which is the default option,
the system will select the channel automatically.
After ETA (RFM21) transmitted, if no RTA (RFM22) is received within
15 minutes, transponder will transmit ETA (RFM21).
After the addressee is selected, you can configure the ETA message.
To Next Page
