4 Instructions on operator control and operation
4
Instructions on operator control and operation

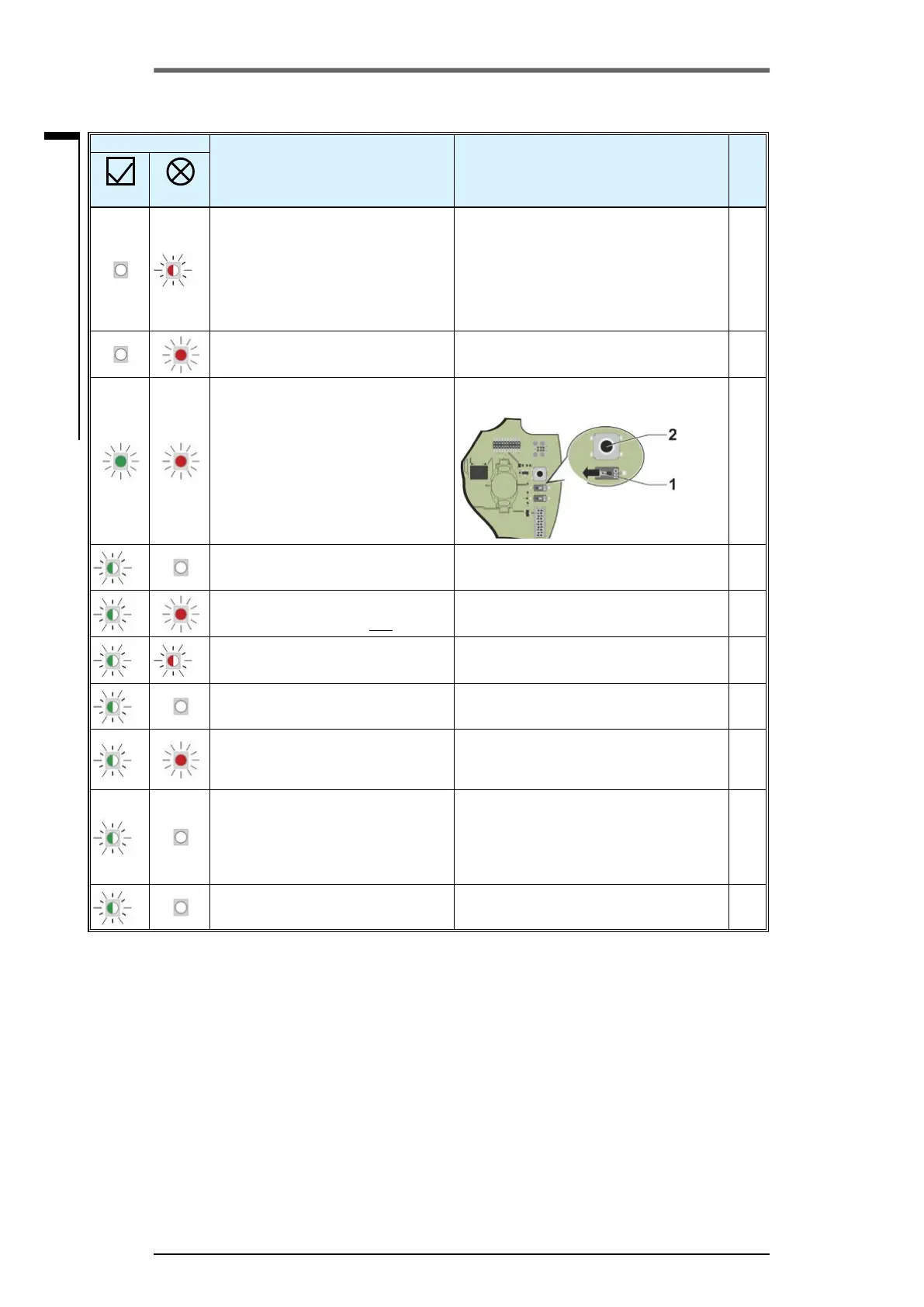

LED
Signication Corrective actions
Fault
type
(green)
(red)
6x
Fault:
■
End positions were passed
■
Fault during runtime monitoring
■
Recommissioning.
■
Check signaling gear and travel poten-
tiometer.
■
Check valve for sluggishness.
■
Increase torque values.
■
Check "Separate mounting“ parameter
using COM-SIPOS.
N
Fault: Device failure. Service, repair necessary.
Actuator does neither respond
to remote control nor to Drive
Controller.
Slide BOOT switch (1) on control PCB
and press RESET (2).
1x
Commissioning (IBS) active:
End position adjustment OK
--- ---
1x
Commissioning active:
End position adjustment not OK
Perform commissioning. N
1x 2x
Commissioning active:
Commissioning not possible.
Abort commissioning and evaluate ash
pattern.
N
2x
Crank handle/hand wheel operated.
■
Release crank handle/hand wheel.
■
Check cables for separate installation.
S
2x
Commissioning active:
Crank handle/hand wheel operated
during commissioning.
Release crank handle/hand wheel. S
3x
Commissioning active:
Commissioning via USB or eldbus
active, i.e. on-site commissioning
and operation via local control unit
not possible.,
--- ---
4x
Change-over from REMOTE to
LOCAL blocked.
Enable via eldbus. S
