4 Instructions on operator control and operation
4
Instructions on operator control and operation
4�6�2 End position menu
1 ‘End position‘ menu is active.
2 Indicates that end position CLOSED is
selected.
3 Cut-off mode in end position CLOSED:
a = travel dependent;
b = torque dependent
4 Save position for end position CLOSED.
5 Tick indicates that end position CLOSED
has been correctly saved.
6 Closing direction
a = counterclockwise;
b = clockwise.
7 Tick indicates that end position OPEN has
been correctly saved.
8 Save position for end position OPEN.
9 Cut-off mode in end position OPEN:
a = torque dependent;
b = travel dependent
10 Indicates that end position OPEN is
selected.
4�6�3 Parameter menu
1 ‘Parameter‘ menu is active.
2 Tripping torque in CLOSE direction,
3 Scale; indicates the setting of the respective
parameters.
4 Speed.
5 Output signal set selection for signaling
outputs and control modes.
6 Tripping torque in OPEN direction.
If the ‘Parameter’ menu is accessed in
´’REMOTE’ mode, the parameter values may
only be viewed.

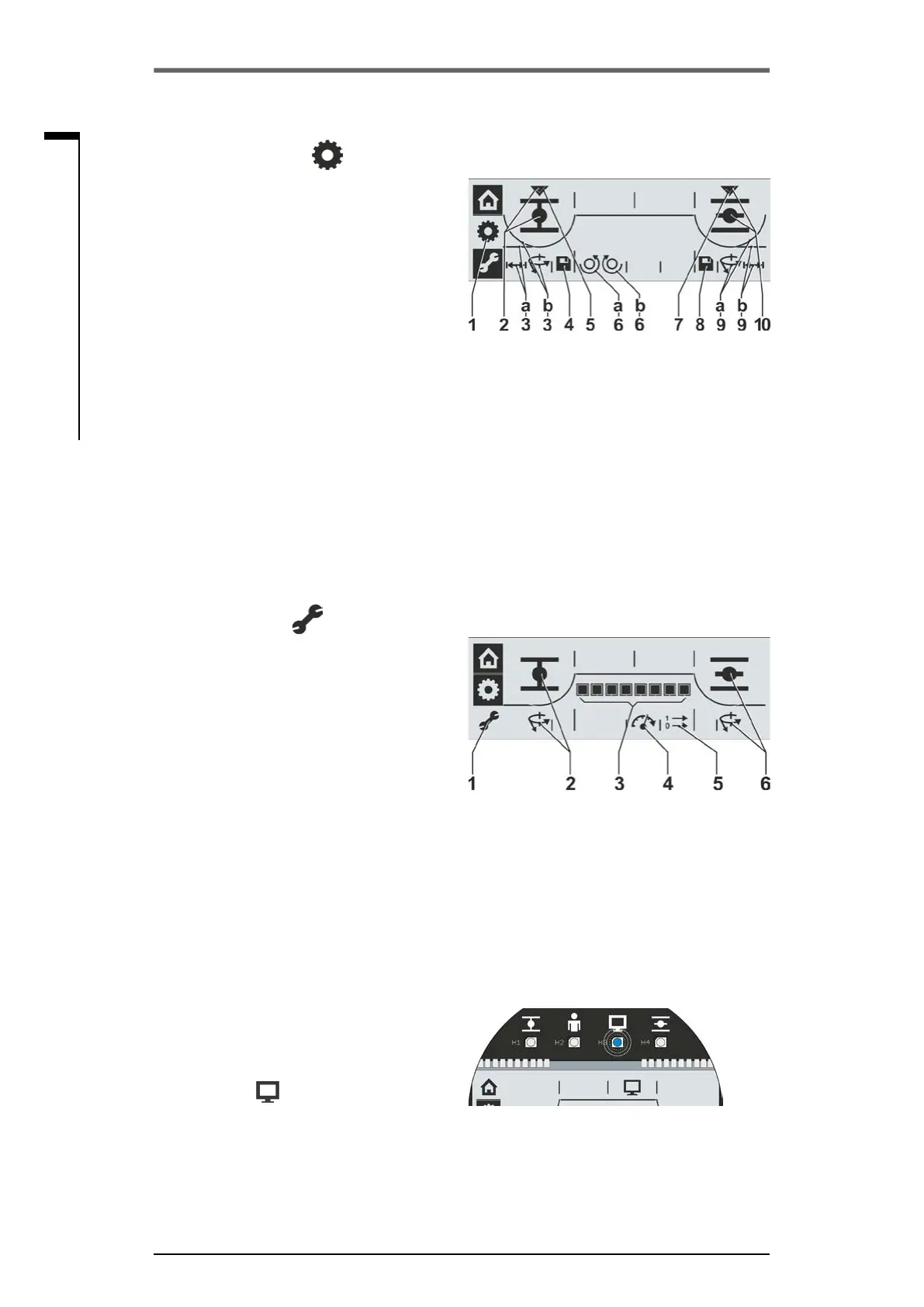

Fig�: End position menu overview
Fig�: Parameter menu overview
4�7 ‘Local' actuator operation
The actuator can only be operated for valid end position setting! For local actuator operation,
‘LOCAL mode’ must be active and the ‘Local operation’ menu selected. The menu can be accessed
from “REMOTE mode” or one of the two other menus.
Change from ’REMOTE mode‘ to
’LOCAL mode‘ and operate the actuator�
The actuator is in the "REMOTE mode" state.
REMOTE LED is illuminated and the symbol for
REMOTE mode
is indicated (g. 1).
Fig� 1: Display indicates REMOTE
mode active
