Y070.301/EN Page 23
Operation instructions
SIPOS SEVEN ECOTRON
4
Instructions on operator control and operation
4 Instructions on operator control and operation
1. Select LOCAL mode: Turn Drive Controller
counterclockwise.
’LOCAL mode‘ symbol
appears and is
ashing (g. 2).
2. Conrm selection: Press Drive Controller.
LOCAL mode is active, the symbol for
LOCAL mode is continuously displayed
and the yellow Local LED is illuminated.
The symbol for REMOTE mode and the
REMOTE LED are not illuminated (g. 3).
3. Select operation direction:
– CLOSE > Turn Drive Controller coun-
terclockwise, until CLOSED symbol is
displayed.
– OPEN > Turn Drive Controller clockwise
until OPEN symbol is displayed.
4. Operate actuator: Press Drive Controller.
The actuator is operated in direction of
the selected end position
1
and the position
indicator is changing accordingly, see also
previous chapter 4.6.1.
If you hold down the Drive Controller for more than 3 sec., self-retaining starts.
Pressing the Drive Controller once again will stop the actuator.
Changing from one of the menus to the
’Local operation‘ menu�
1. Complete end position adjustment or
parameterization and select ‘Local operation‘
(house symbol).
The house symbol is ashing inversely
(g. 4).
2. Conrm selection. Press Drive Controller.
The symbol is ashing normally (g. 5) and
the local operation menu is active.
3. Continue as described above from step 4.

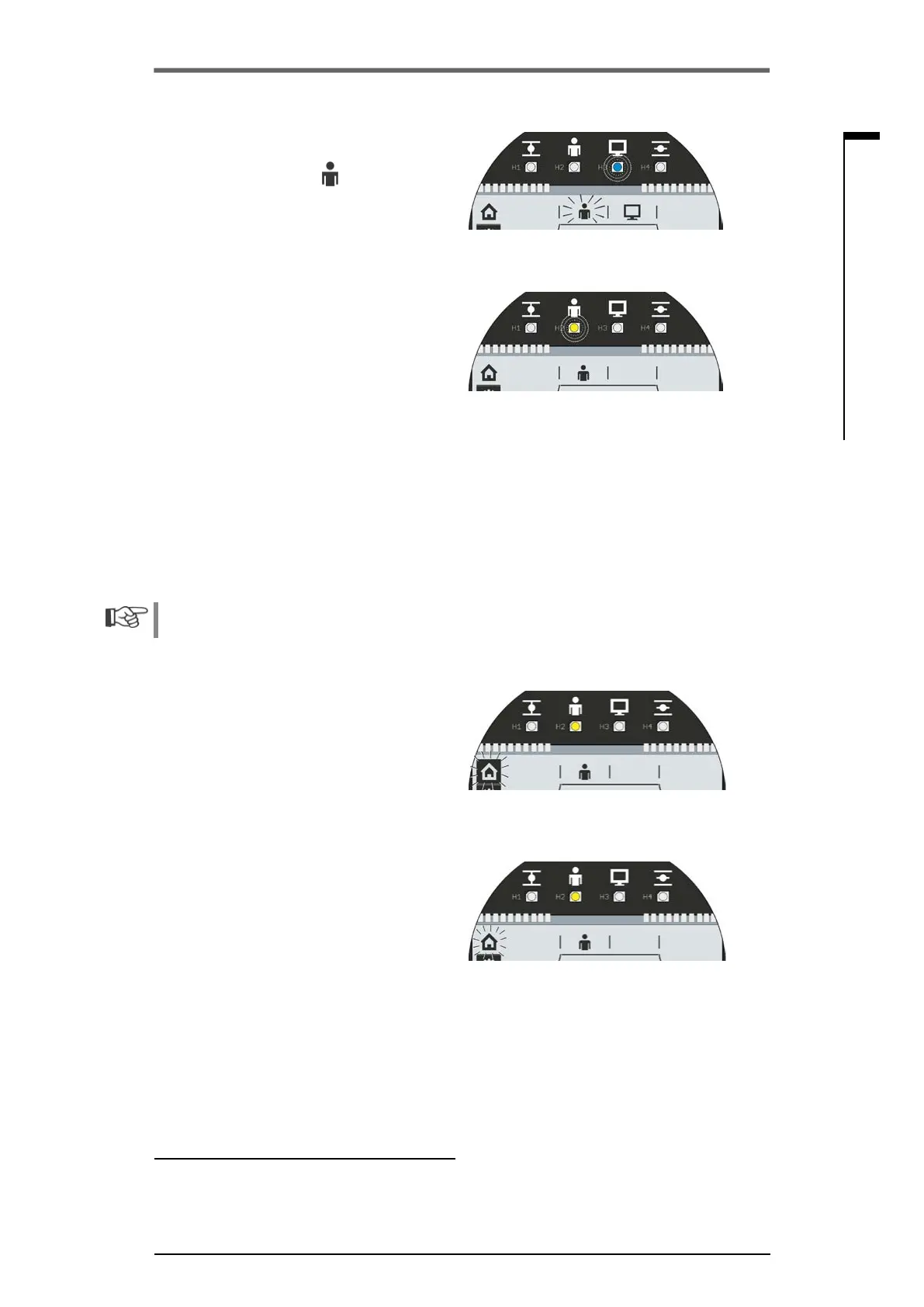

Fig� 2: Change over to local operation
mode is selected
Fig� 3: Local operation mode is active
Fig� 4: Local operation menu selected
Fig� 5: Local operation menu active
1
If the actuator has switched off automatically before reaching the end position, two causes are possible:
■
Sluggish nal closing element or unfavorable torque curve. In this case, cancel procedure or
■
Valve has reached mechanical stop, in this case readjust end positions (chapter 5)
