"Ceph p.a./a.p." workspace Operator's Manual GALAXIS
empty
Plane D
The view D (Default: Sagittal) can be freely adjusted. The name of the "sagit-
tal" plane is changed to reflect the current position.
6.5 "Ceph p.a./a.p." workspace
Validity
This workspace is not available for GALAXIS in connection with model versi-
on GAX5.

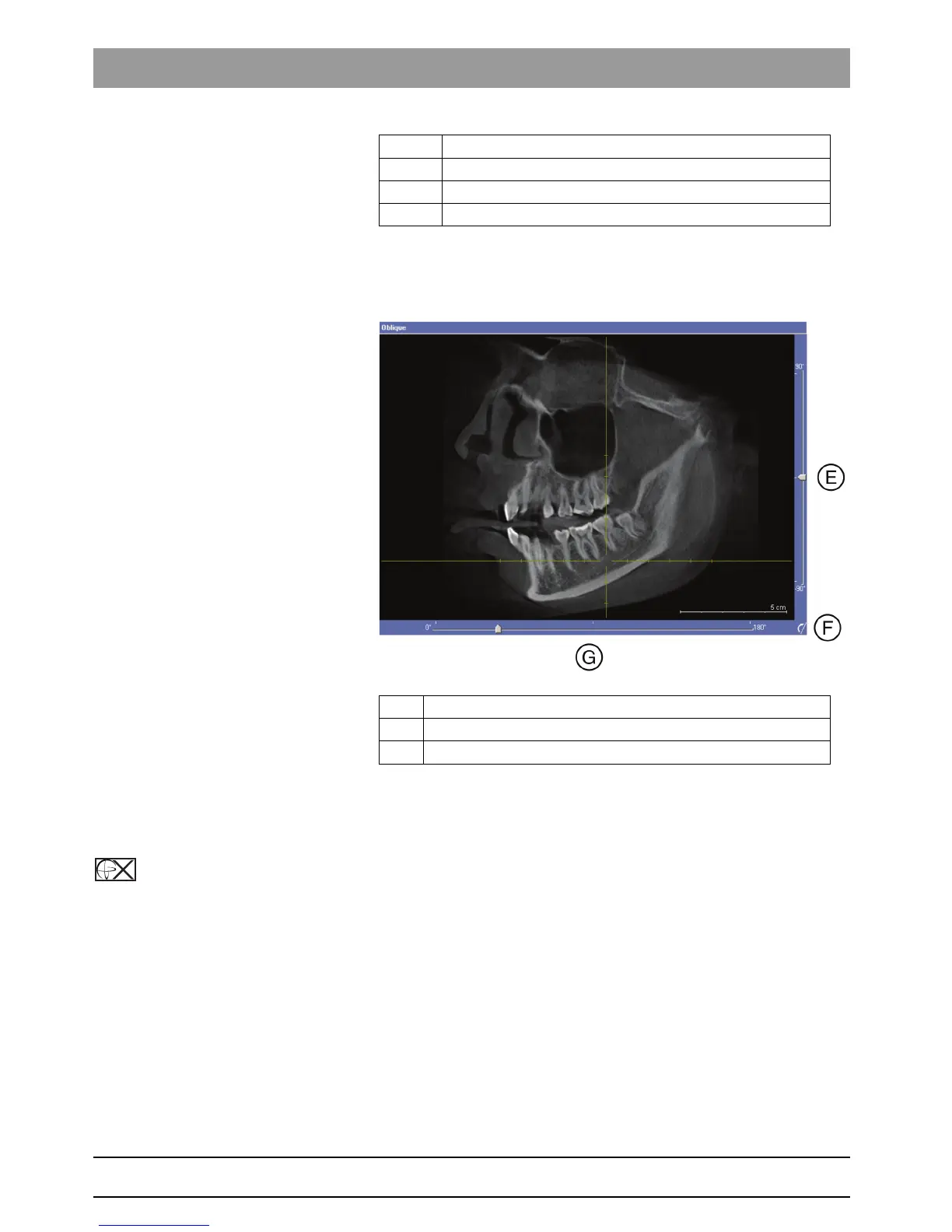

Explanation The Ceph view is calculated from the entire reconstructed volume.
Individual thin slices can also be viewed inside the Ceph view with the exami-
nation window.
See the section "Reconstructing a p.a./a.p. Ceph view [ ➙ 40]".
A Axial plane
B 3D view [ ➙ 23]
C Coronal plane [ ➙ 28]
D Sagittal plane [ ➙ 28]
E Tilt
F Reset rotation and tilt
G Rotation
