3.1.4 Connection to Peripheral Devices
a) Video printer (SONY UP-897MD video printer is recommend), video tape recorder
(VCR) and big-screen monitor, which can be connected to the main unit via a
cable with a BNC plug;
b) USB printer (Model HP LaserJet 1015 is recommended), which can be connected
to the main unit via a USB port.
【Note】: It is highly recommended to use our suggested printer model; otherwise,
the printer may not be supported by the system.
3.1.5 System Appearance (see Fig. 3-1)
Fig. 3-1
3.2 Introduction to Component Parts
3.2.1 Probe
3.2.1.1 The Outside Structure of Convex and Linear Probe
The structure of the super broadband veterinary linear probe is shown as below.

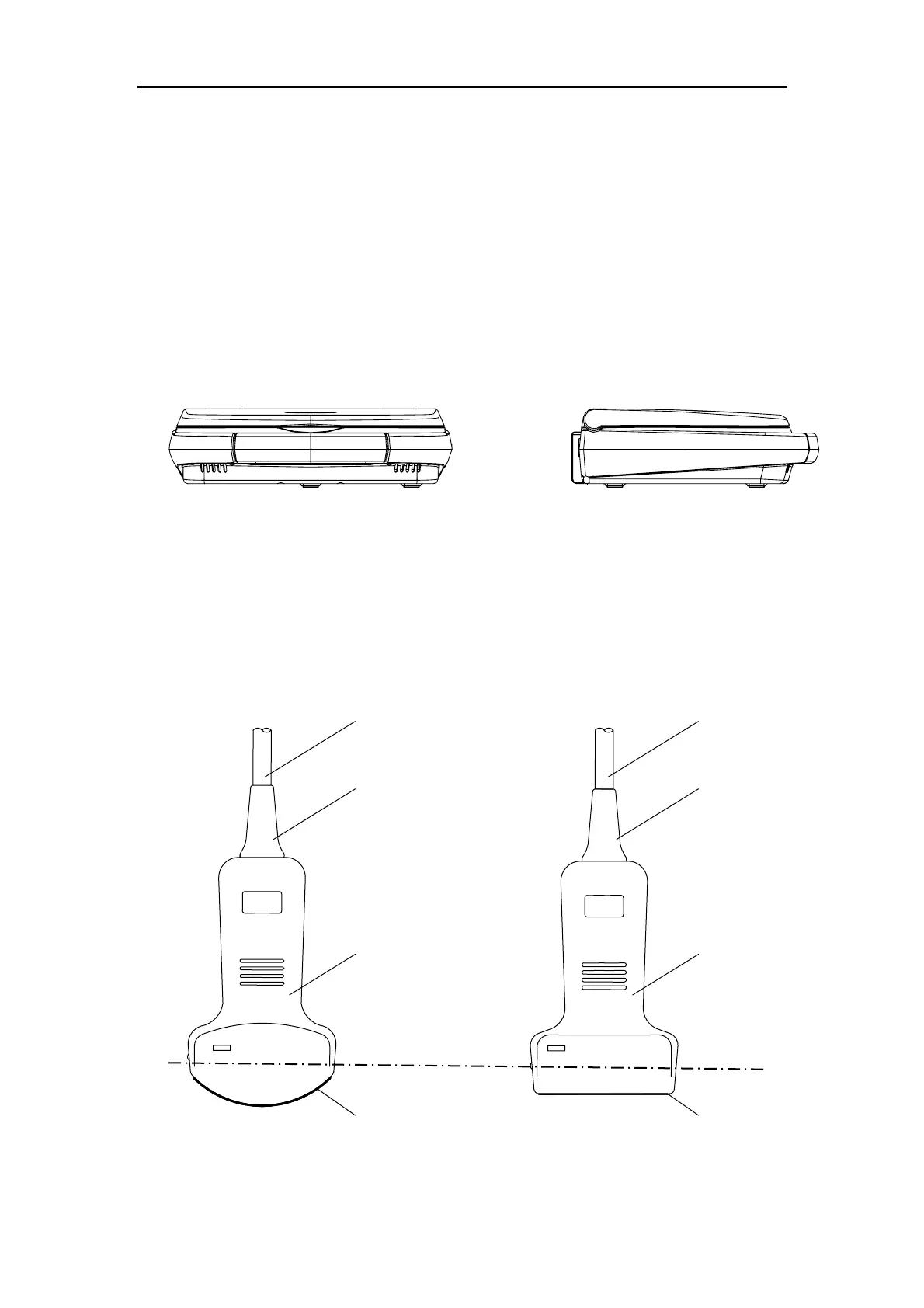

Fig. 3-2 Probe Structure
（Acoustic lens）
Probe head
Control section
Cable sleeve
Cable
（Acoustic lens）
Probe head
Control section
Cable sleeve
Cable
3.5MHz
7.5MHz
Convex Probe
Linear Probe
Immersion boundary
