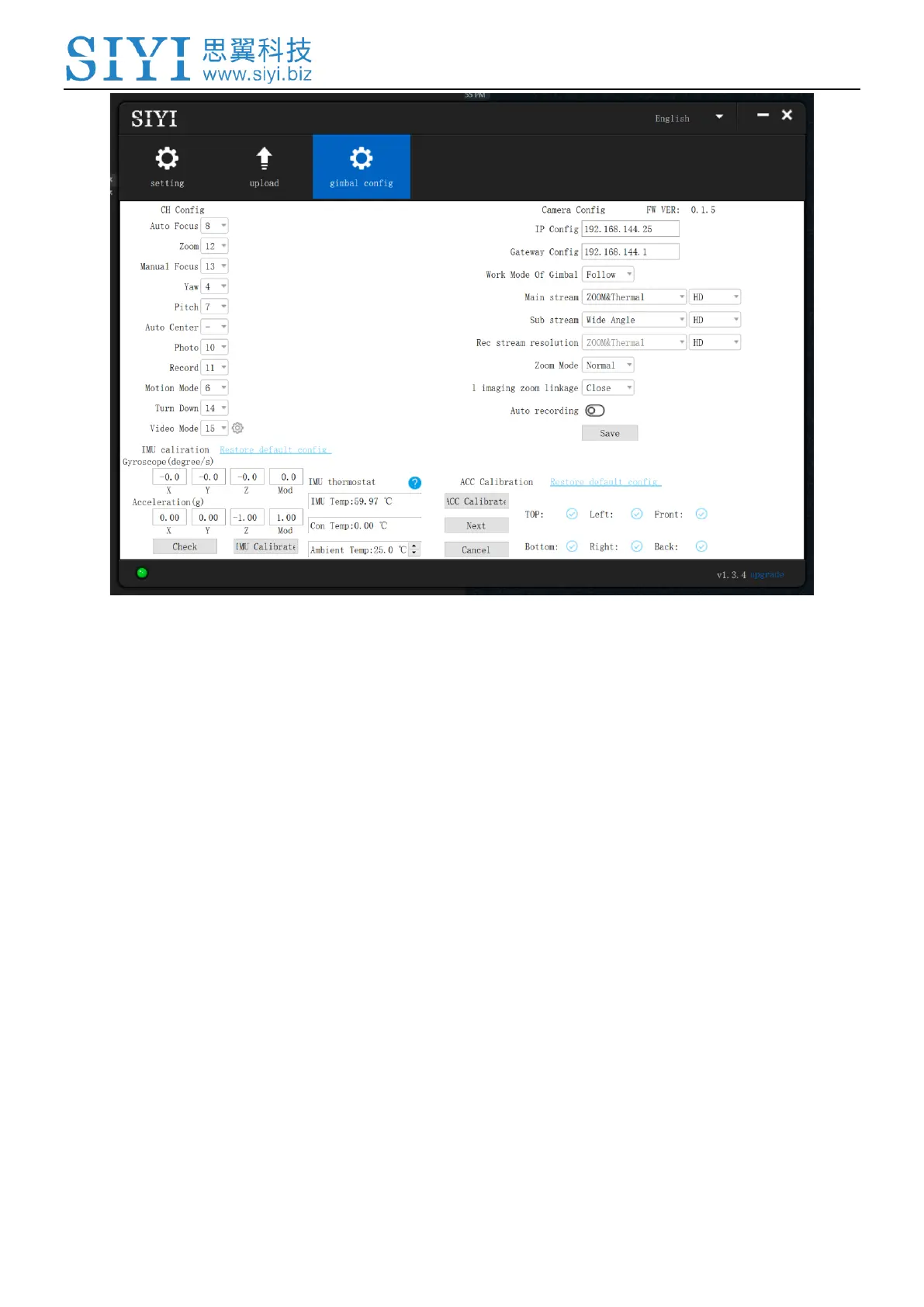

7. Under “Channel Config” page, assign remote controller channel 1 to 16 to target
gimbal and camera functions according to your requirement.
8. For the assigned channels, operate their mapped joysticks, dials, switches, and
buttons on MK15 remote controller to confirm if they are working normally.
3.2.2 Gimbal Pitch and Yaw Rotation (Taking an example of MK15 Dials)
Below are suggested MK15 channel mapping settings for testing, customers are
free to assign MK15 channel mappings as required through SIYI TX app.
⚫ Channel 7 = Left Dial (Reversed)
⚫ Channel 8 = Right Dial
