5.4 About SIYI FPV

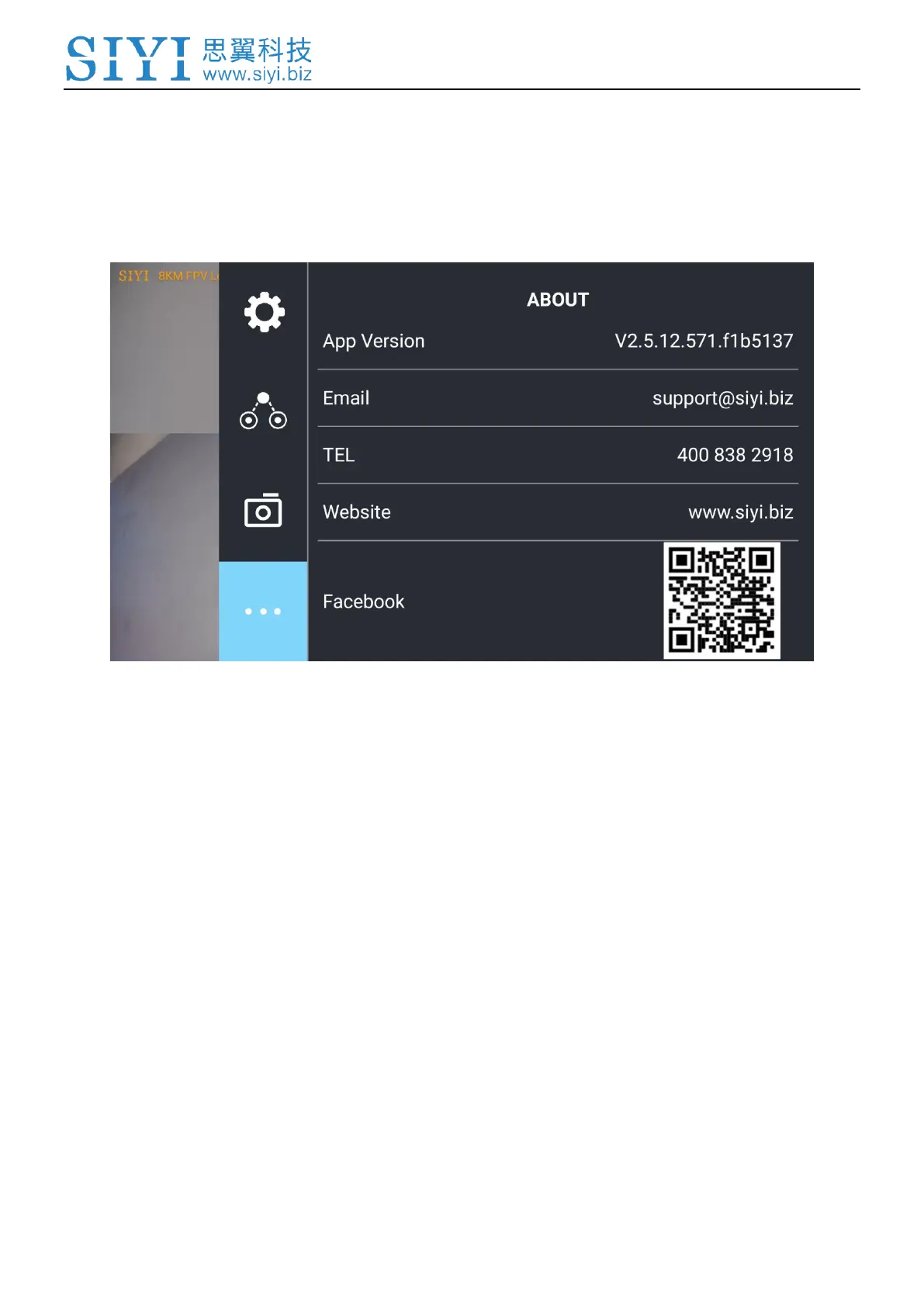

Displays the software version of SIYI FPV and common contact information of SIYI

Technology.
