MK32E User Manual V1.1

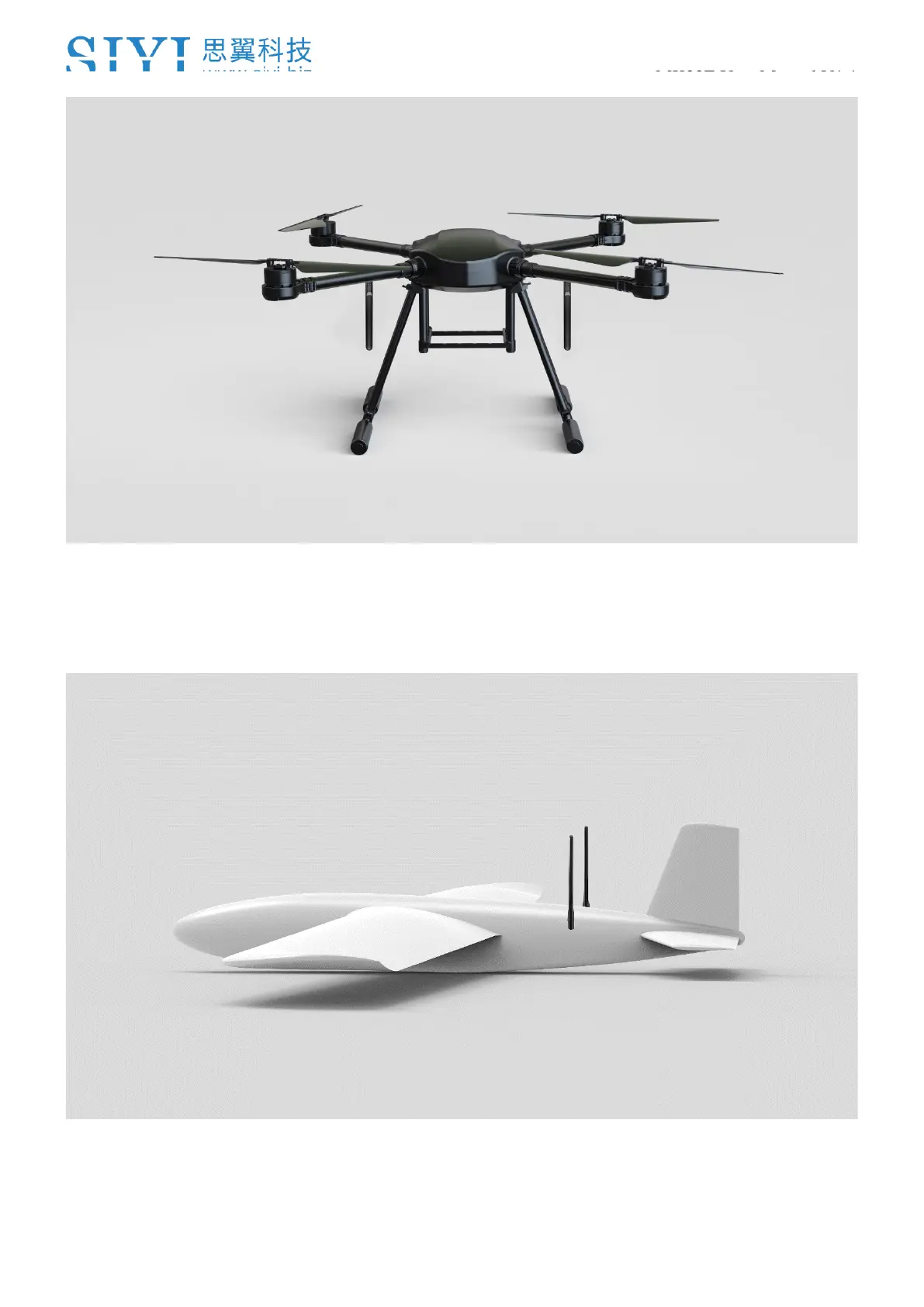

On plane, the standard omni antenna can stand vertically above the wings, and the antenna

flat side should always point to the ground unit during flight.
