3. Overview, functional description
3. Overview, functional description

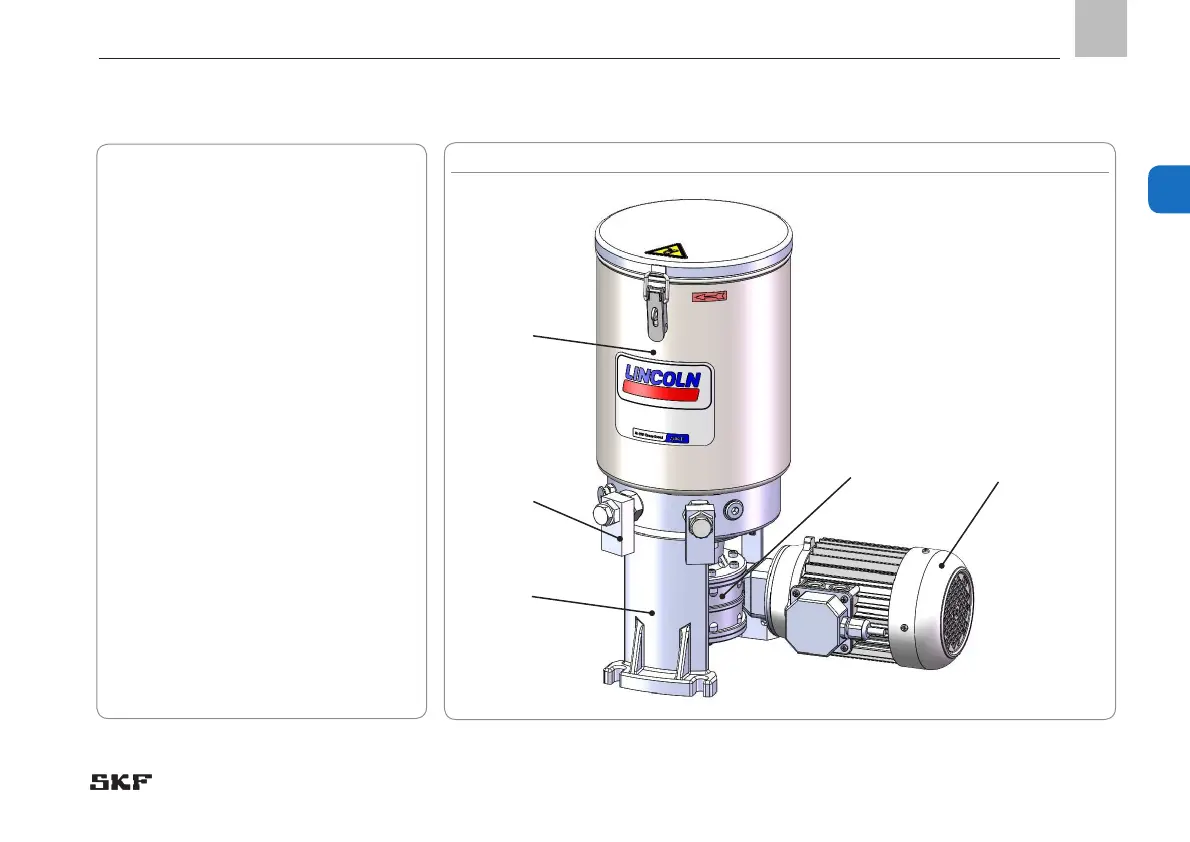

Overview Fig. 1
Pump types ZPU 01/ ZPU 02
basically consist of the following main
components
1 Reservoir with stirring paddle
The reservoir contains the lubricant and,
if needed, a sensor for low-level indication
purposes.
While the pump operates, the stirring paddle
rotates to homogenize and vent the lubricant.
The stirring paddle's lower part pushes the
lubricant towards the pump elements thus im-
proving transportability.
2. Pump element
Supplies lubricant into the lubricant feed line.
3. Pump housing
4. Gear
The gear reduces the motor speed to the speed
required for the pump's eccentric shaft.
5. Motor
The motor drives the pump and is connected to
the gear.
3
1
2
4
5
