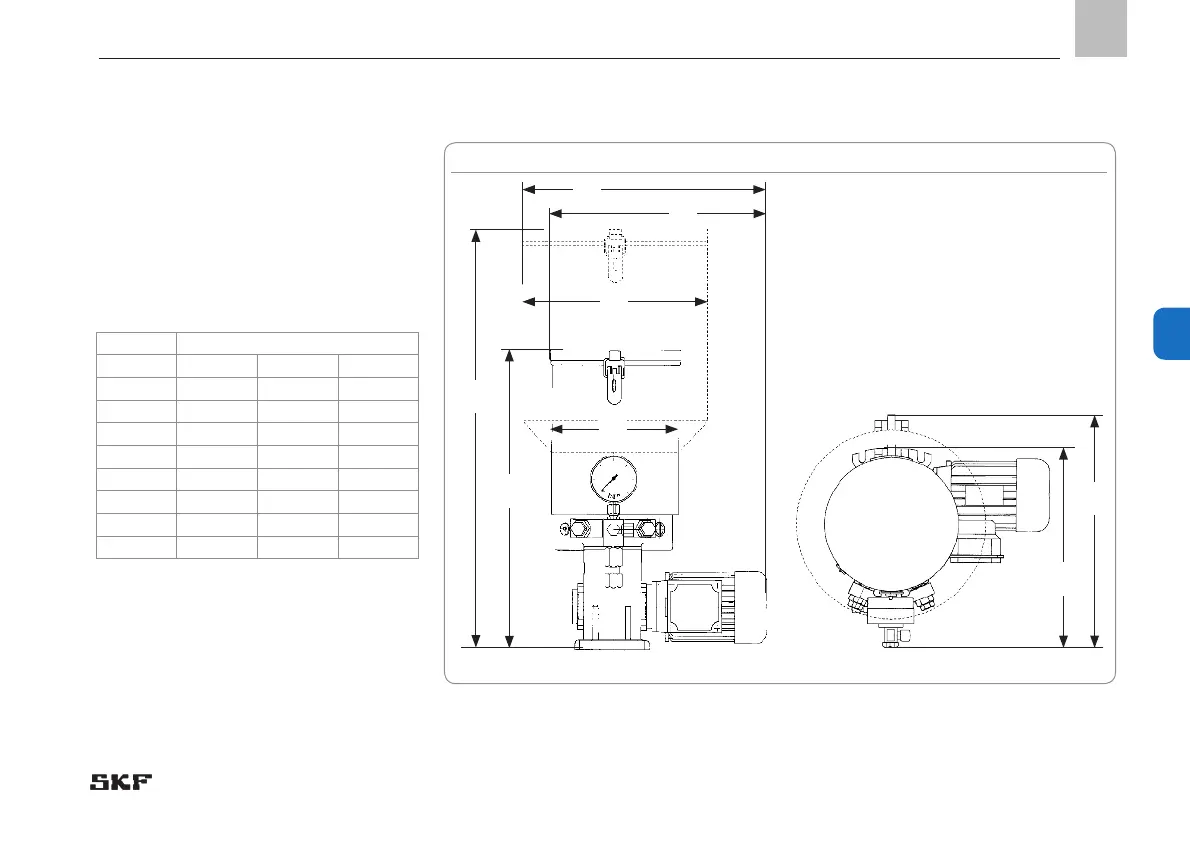

Minimum assembly dimensions Fig. 5
H2
H1
B2
B1
T2
T1
6.3 Mechanical connection
6.3.1 Minimum assembly dimensions
Ensure sufficient space for maintenance
work or for a possible disassembly of the
product by leaving a free space of at least
100 mm into each direction in addition to
the stated dimensions.
Pump version
E V F
H1 (10L) 514
#
513
#
514
#
H2 (30L) 754
#
754
#
754
#
B1 (10L) 380* 380* 380*
B2 (30L) 440* 440* 440*
T1 (10L) 280 343 330
T2 (30L) 330 390 377
D1 (10L)
Ø 220 Ø 220 Ø 220
D2 (30L)
Ø 324 Ø 324 Ø 324
* additional free space requirement, distance
to the air inlet of the motor = + 40 mm
#
additional free space requirement to open
the housing lid
30 L reservoir = + 170 mm
10 L reservoir = + 110 mm
