SKF LINCOLN ZPU 01 Version E - Bridge Assy. for Version F with One Pump Element; Closure Screw for Pump Version E; Ultrasonic Sensor

EN

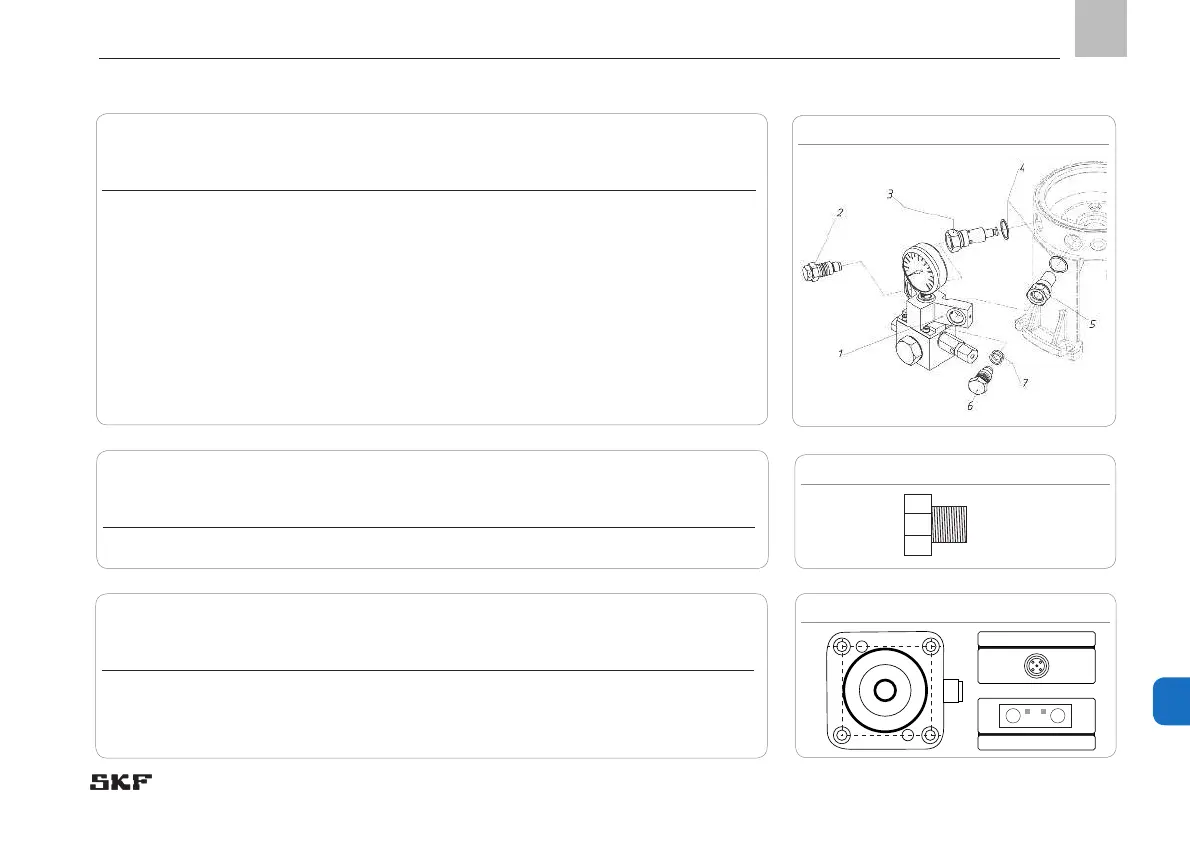

14. Spare parts
14
- 53 -
951-171-016
Version 03
14.10 Closure screw for pump version E
Designation Qty. Part number
Closure screw for pump element 1 303-17431-1
Fig. 21
14.9 Bridge assy. for version F with one pump element
Designation Qty. Part number
Bridge assy. for version F with one pump element 350 bar
Bridge assy. for version F with one pump element 400 bar
Consisting of:
Item 1 Bridge with filter block and pressure gauge
Item 2 Valve assy.
Item 3 Pump cylinder assy.
Item 4 Sealing ring (2x)
Item 5 Blind cylinder
Item 6 Locking screw
Item 7 O-ring (2x)
1 600-26787-1
1
1
1
1
2
1
1
2
600-77912-1
Fig. 22
14.11 Ultrasonic sensor
Designation Stk. Sachnummer
Ultrasonic sensor for reservoir size 10 L 1 664-85313-8
Ultrasonic sensor for reservoir size 30 L 1 664-85313-9
Fig. 23
T1
T2
D1 D2
