CONTROLS, INSTRUMENTS AND EQUIPMENT
Passenger Seat Installation
1. Place the passenger seat facing for-
ward on the storage compartment
lid.
2. Slightly incline the passenger seat
towards front and engage both seat
hooks in the storage compartment
lid slots.

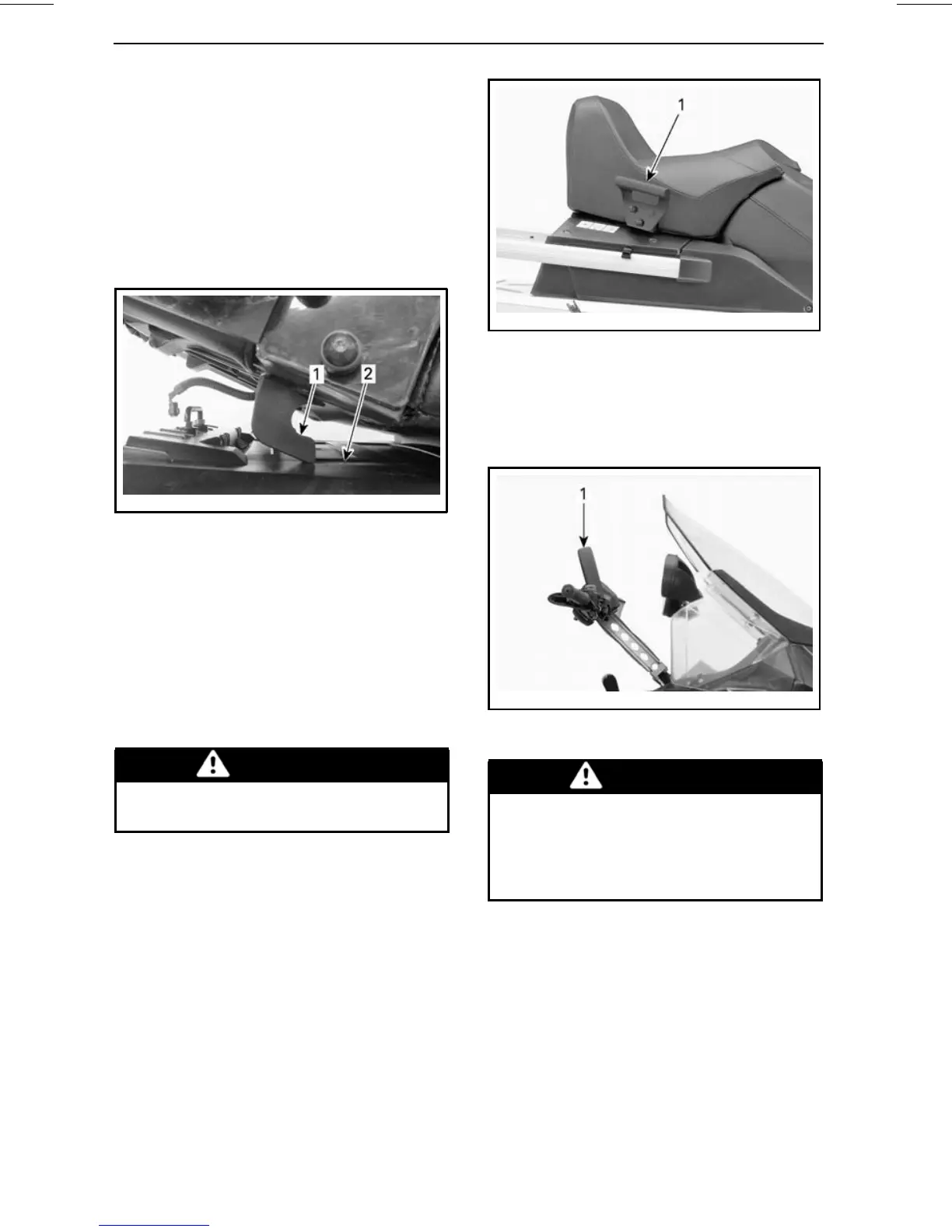

mmo2009-004-018_a
1. Seat hook
2. Slot
3. Push the passenger seat towards
the driver's seat and firmly push the
rearportiondowntolockthepas-
senger seat in position.
NOTE: A distinctive snap will be felt.
Double check that the seat is secure by
giving it a tug to confirm proper latch-
ing.
WARNING
Make sure seat is securely latched
before riding.
14) Passengers Handholds
Fixed handholds on each side of the
passenger seat.
mmo2011-007-007_b
1. Passenger handhold
15) Mountain Strap
Mountain strap provides a grip for the
driver when side-hilling.
mmo2009-004-023_a
TYPICAL
1. Mountain strap
WARNING
This strap is not for towing, lift-
ing or other purpose than tempo-
rary use as a grab handle during
side-hilling. Always keep at least
one hand on handlebar.
16) Operator's Guide
The Operator's Guide is located in the
storage compartment.
17) Storage Compartment
The storage compartment is located
behind the driver's seat.
40
