MAINTENANCE PROCEDURES

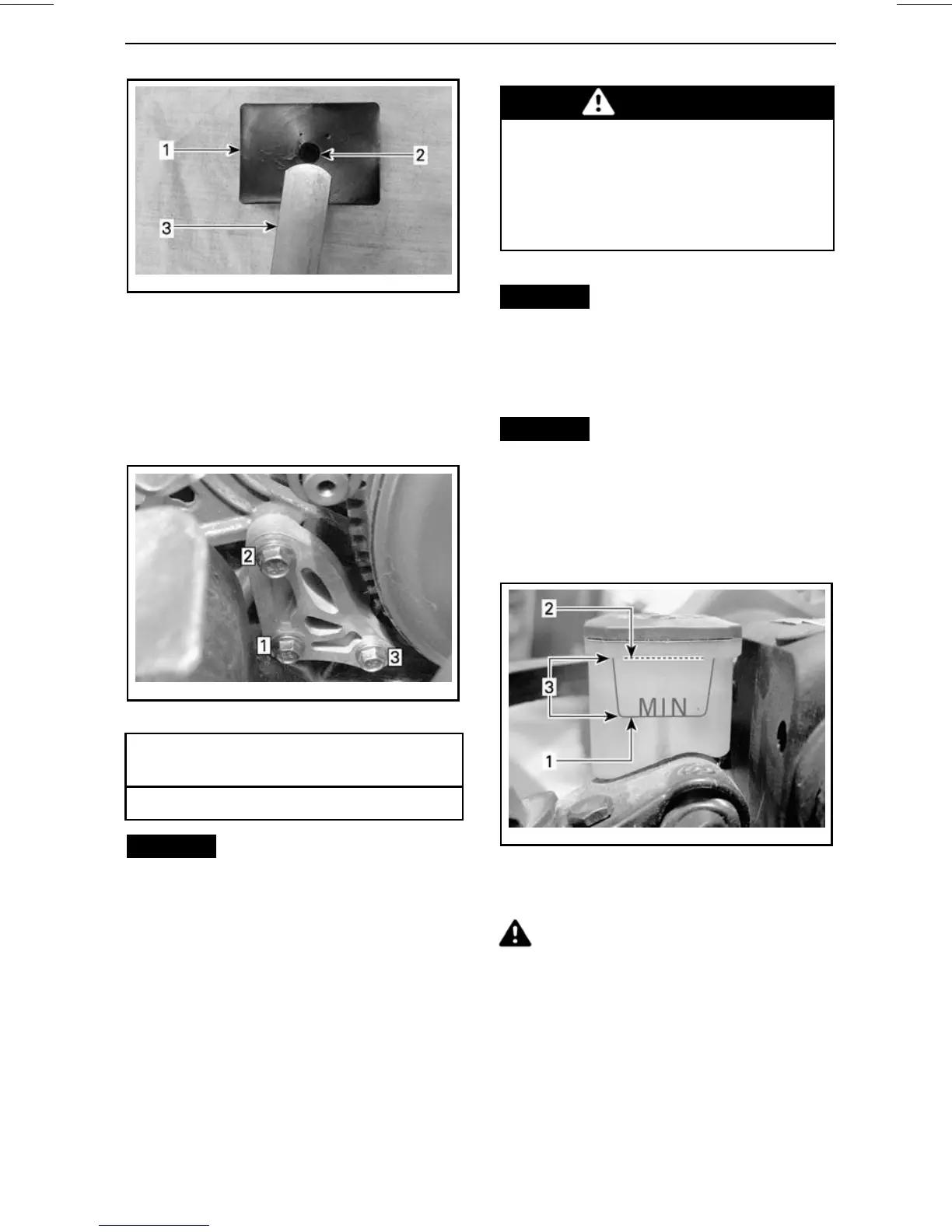

mmo2010-009-002_a
1. Rubber stop block
2. Bump
3. Feeler gauge
7. Tighten screws to the specified
torque, following the illustrated se-
quence. Take care not to pinch the
feeler gauge.
mmo2010-009-007_b
TIGHTENING SEQUENCE
STOPPER SCREW TIGHTENING
TORQUE
10N•m ± 2N•m (89lbf•in ± 18 lbf•in)
NOTICE
Serious pulley damage
can occur if the engine stopper and
its screws are not properly installed.
Brake Fluid
Recommended Fluid
Use only DOT 4 brake fluid from a
sealed container. An opened container
may be contaminated or may have ab-
sorbed moisture from the air.
WARNING
UseonlyDOT4brakefluidfroma
sealed container. To avoid serious
damage to the braking system, do
not use fluids other than the rec-
ommended one, nor mix different
fluids for topping up.
NOTICE
Brake fluid can damage
painted and plastic parts. Handle
with care. Rinse thoroughly in case
of spillage.
Brake Fluid Level Verification
NOTICE
Vehicle must be on a level
surface before checking any fluid
levels.
Checkbrakefluidinreservoirfor proper
level. Add recommended brake fluid
as required.
mmo2008-008-018_a
1. Minimum
2. Maximum
3. Operating range
CAUTION Avoid getting brake
fluidonskinoreyes-itmaycause
severe burns. In case of contact
skin, wash thoroughly. In case of
contact with the eyes, immediately
rinse with plenty of water for at least
10 minutes and then consult a doc-
tor immediately.
