CONTROLS, INSTRUMENTS AND EQUIPMENT
WARNING
The storage compartment must be
properlylatched and must not con-
tain any sharp, heavy or breakable
objects.

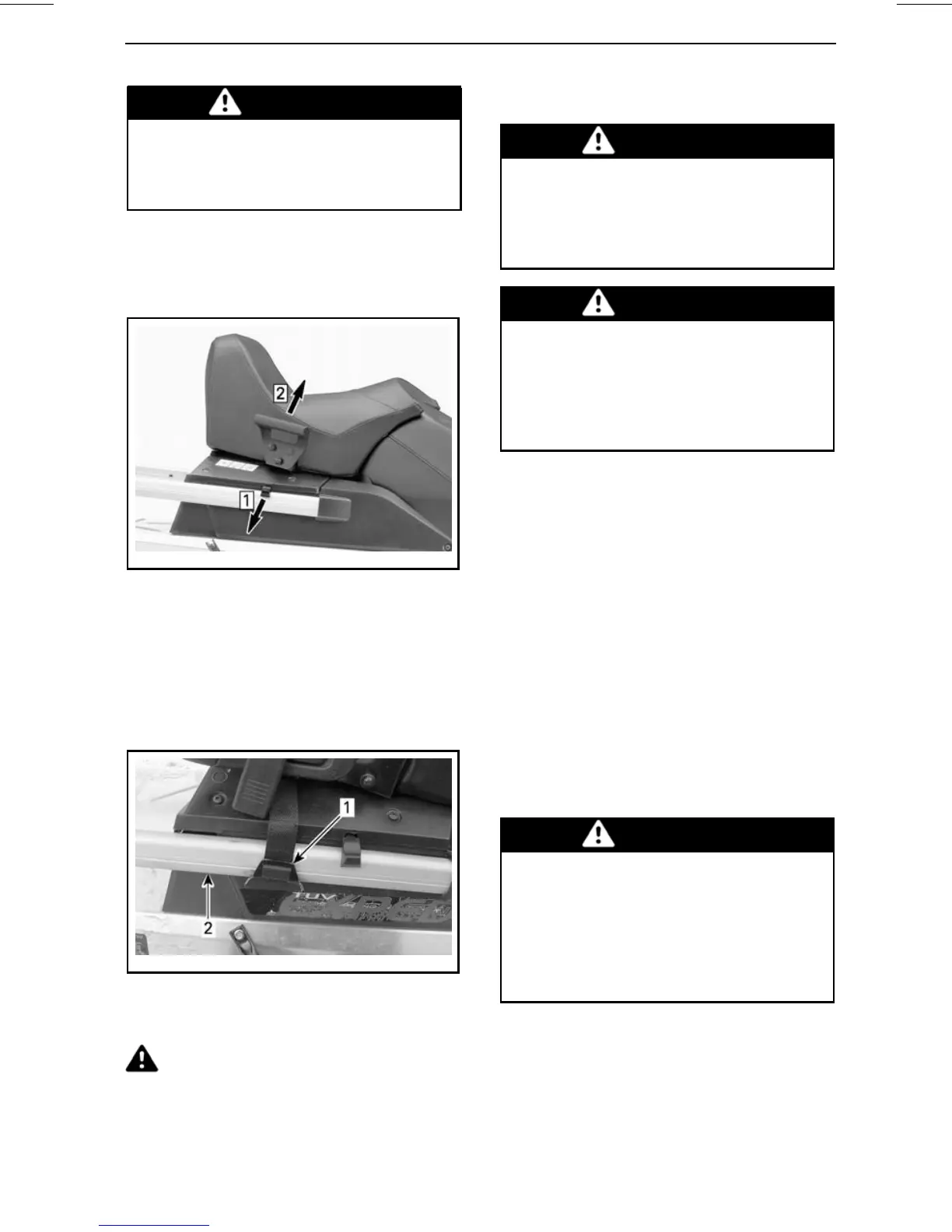

To open the lid, pull and hold the rubber
tab sideways, then lift the RH side of
the lid or passenger seat if installed.
mmo2011-007-007_a
Step 1: Pull rubber tab
Step 2: Lift RH side
To close lid, simply push it down until it
latches.
In addition, when passenger seat is in-
stalled, hook the retaining strap to the
rear rack rail as shown.
mmo2010-002-012_a
TYPICAL
1. Retaining strap
2. Rear rack rail
CAUTION When closing lid
with the passenger seat installed,
secure with the retaining strap.
18) Rear Rack
WARNING
All objects in rear rack must be
properly latched. Do not carry
any breakable objects. Excessive
weight in rack may reduce steering
ability.
WARNING
Always readjust suspension ac-
cording to the load. The capacity
of this rack is limited, the MAXI-
MUM cargo load is 30 kg (66 lb).
Ride at very low speed when
loaded. Avoid speed over bumps.
19) 12-VoltPower Outlet
A 12-volt power outlet is installed at
front, near steering column.
A 12-volt electric appliance may be
connected to that jack connector.
20) Hitch
Use the hitch in conjunction with a tow
bar to tow an accessory.
When attaching any accessory, always
refer to the manufacturer's recom-
mendations.
NOTE: Refer to decal on vehicle for
towing weight capacities.
WARNING
Never tow an accessory with a
rope. Always use a rigid tow bar.
Usingaropewouldresultinacol-
lision between the object and the
snowmobile and possibly in a tip
over in case of a rapid deceleration
or on a downward slope.
_______________
41
