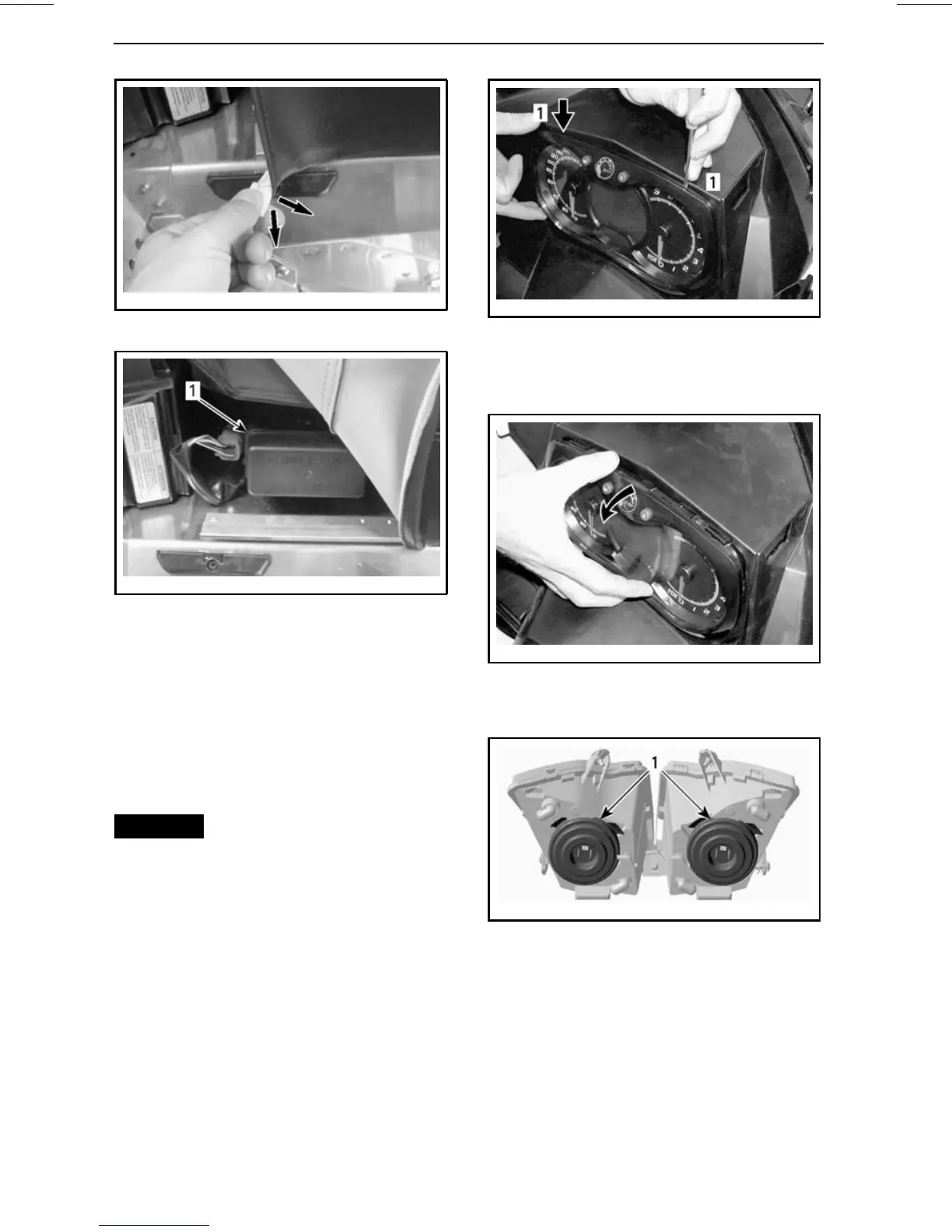

MAINTENANCE PROCEDURES
mmo2009-004-036_b
TYPICAL - PULL STRIP
mmo2009-004-037_a
1. Fuse box
Close upholstery by pushing the strip
back in the aluminium extrusion.
Lights
Always check light operation after bulb
replacement.
Headlights Bulb Replacement
NOTICE
Never touch glass portion
of an halogen bulb with bare fingers,
it shortens its operating life. If glass
is touched, clean it with isopropyl al-
cohol which will not leave a film on
the bulb.
1. By using a small screwdriver, re-
lease multifunction gauge locking
tabs.
mmo2007-009-061_a
1. Locking tab
2. Gently pull on multifunction gauge
and set aside.
mmo2007-009-062_a
3. Unplug burnt bulb connector. Re-
move the rubber boot.
mmo2007-009-022_a
1. Rubber boots
4. Press and pull both sides of the re-
tainingclipatthesametimetore-
lease it from bulb support.
80
