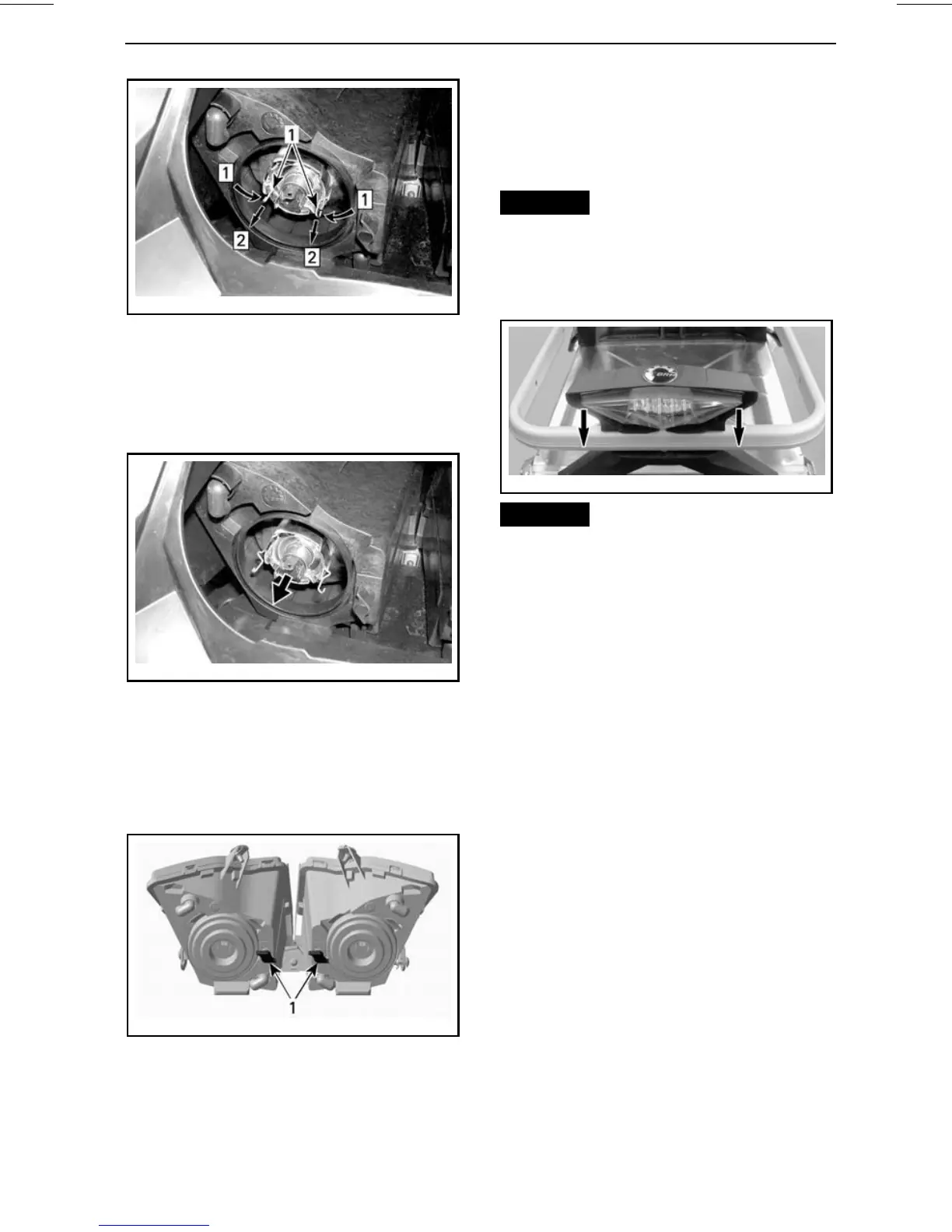

MAINTENANCE PROCEDURES
mmo2007-009-063_a
1. Retaining clip
Step 1: Push both sides
Step 2: Pull to release
5. Pull bulb and replace. Properly rein-
stall parts.
mmo2007-009-064_a
PULL BULB AND REPLACE
Headlights Beam Aiming
Remove multifunction gauge, refer to
HEADLIGHTS BULB REPLACEMENT
.
Turn knob to adjust beam height.
mmo2007-009-023_a
TYPICAL
1. Knobs
Taillight Bulb Replacement
1. Remove taillight housing by care-
fully pulling on lens at both ends
usinganequalforce.
NOTICE
If taillight housing is not
removed perpendicularly to the tail-
light holder, mounting pins may
break and taillight housing will have
to be replaced.
mmo2009-004-050_a
NOTICE
Do not pull taillight hous-
ing out too far to avoid damaging
wiring.
2. Remove lamp socket from taillight
housing.
2.1 Turn socket counterclock-
wise.
2.2 Pull socket out.
3. Replace bulb.
4. Secure socket into taillight housing.
5. Push taillight housing back in place.
