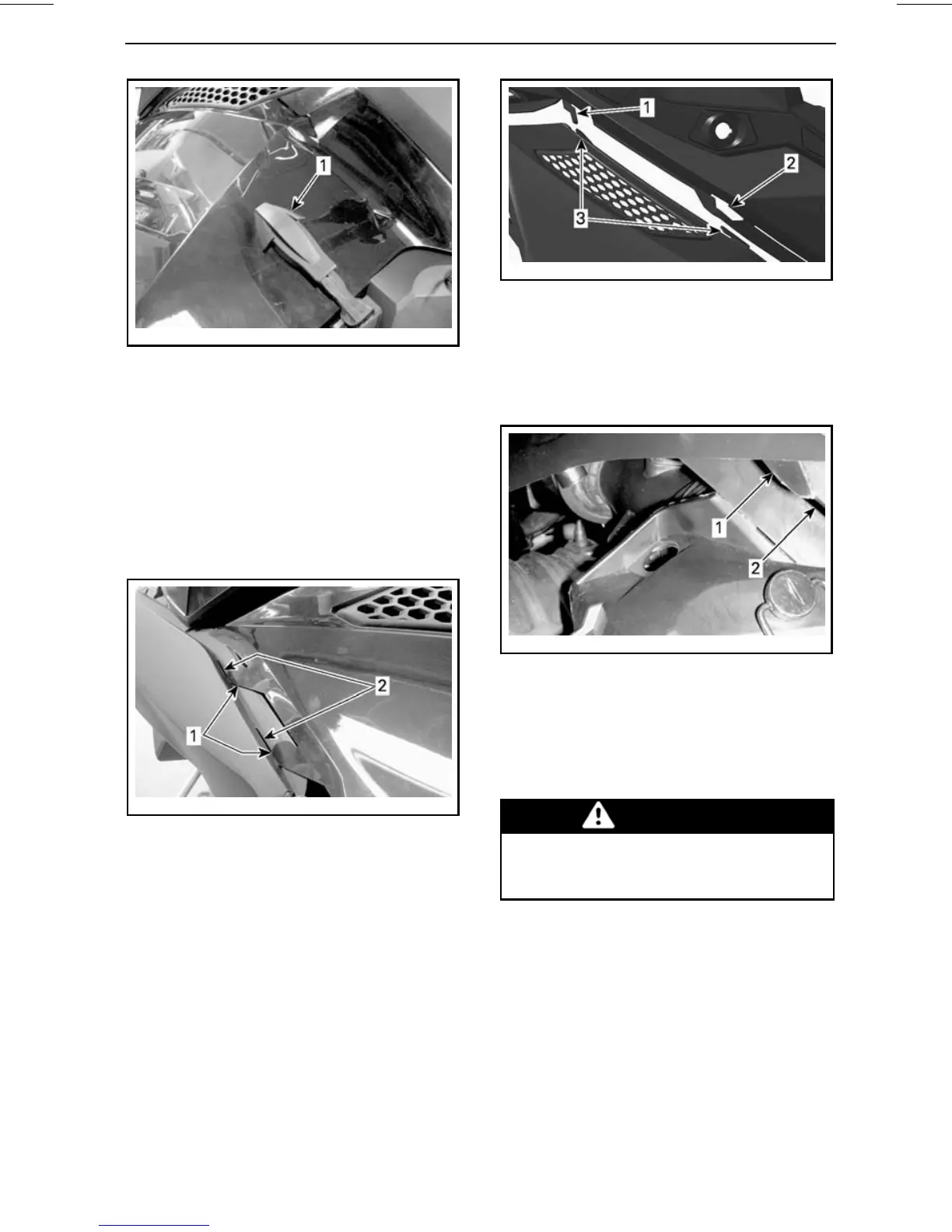

CONTROLS, INSTRUMENTS AND EQUIPMENT
mmo2009-004-040_a
TYPICAL
1. Rubber tie
2. Lift the rear portion of panel to free
the plastic tab from the console.
3. Slide panel towards rear.
Upper Side Panel Installation
1. Insert the panel lower tabs into the
bottom pan slots.
mmo2009-004-042_a
TYPICAL
1. Panel lower tabs
2. Bottom pan slots
2. Hook the panel top center tabs to
the console.
mmo2011-006-100_a
TYPICAL
1. Console hook
2. Console slot
3. Panel center tabs
3. Insert the rear tab into the console
slot.
mmo2009-004-041_a
TYPICAL
1. Rear tab
2. Console slot
4. Hook rubber tie.
23) Lower Side Panels
WARNING
Never operate engine with side
panels opened or removed from
vehicle.
Lower Side Panel Removal
1. Remove upper side panel as ex-
plained above.
2. Turn the clip 1/4 turn count
erclock-
wise to unlock.
_______________
43
