CONTROLS, INSTRUMENTS AND EQUIPMENT

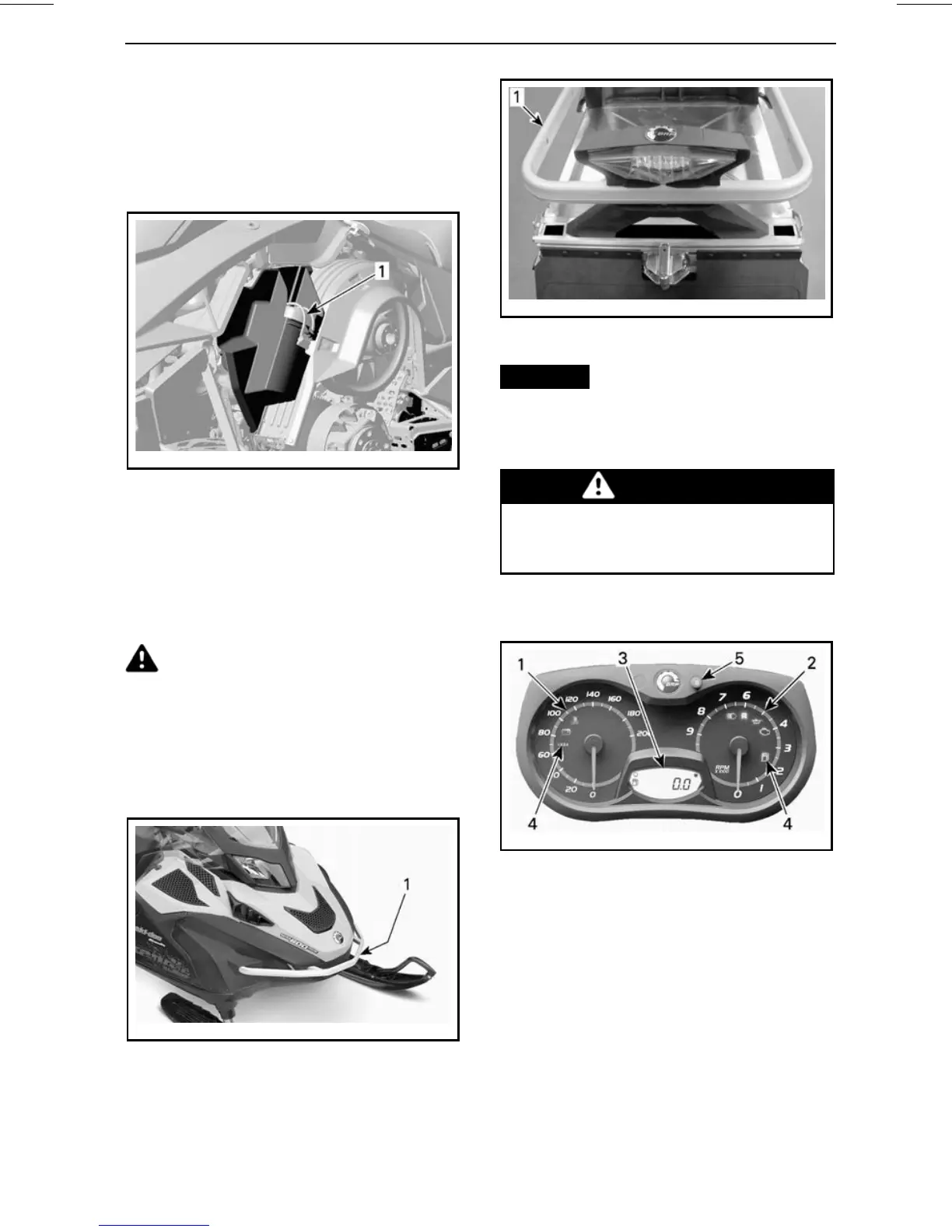

To remove the tool kit support from
the pulley guard, unlock the tab from
underneath the pulley guard and pull
the tool kit support towards front to
release it.
mmo2008-003-061_a
TYPICAL
1. Tool kit
11) Front Bumper and Rack
Rail
To be used whenever snowmobile re-
quires manual lifting.
CAUTION Use proper lifting
techniques, notably using your legs
force. Do not attempt to lift either
end of the vehicle if it is above your
limits. Use appropriate lifting de-
vice or have assistance to share lift-
ing stress if possible.
mmo2011-007-008_a
TYPICAL
1. Front bumper
mmo2009-004-013_a
TYPICAL
1. Rear rack rail
NOTICE
Do not use skis to pull or
lift snowmobile.
12) Gauge
WARNING
Never adjust or set functions on
the multifunction gauge while rid-
ing the vehicle.
Gauge Description
mmo2008-003-013_g
ANALOG/DIGITAL GAUGE (STANDARD)
1. Speedometer
2. Tachometer (RPM)
3. Gauge digital display
4. Gauge pilot lamps
5. Gauge SET “S” button
NOTE: The gauge is factory preset
in Imperial units but it is possible to
change it to metric units, contact an
authorized Ski-Doo dealer for unit set-
tings.
