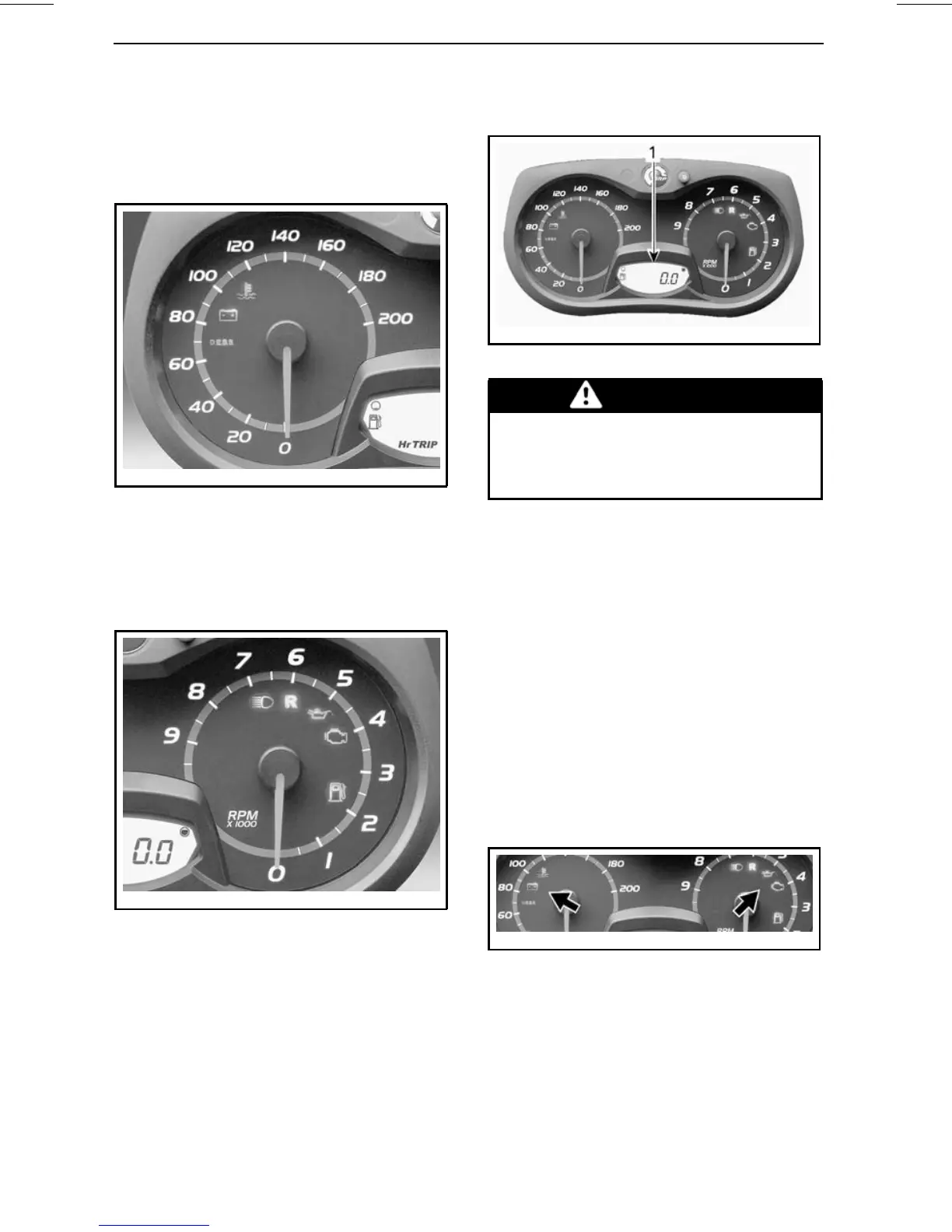

CONTROLS, INSTRUMENTS AND EQUIPMENT
1) Speedometer
Measures vehicle speed (in miles per
hour or kilometers per hour depending
on the setting).
mmo2008-003-014
LH PORTION OF GAUGE
2) Tachometer (RPM)
Measures engine revolution per
minute (RPM). Multiply by 1000 to ob-
tain the actual revolutions.
mmo2008-003-019
RH PORTION OF GAUGE
3) Digital Display
mmo2008-003-013_h
1. Digital display
WARNING
Never adjust or set functions on
the multifunction gauge while rid-
ing the vehicle, you could lose con-
trol.
The multifunction display is used to:
– Display the WELCOME message
on power up
– Display the KEY recognition mes-
sage
– Provide various indications as se-
lected by the operator
– Activating or changing various func-
tions or modes of operation
– Display scrolling messages of func-
tion activation or system faults
– Display fault codes.
4) Pilot Lamps and Messages
mmo2008-003-024_a
TYPICAL — PILOT LAMPS
36
