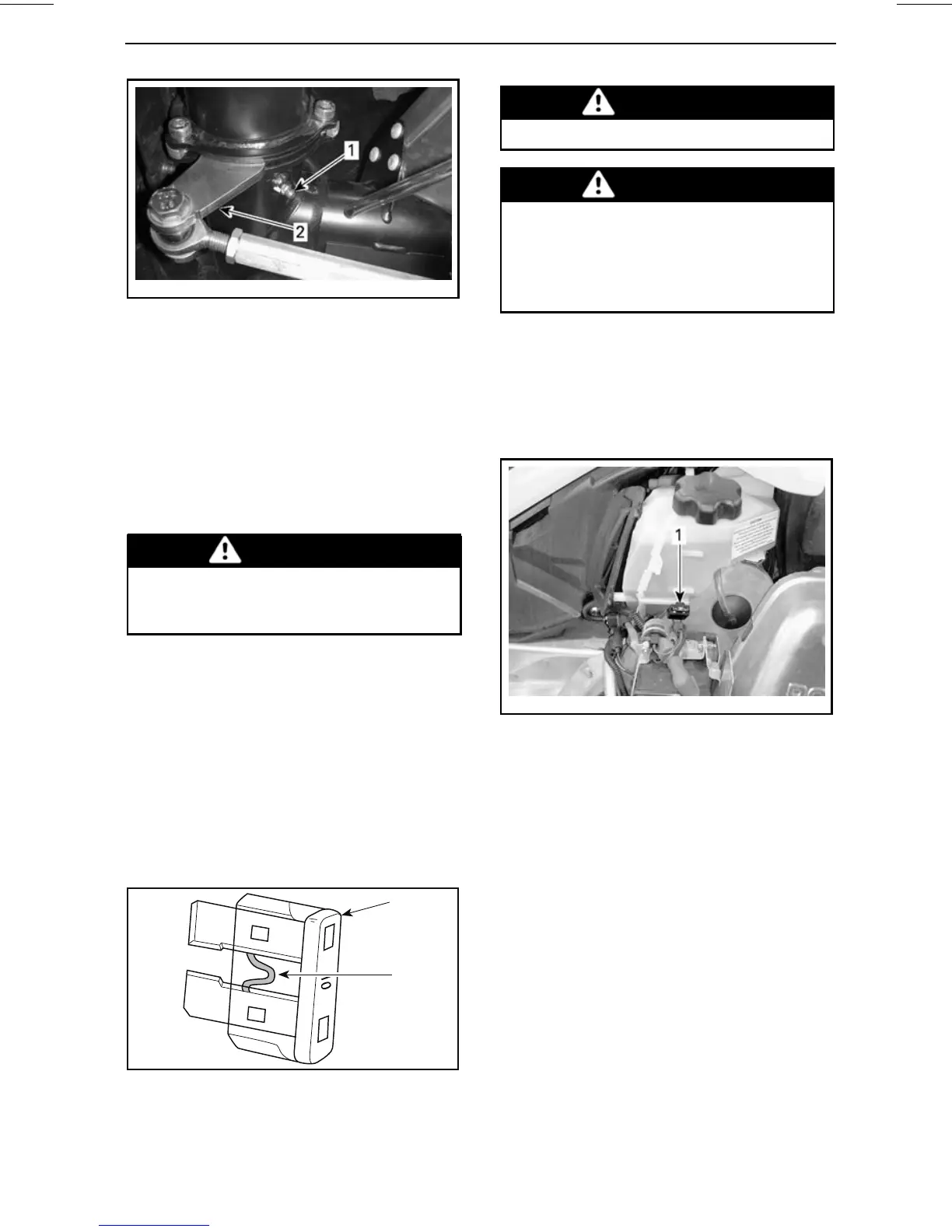

MAINTENANCE PROCEDURES
mmo2010-007-014_a
LH SIDE SHOWN
1. Grease fitting
2. Steering arm
Skis
Wear and Condition of Skis and
Runners
Check the condition of the skis and ski
runner carbides. If worn, contact an
authorized Ski-Doo dealer.
WARNING
Excessively worn skis and/or ski
runnerswilladversely affectsnow-
mobile control.
Fuses
Fuse Inspection
The electrical system is protected with
fuses.
Check fuse condition and replace it if
necessary.
To remove fuse from holder, pull fuse
out. Check if filament is melted.
1
2
A15E0KA
1. Fuse
2. Check if melted
WARNING
Do not use a higher rated fuse.
WARNING
If fuse has burnt out, source of mal-
function should be determined
and corrected before restarting.
See an authorized Ski-Doo dealer
for servicing.
Fuse Location
550F
The main fuse (20A) is located on the
oil reservoir.
mmo2010-004-011_b
1. Main fuse 20A
Other Models
The fuse box is located behind the front
seat upholstery at the LH front lower
portion of seat.
Refer to the decal inside the fuse box
cover or the
SPECIFICATIONS
subsec-
tion for fuse identification.
To access the fuse box, carefully pull
seat upholstery out of the aluminum
extrusion by pulling the plastic strip
downwards and sideways at the same
time.
_______________
79
