CONTROLS, INSTRUMENTS AND EQUIPMENT
Lift rear portion of drive belt guard,
then release from front tabs by pivot-
ing the guard outwards.

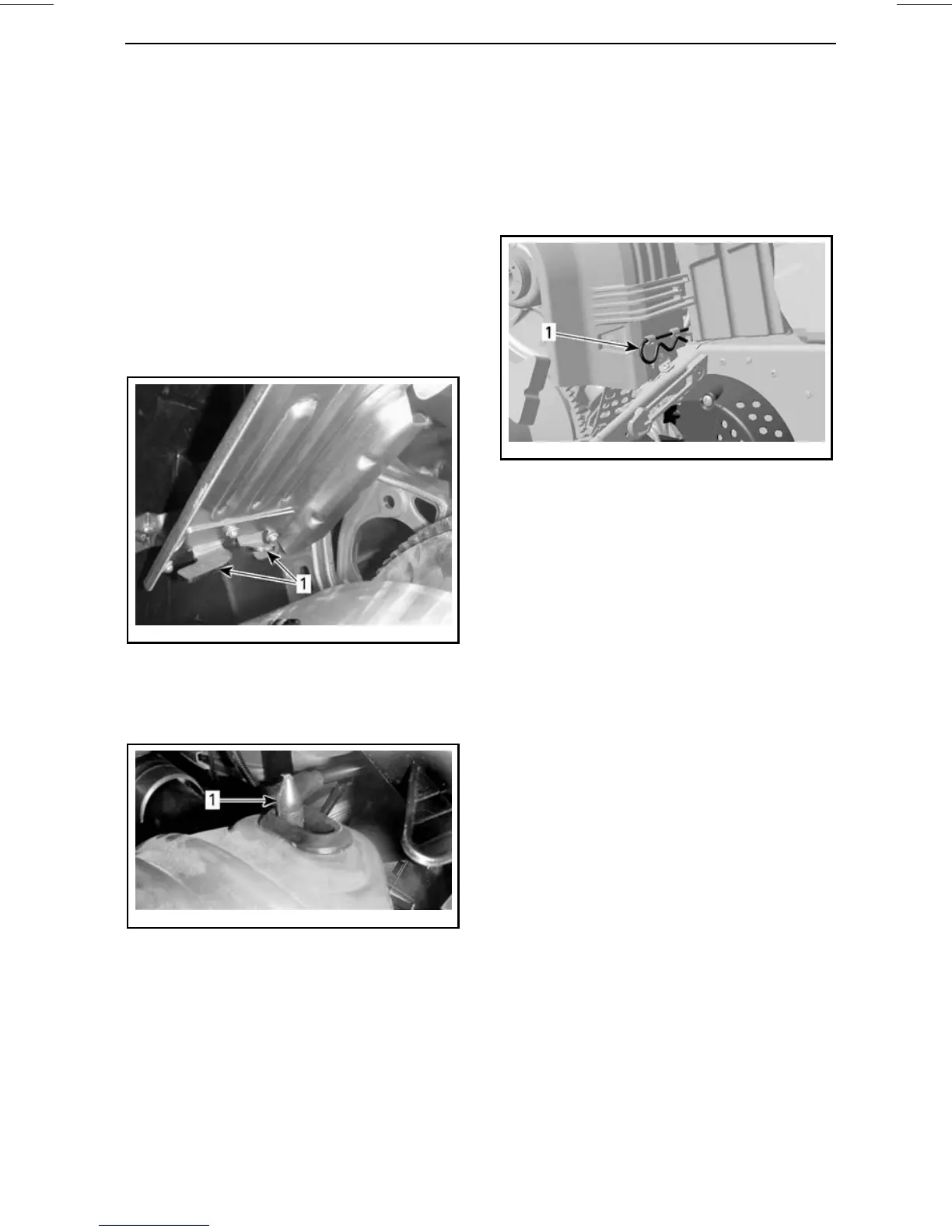

Drive Belt Guard Installation
When reinstalling drive belt guard,
position its cutaway toward front of
snowmobile.
Place the front LH slot of the drive belt
guard over the longest tab.
Pivottheguardinwardtoengagethe
shortest tab in the RH slot.
mmo2009-003-010_a
1. Tabs
Position the grommet over the retain-
ing rod.
mmo2009-003-011_a
1. Retaining rod
Position rear portion of the drive bel
t
guard over the retainer and secure it
using the retaining pin.
NOTE: Drive belt guard is purposely
made slightly oversize to maintain ten-
sion on its pins and retainers prevent-
ing undue noise and vibration. It is im-
portant that this tension be maintained
when reinstalling.
mmo2008-003-063_a
1. Retaining pin
_______________
45
