Section 5 – Procedures Base

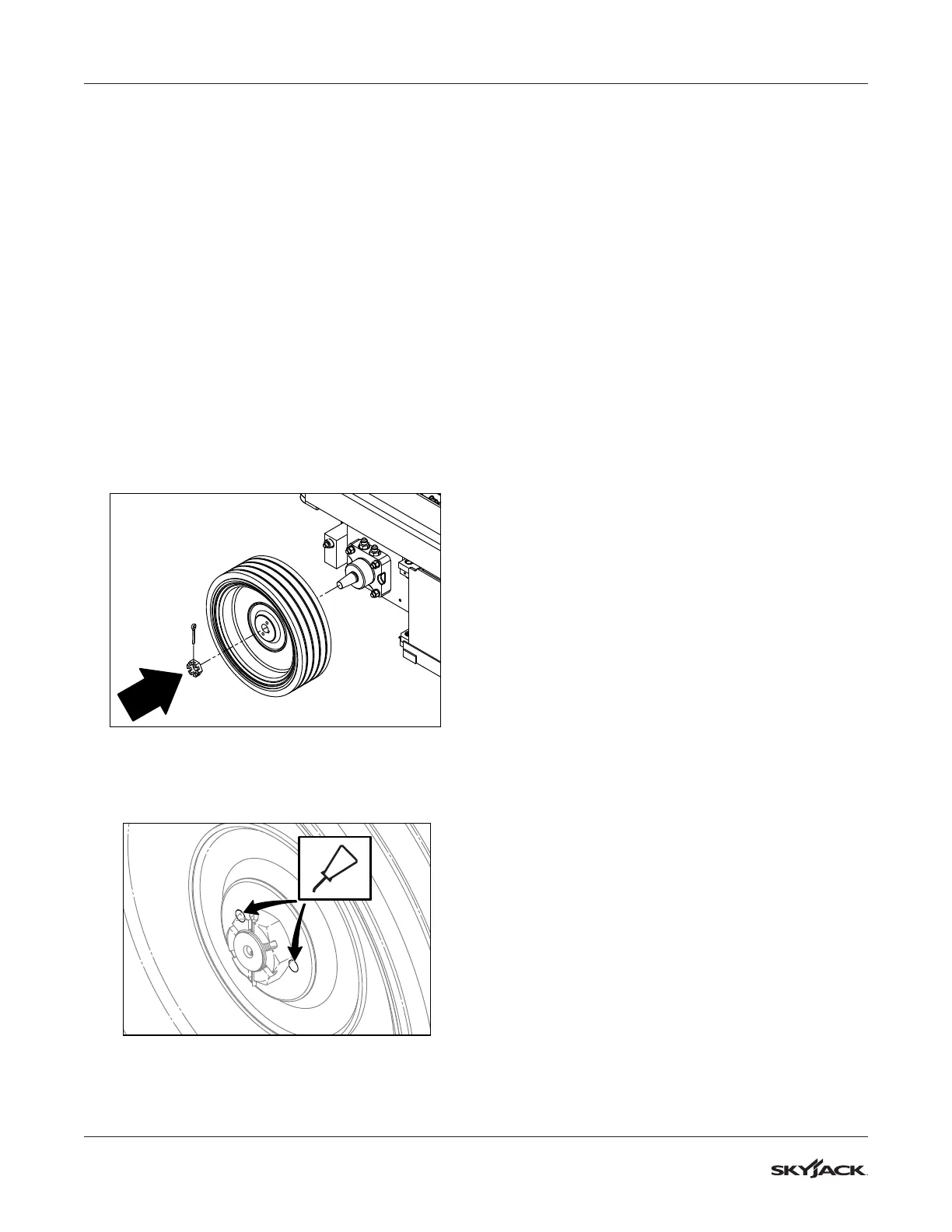

Rear Integrated Hub Wheel Installation
1. Install the hub/integrated hub wheel onto the
spindle.
2. Install a 1” castle nut onto the brake.
3. Tighten the castle nut to 95 Nm (70 ft-lb) and
insert the 1/8” x 1-1/2” cotter pin.
4. If the holes do not align to install the cotter pin,
continue to torque the castle nut clockwise until
the next hole is visible.
5. Make sure the cotter pin is pushed in completely.
6. Bend the ends of the cotter pin to secure the
castle nut.
7. To limit rust bleed, it is recommended that a
few drops of grease be applied to the two small
tapped holes on the rear wheels.
