Skyjack SJ4732 - Base to Platform Control Cable

62
SJ3220, SJ3226, SJ4720, SJ4726, SJ4732223198ABA

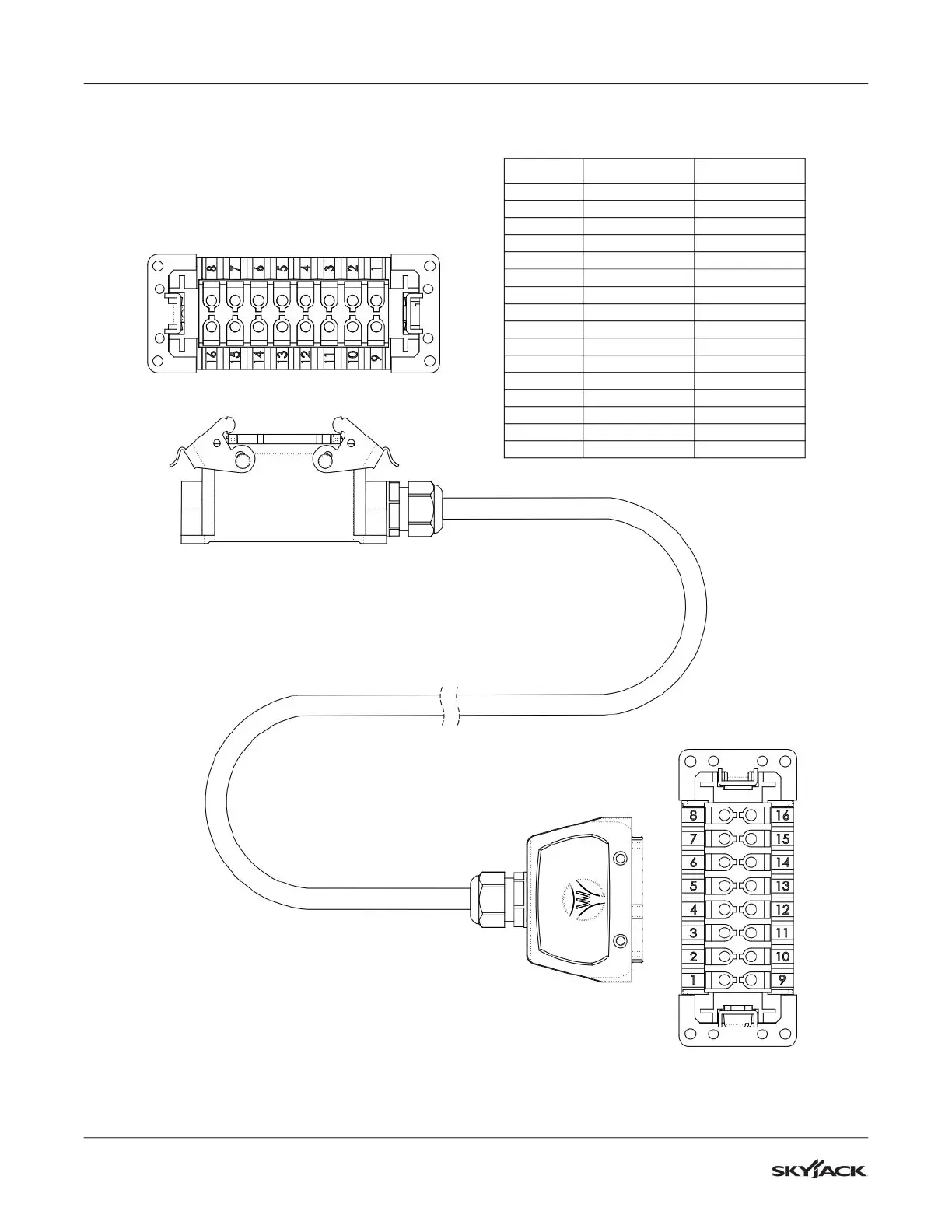

Section 3 – System Component Identication and Schematics Base to Platform Control Cable
3.16 Base to Platform Control Cable
M211921AB
CAVITY NO. COLOUR CIRCUIT NO.
1 WHITE
00
2
BLUE
12
3 ORANGE 09
4 BLACK 08A
5 RED
07
6 BLUE/WHITE 08
7
GREEN/WHITE 49
8 GREEN 08B
9 NOT USED
10 WHITE/BLACK 00B
11
RED/BLACK 18
12 ORANGE/BLACK 59
13 GREEN/BLACK
-
14 BLUE/BLACK 24
15
BLACK/WHITE 23
16 RED/WHITE 60
