Limit Switch Wiring - Anti-Overrising Posts (KC Only) Section 3 – System Component Identication and Schematics
3.21 Limit Switch Wiring - Anti-Overrising Posts (KC Only)
M208038AA_M220080AA

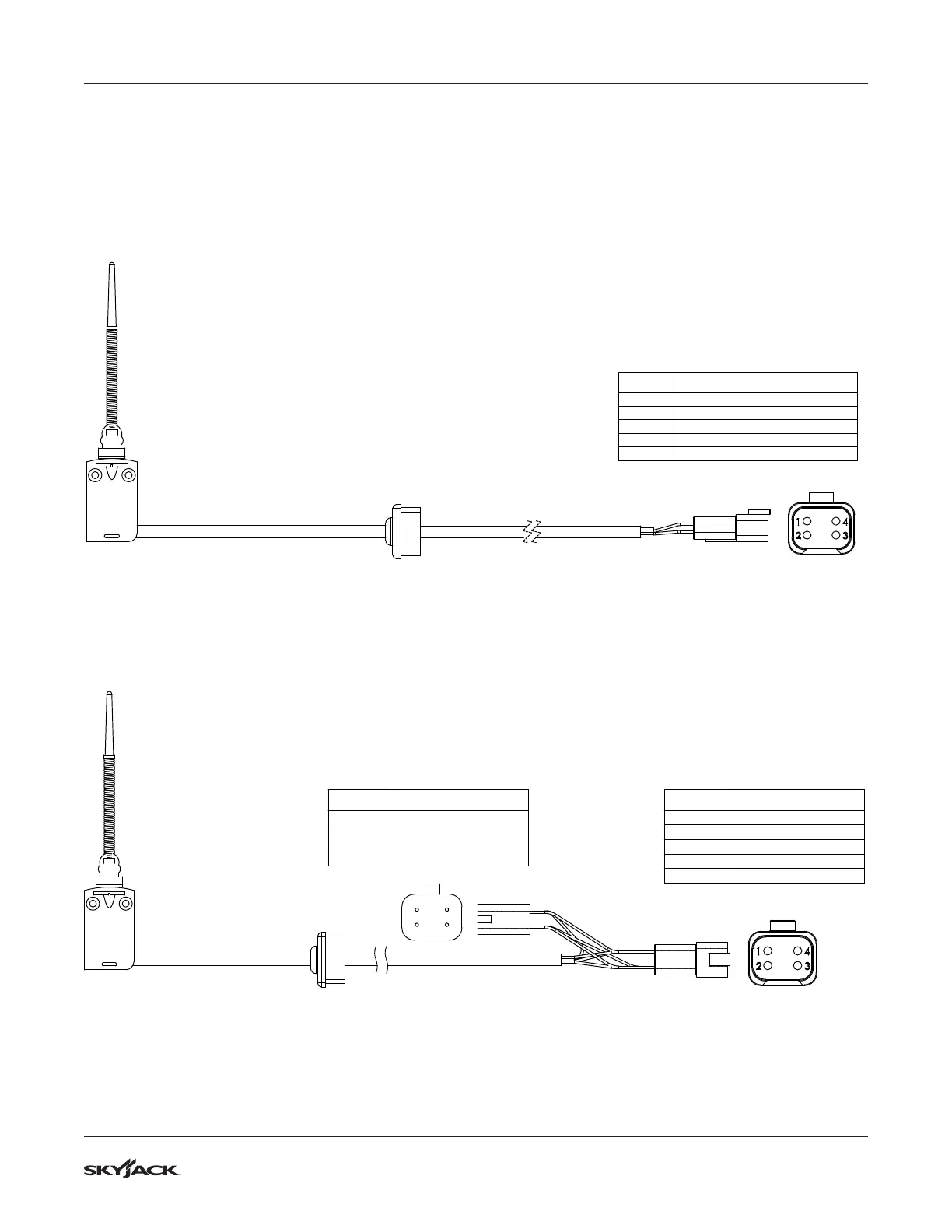

Anti-Overrising Posts Limit Switches
Anti-Overrising Posts Limit Switches - Add 2 Posts
CAVITY COLOUR
1
BROWN
2 BLACK
3
BLUE
4 BLACK/WHITE
YELLOW/GREEN (CUT OFF)
CAVITY COLOUR
1
GREEN
2 BLACK/WHITE
3
WHITE
4
RED
YELLOW/GREEN (CUT OFF)
CAVITY COLOUR
1
GREEN
2 BLACK
3
WHITE
4
RED
3
4
1
2
