Drive Manifold MB2 - SJ4720/26/32 (CE, AS & KC) Section 3 – System Component Identication and Schematics

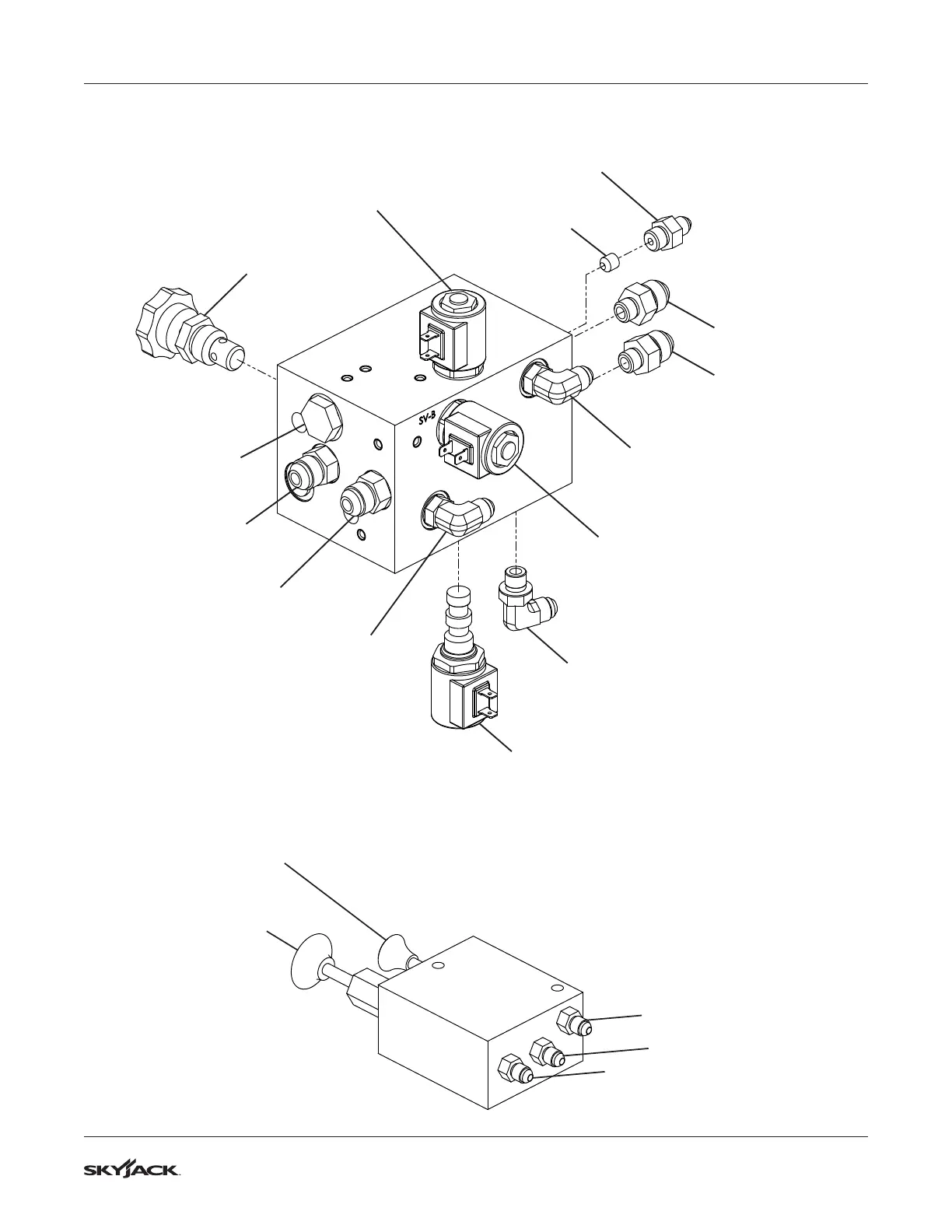

3.8 Drive Manifold MB2 - SJ4720/26/32 (CE, AS & KC)
To Right Brake Port
To Left Brake Port
BRP
To Drive Manifold
V1
Auto Reset
Brake Override
P2
Brake Release
Hand Pump
4H-16
To Main Manifold
4H-15
To Main Manifold
To Right Motor B
To Right Motor A
FD1
Flow Divider
Valve
V2
Free-wheeling
Valve
Orifice
BRK
To Main Manifold
BRP
To Brake Release
Manifold
To Left Motor B
To Left Motor A
DV
Differential Valve
2H-18A
SV-A
Speed Valve A
3H-18A-1
SV-B
Speed Valve B
3H-18A-2
3.9 Brake Manifold MB6 - SJ4720/26/32 (CE, AS & KC)
M196578AD_DriveMan, M196578AD_BrakeMan
