Scissors Inspection Section 1 – Scheduled Maintenance

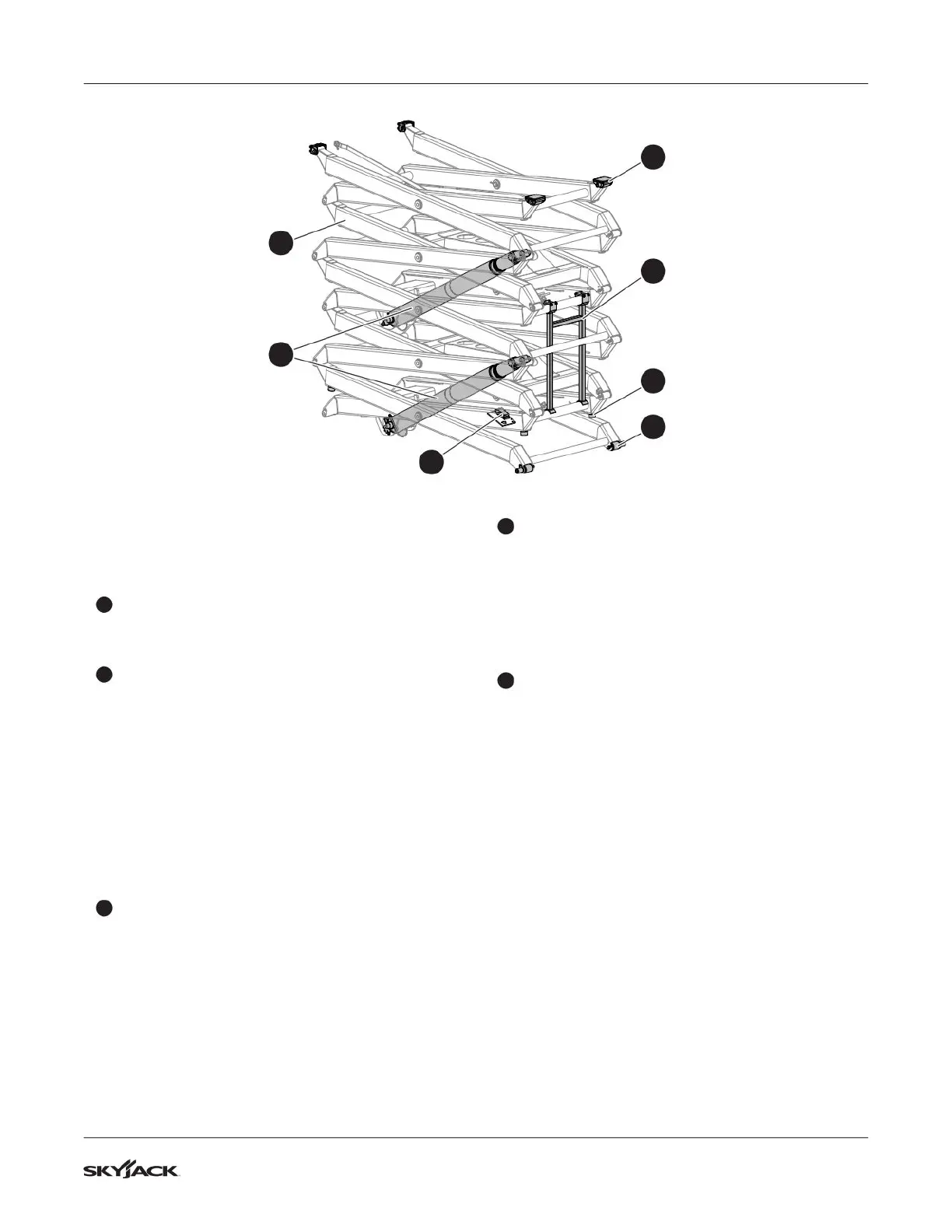

1.7 Scissors Inspection
1. Raise the platform and deploy the maintenance
supports.
1
Maintenance supports (B)
▪
Make sure that the maintenance supports are
correctly attached and show no visible damage.
2
Scissor assembly and bumpers (B)
▪
Make sure that the scissor assembly shows no
signs of visible damage, deformation, or cracks in
the weldments.
▪
Make sure all the pins and fasteners are correctly
installed.
▪
Make sure that the cables and wires have the
correct routing, and show no signs of wear and/or
physical damage.
▪
Make sure that the bumpers are correctly
attached and have no visible damage.
3
Sliders and rollers (B)
▪
Make sure that the sliders and rollers on the left
and right side of the MEWP are correctly attached.
▪
Make sure there is no visible damage.
▪
Make sure there is no dirt or blockages in the
slider’s and roller’s travel paths.
4
Lift cylinders (B)
▪
Make sure that the lift cylinders are correctly
installed.
▪
Make sure there are no loose or missing
fasteners.
▪
Make sure there is no indication of leaks or
damage.
5
Angle transducer (B)
▪
Make sure that the angle transducer is correctly
attached.
2. Fully lower the platform.
3
4
2
1
3
3
5
