3.23 Electrical Harnesses

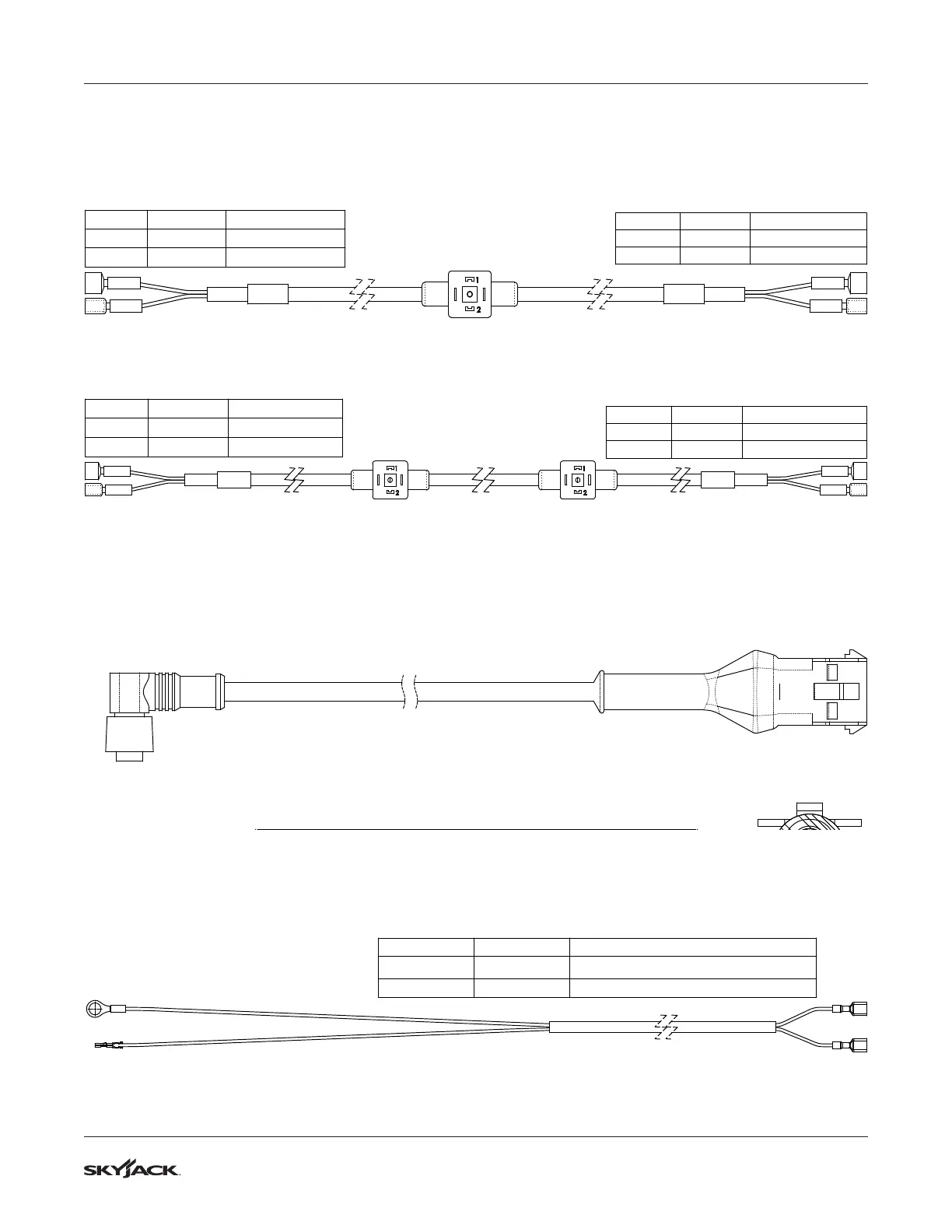

Holding Valve Harness
Dual Holding Valve Harness
LABEL TERMINAL
COLOUR
13
1
BLACK (+12 VDC)
00C 2
WHITE (GND)
LABEL TERMINAL
COLOUR
13
1
BLACK (+12 VDC)
00D 2
WHITE (GND)
LABEL TERMINAL
COLOUR
13
1
BLACK (+12 VDC)
00C 2
WHITE (GND)
LABEL TERMINAL
COLOUR
13
1
BLACK (+12 VDC)
00D 2
WHITE (GND)
Pressure Transducer Harness
3
Prop Lowering Valve Harness (CE Only)
CIRCUIT #
COLOR DESCRIPTION
00
WHITE
GROUND
13C BLACK +24 VDC PROP. LOWER
