Skyjack SJ4732 - Emergency Lowering Switch Wiring

65
SJ3220, SJ3226, SJ4720, SJ4726, SJ4732 223198ABA
Emergency Lowering Switch Wiring Section 3 – System Component Identication and Schematics

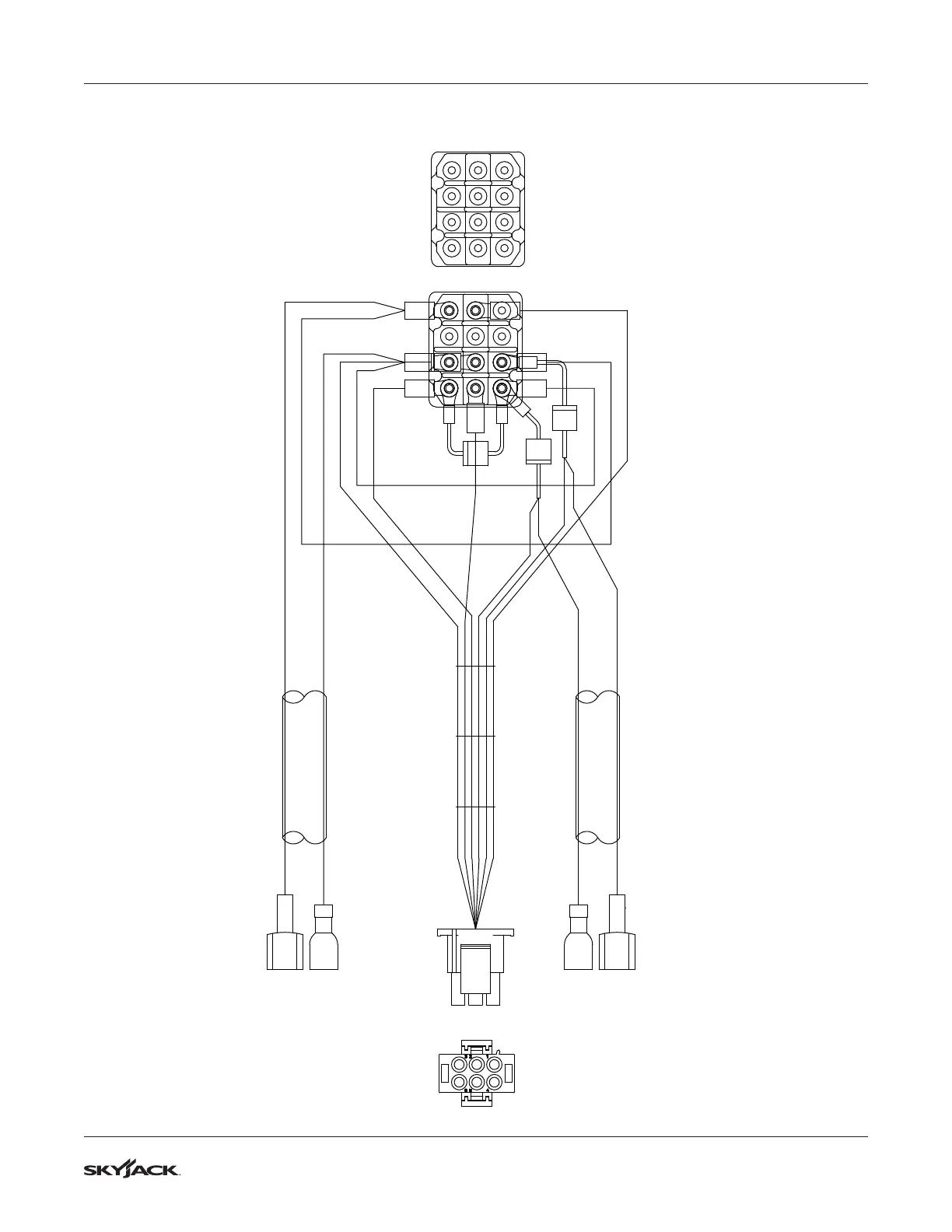

3.19 Emergency Lowering Switch Wiring
10 11 12
7 8 9
4 5 6
1 2 3
05
TO HOLDING VALVE SOLENOID
2H-13-2
SWITCH S51
EMERGENCY LOWERING
PIN 1 - 13B (ORANGE)
PIN 2 - 05 (PURPLE/BLACK)
PIN 3 - 13 (ORANGE)
PIN 4 - 13 (ORANGE)
PIN 5 - 98B (WHITE)
PIN 6 - 00D (WHITE)
PIN 7 - N/U
PIN 8 - N/U
PIN 9 - N/U
PIN 10 - 00D (WHITE)
PIN 11 - 00 (WHITE)
PIN 12 - N/U
D13-1
D13-2
13
D00C
00C
1
2
3
6
5
4
10 11 12
7 8 9
4 5 6
1 2 3
TO MAIN HARNESS
PIN 1 - 05 (PURPLE/BLACK)
PIN 2 - 98B (WHITE)
PIN 3 - 13B (ORANGE)
PIN 4 - 13 (ORANGE)
PIN 5 - 00C (WHITE)
PIN 6 - 00 (WHITE)
00D
00D
00D
13
13
13
00
98B
J9
13B
YELLOW
BLUE
TO HOLDING VALVE SOLENOID
2H-13-1
M212536AE
