Skyjack SJ4732 - Main Manifold MB1

A B C D E F G H
V
Z
Y
X
W
75
SJ3220, SJ3226, SJ4720, SJ4726, SJ4732223198ABA

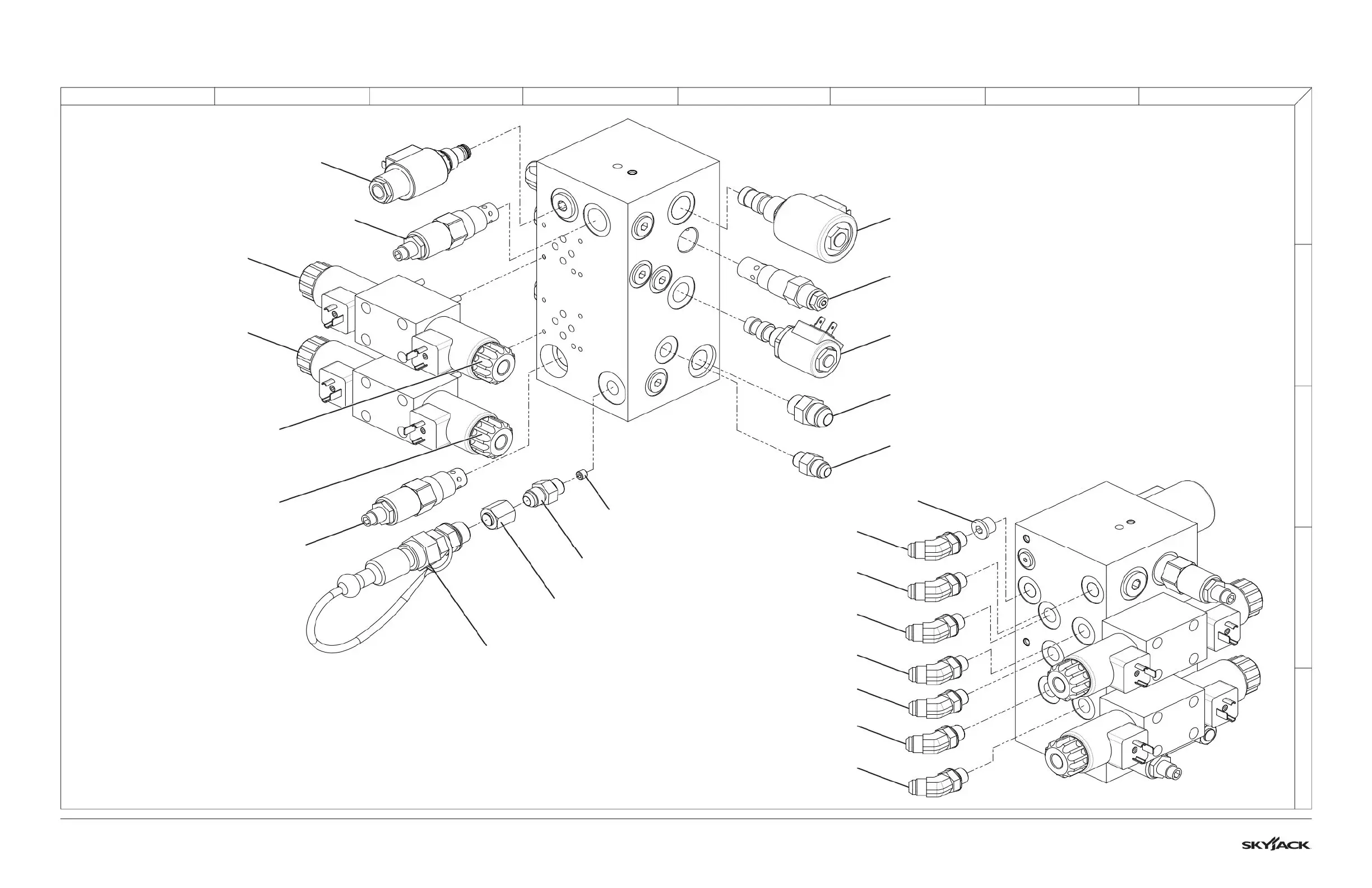

3.27 Main Manifold MB1
M228041AA_Ports
R2-LIF
T
R1-SYSTEM
Quick Disconnect
(CE/AS/KC)
R1
System Relief Valve
System Pressure Cap
(ANSI/CSA)
Orifice Plug
System Pressure
Fitting
CB1
Counter Balance Valve
3H-14
Lift Valve
To Motor/Pump
To Hydraulic Tank
3H-17A
Brake Valve
R2
Lift Relief Valve
4H-24A
Left Steer Valve
4H-16
Forward Drive Valve
4H-15
Reverse Drive Valve
4H-23A
Right Steer Valve
4H-16
3H-14
4H-24
4H-23
4H-15
4H-16
To Rear Manifold
To Lower Cylinder
Holding Valve
To Hyd. Side Motor
(CE, AS & KC)
Plug (ANSI/CSA)
BRK
To Rear Manifold
4H-15
To Rear Manifold
4H-23
To Right Steer Cylinder
4H-24
To Left Steer Cylinder
R2-LIF
T
R1-SYSTEM
2H-13C
Lower Valve (CE Only)
