Skyjack SJ51AJ Parts Manual

Articulating Boom Series
Models SJ46AJ & SJ51AJ
170947
SKYJACK, Page 15
7
1
5
2
M160707AC

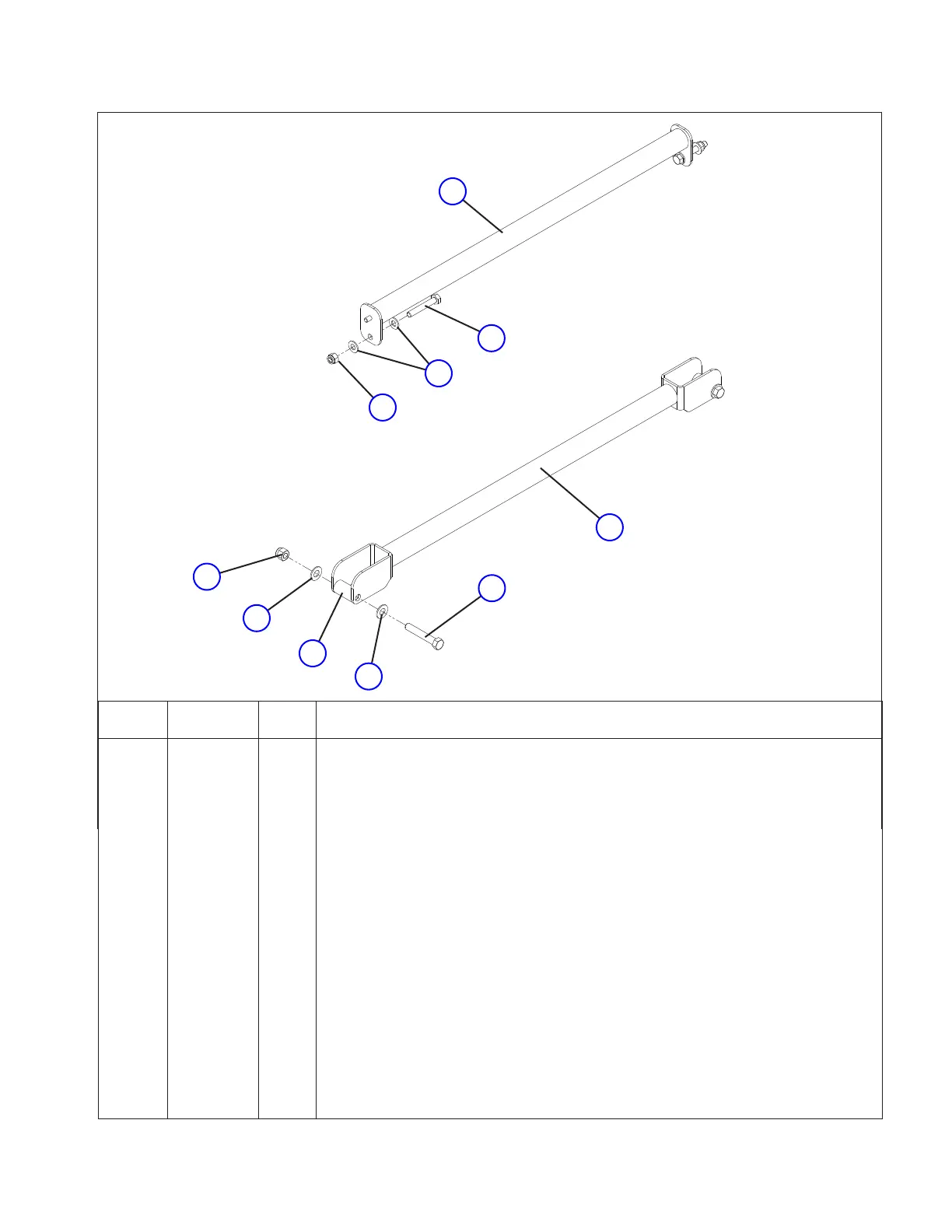

1.4 Drop Gate
3
4
9
8
9
6
Index
No.
Skyjack
Part No.
Qty. Description
- 160707 - DROP GATE ASSEMBLY
1 160708 1 • WELDMENT, Tie bar
2 103865 2 • BOLT, Hex head (5/16”-18 x 2.00”, Grade 5)
3 103996 4 • WASHER, Flat (5/16”)
4 103984 2 • NUT, Hex head nylon lock (5/16”-18, Grade 5)
- 162965 1 • DROP BAR ASSEMBLY
5 162958 1 • • WELDMENT, Drop bar
6 154386 2 • • SPACER (3/8” ID x 0.75” OD x 1.375” long)
7 103872 2 • • BOLT, Hex head (3/8”-16 x 2.25”, Grade 5)
8 104606 2 • • NUT, Hex head nylon lock (3/8”-16, Grade 5)
9 103472 4 • • WASHER, Flat (3/8”)
