Skyjack SJ51AJ Parts Manual

Articulating Boom Series
Models SJ46AJ & SJ51AJ
170947
SKYJACK, Page 83

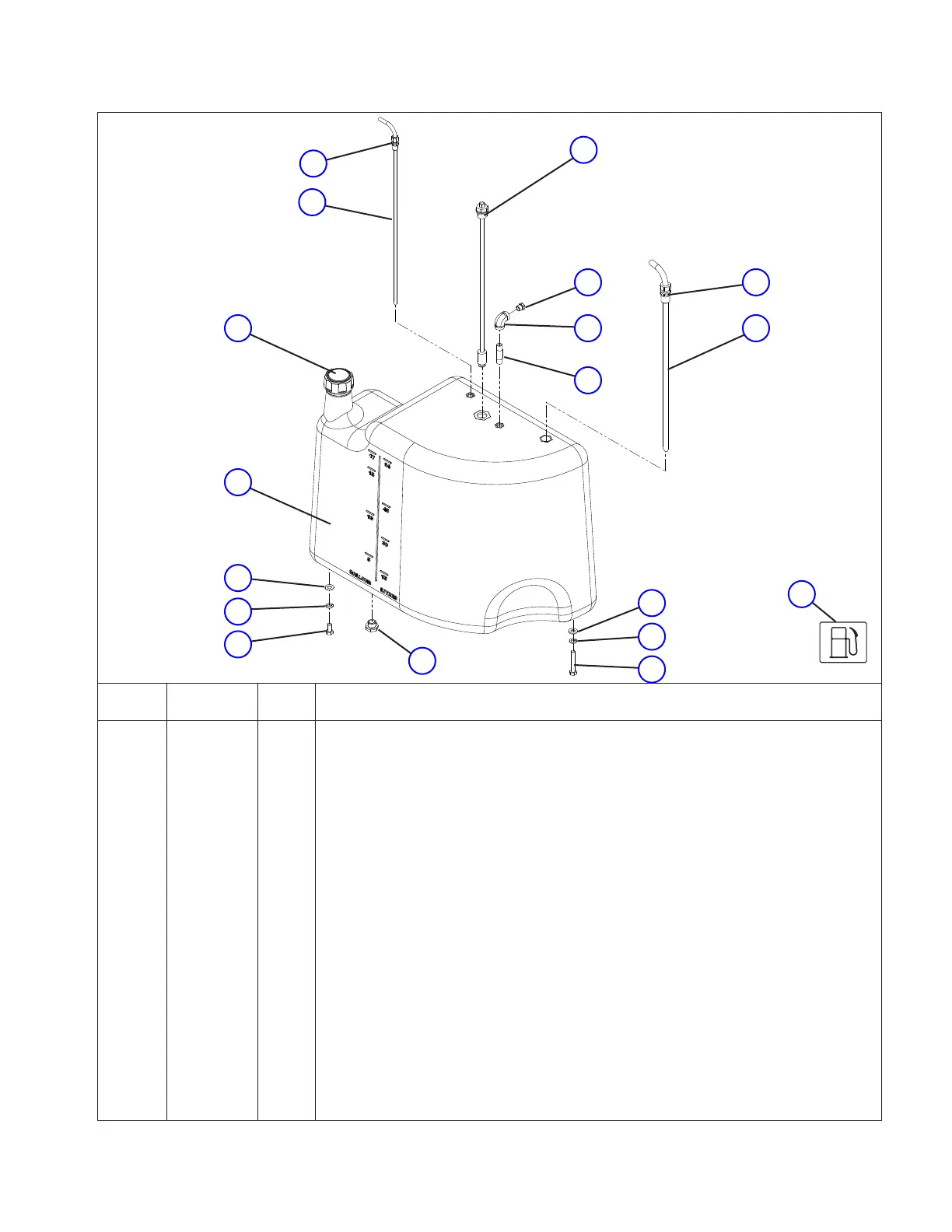

4.13 Fuel Tank Assembly - Deutz D2.9L Engine
4
M165004AA
16
9
12
14
15
12
13
15
3
5
1
8
7
6
10
11
2
Index
No.
Skyjack
Part No.
Qty. Description
- 165004 1 FUEL TANK ASSEMBLY - Deutz D2.9L engine
- 164830 1 • TANK ASSEMBLY - Diesel
1 138230 1 • • SWITCH, Fuel level
2 137629 1 • • FITTING, Plug hollow hex (10 ORB)
3 103155 1 • • FITTING, Brass tank (1/4” NPT)
4 144410 1 • • CAP, Fuel
5 138491 1 • • TUBE, Fuel send/return
6 143478 1 • • FITTING, Nipple (1/4” NPT x 2” brass)
7 144325 1 • • FITTING, 90˚ (1/4” NPTF x 1/4” NPTF brass)
8 116408 1 • • VENT, breather (1/4” NPT)
9 164829 1 • • TANK, Moulded, diesel
10 164674 1 • • FITTING, Tube compression (1/2” OD x 1/2” NPT)
11 164673 1 • • TUBE, Fuel section
12 125959 4 • WASHER, Flat (3/8”)
13 103872 2 • BOLT, Hex head (3/8”-16 x 2.25”, grade 5)
14 101632 2 • BOLT, Hex head (3/8”-16 x 0.75”, grade 5)
15 103999 4 • WASHER, Lock (3/8”)
16 (Ref.) - FUEL
(For components, refer to Section 11.1)
