Skyjack SJ51AJ Parts Manual

SKYJACK, Page 196 Articulating Boom Series
Models SJ46AJ & SJ51AJ
170947
AE

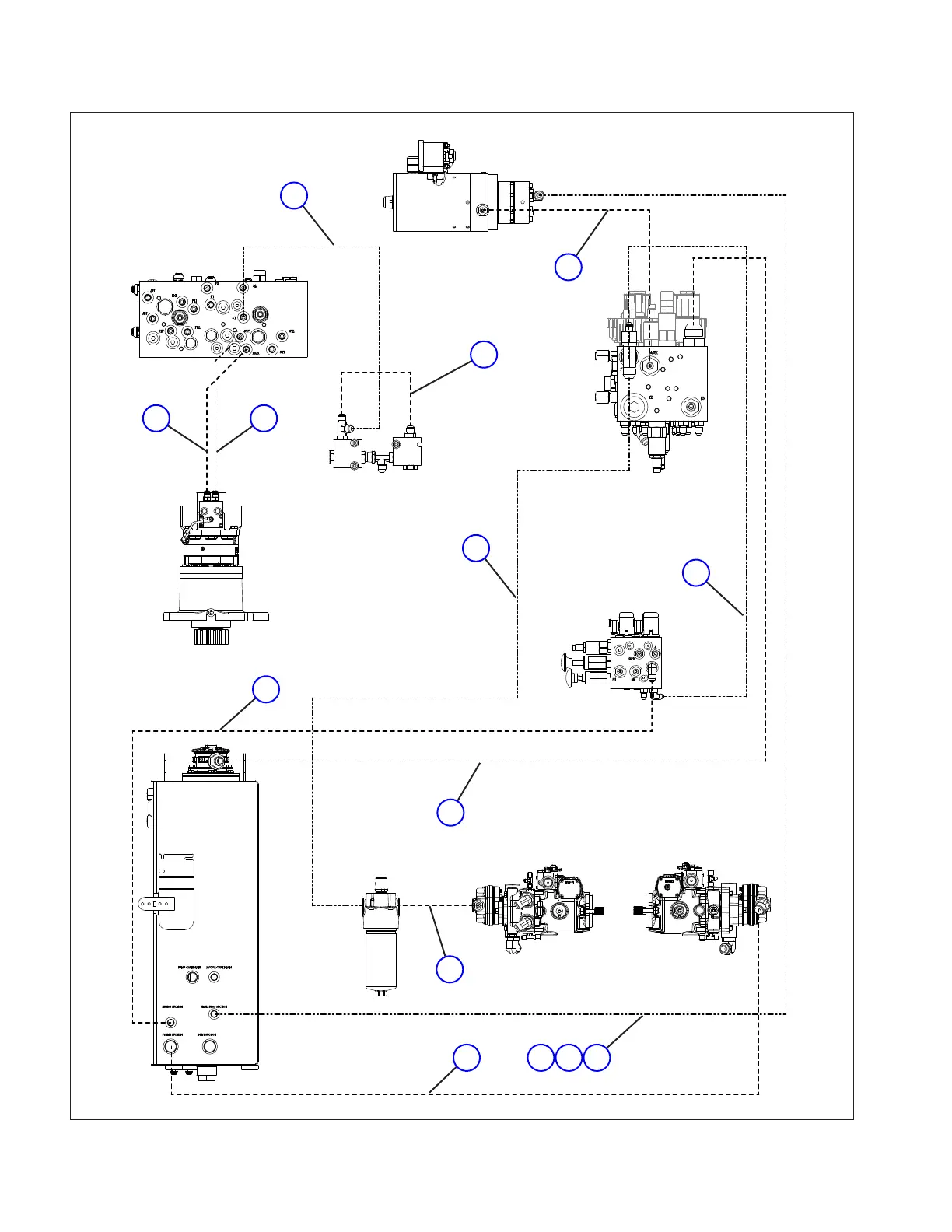

8.5 Hydraulic Hose Connection - Turret (S/N 95 002 085 & above)
OUT
T1
T3
T4
IN
DRIVE/SYSTEM
PUMP (Outside)
MAIN
MANIFOLD
(Right)
P
AUX
LS
AUXILIARY
PUMP
IN
OUT
DRIVE/SYSTEM
PUMP (Inside)
HYDRAULIC
TANK
PRESSURE
FILTER
IN
OUT
T1
P
BRAKE
MANIFOLD
(Right)
T
MAIN MANIFOLD
(Bottom)
SWING DRIVE
CHECK VALVES
B
A
SW1
SW2
S1
1
2
M211209AA_M166841AA
14
13
75
9
6
12
8
12
4
3
10 11
