Skyjack SJ51AJ Parts Manual

Articulating Boom Series
Models SJ46AJ & SJ51AJ
170947
SKYJACK, Page 215

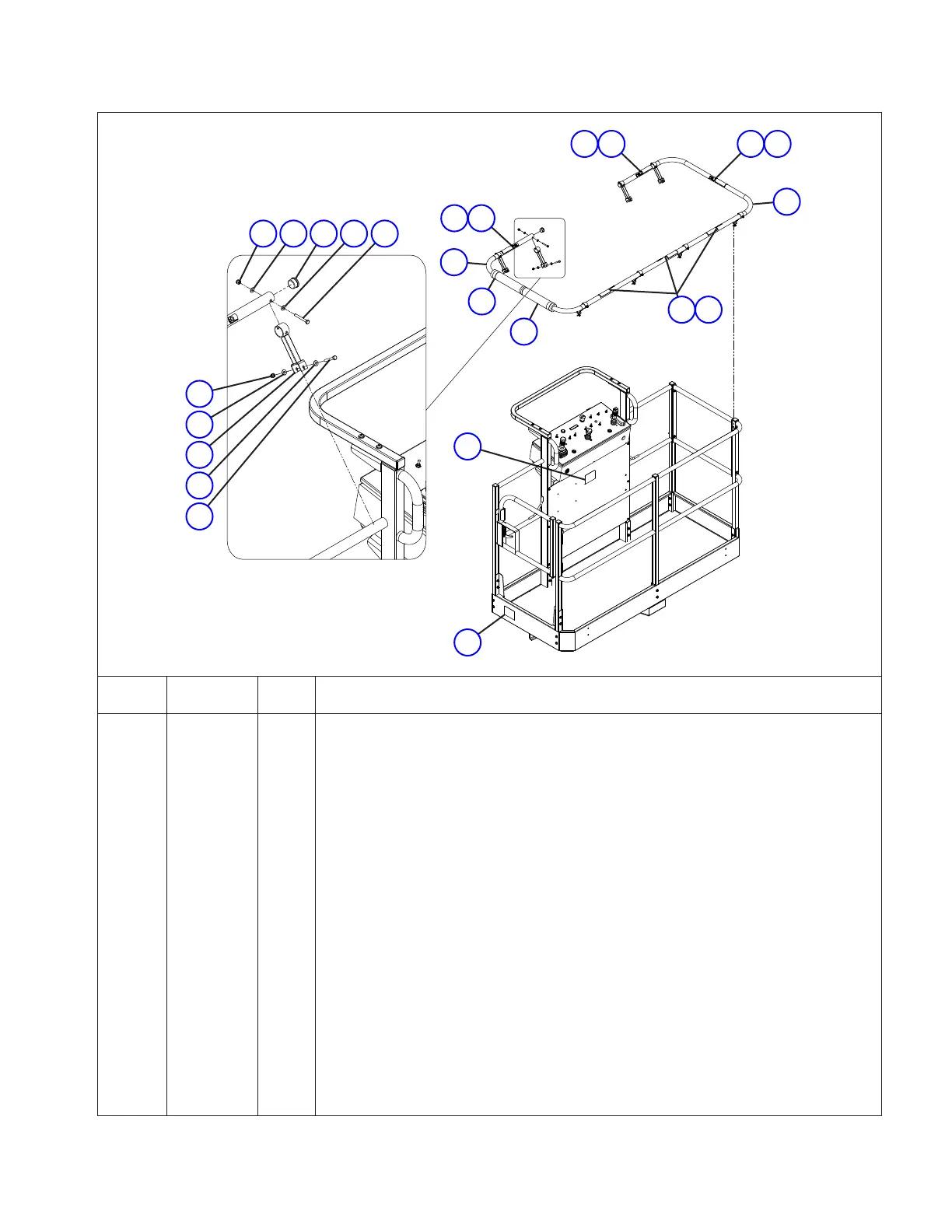

9.4 External Platform Railing Assembly
M152574AB
L2
5
1
2
L4
L3
L3
L2
L1L1
L1
L2
L2
8
8
4
6
6
7
36 6 7
L1
Index
No.
Skyjack
Part No.
Qty. Description
- 152574 - EXTERNAL PLATFORM RAILING ASSEMBLY (72” x 30”)
1 152573 1 • TUBE, External railing (Right)
2 152572 1 • TUBE, External railing (Left)
3 144048 2 • PLUG, Round end
4 144747 8 • WELDMENT, External railing stand-off
5 104183 2’ • PAD, Entry railing
6 103995 32 • WASHER, Flat (1/4”)
7 103861 16 • BOLT, Hex head (1/4”-20 x 2” Grade 5)
8 115649 16 • NUT, Hex lock (1/4”-20 Grade 5, nylon)
L1 115543 6 • LABEL, Warning no step
L2 137988 6 • LABEL, Hazard crush/pinch point
L3 144722 2 • LABEL, Capacity (475 lb/2 person)
L4 119803 22.5” • LABEL, Caution tape

Skyjack SJ51AJ Specifications

General

Brand	Skyjack
Model	SJ51AJ
Category	Boom Lifts
Language	English
