Skyjack SJ51AJ Parts Manual

Articulating Boom Series
Models SJ46AJ & SJ51AJ
170947
SKYJACK, Page 55
M148714AB
K1
K1
K1
3
4
5
6
7
2
7
8
12
1
10
11
9
K1

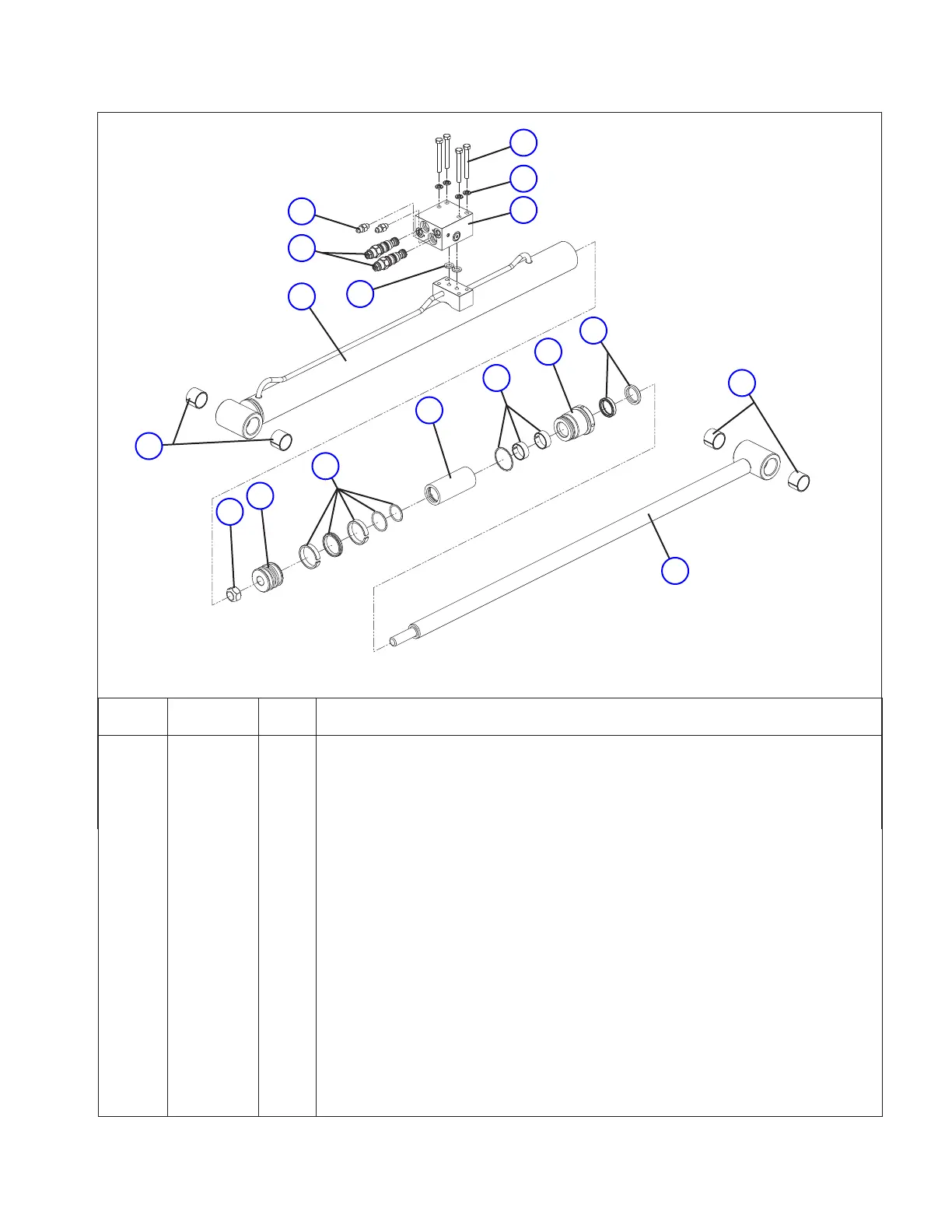

3.7 Jib Cylinder
Index
No.
Skyjack
Part No.
Qty. Description
- 148714 - JIB CYLINDER ASSEMBLY
1 154550 1 • WELDMENT, Tube
2 154539 1 • NUT, Rod
3 154543 1 • PISTON
4 154546 1 • STOP SLEEVE
5 154544 1 • GLAND
6 154551 1 • WELDMENT, Rod
7 154553 4 • BEARING
8 149372 1 • VALVE, Counterbalance
9 154556 1 • BLOCK, Manifold
10 154554 4 • BOLT, Hex head (5/16”-18 x 2 3/4” Grade 5, zinc)
11 154555 4 • WASHER, Flat zinc (5/16”)
12 126128 2 • FITTING, Straight (04 JICM - 04 ORBM)
K1 154549 1 KIT, Seal
