Skyjack SJ51AJ Parts Manual

SKYJACK, Page 52 Articulating Boom Series
Models SJ46AJ & SJ51AJ
170947
M148710AB
8
8
109
10
7
7
1
2
K1
3
4
6
K1
5
K1
K1

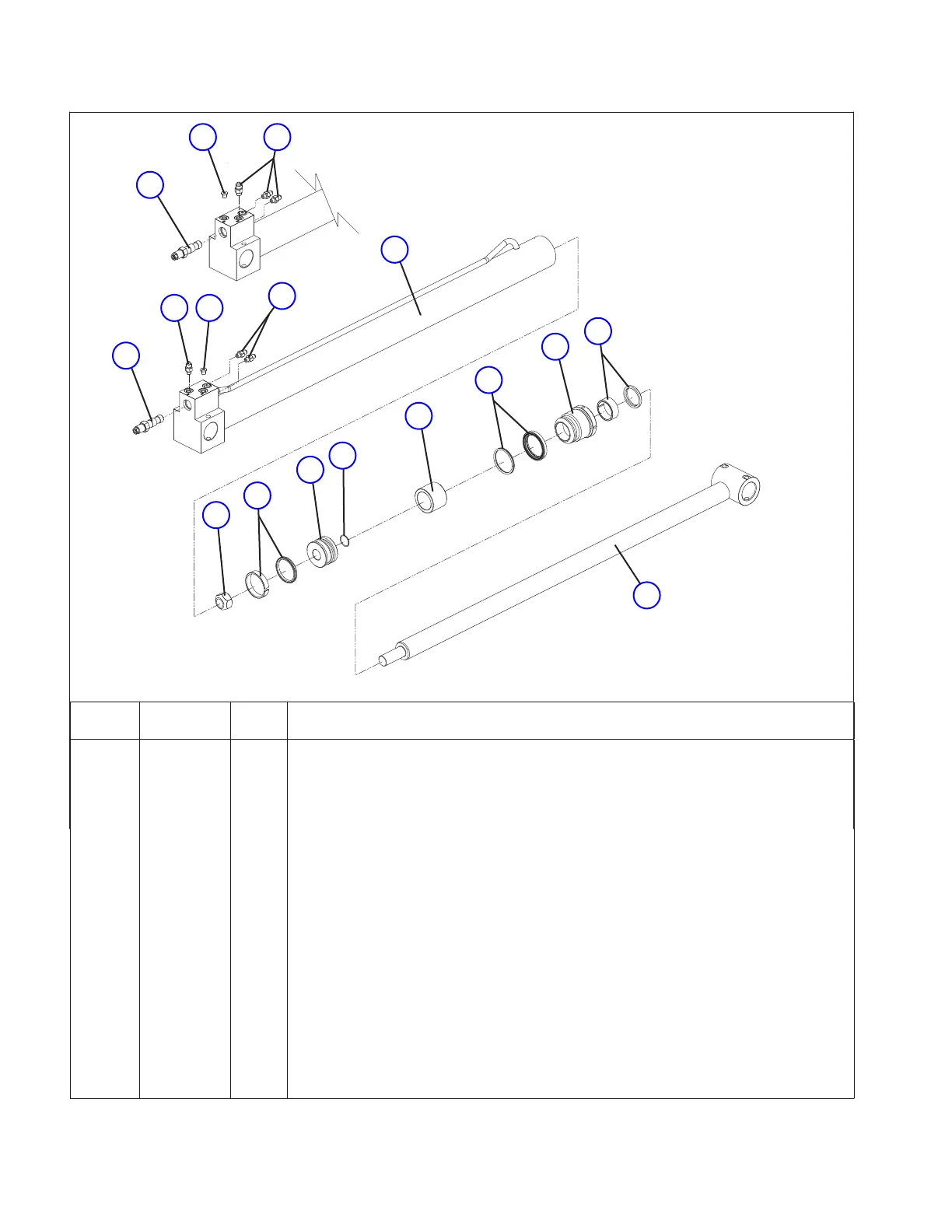

3.4 Riser Cylinder
Index
No.
Skyjack
Part No.
Qty. Description
- 148710 2 RISER CYLINDER ASSEMBLY
1 154563 1 • WELDMENT, Tube
2 152256 1 • NUT, Rod
3 154566 1 • PISTON
4 154568 1 • TUBE STOP
5 154567 1 • GLAND
6 154564 1 • WELDMENT, Rod
7 149488 1 • VALVE, Counterbalance
8 128869 5 FITTING, Straight (06 JICM - 04 ORBM)
9 126128 1 FITTING, Straight (04 JICM - 04 ORBM)
10 121250 2 PLUG, Hex socket (04 ORBM)
K1 154562 1 KIT, Seal
