SKYJACK, Page 34 Articulating Boom Series
Models SJ46AJ & SJ51AJ
170947
located on riser behind main boom
M162345AB

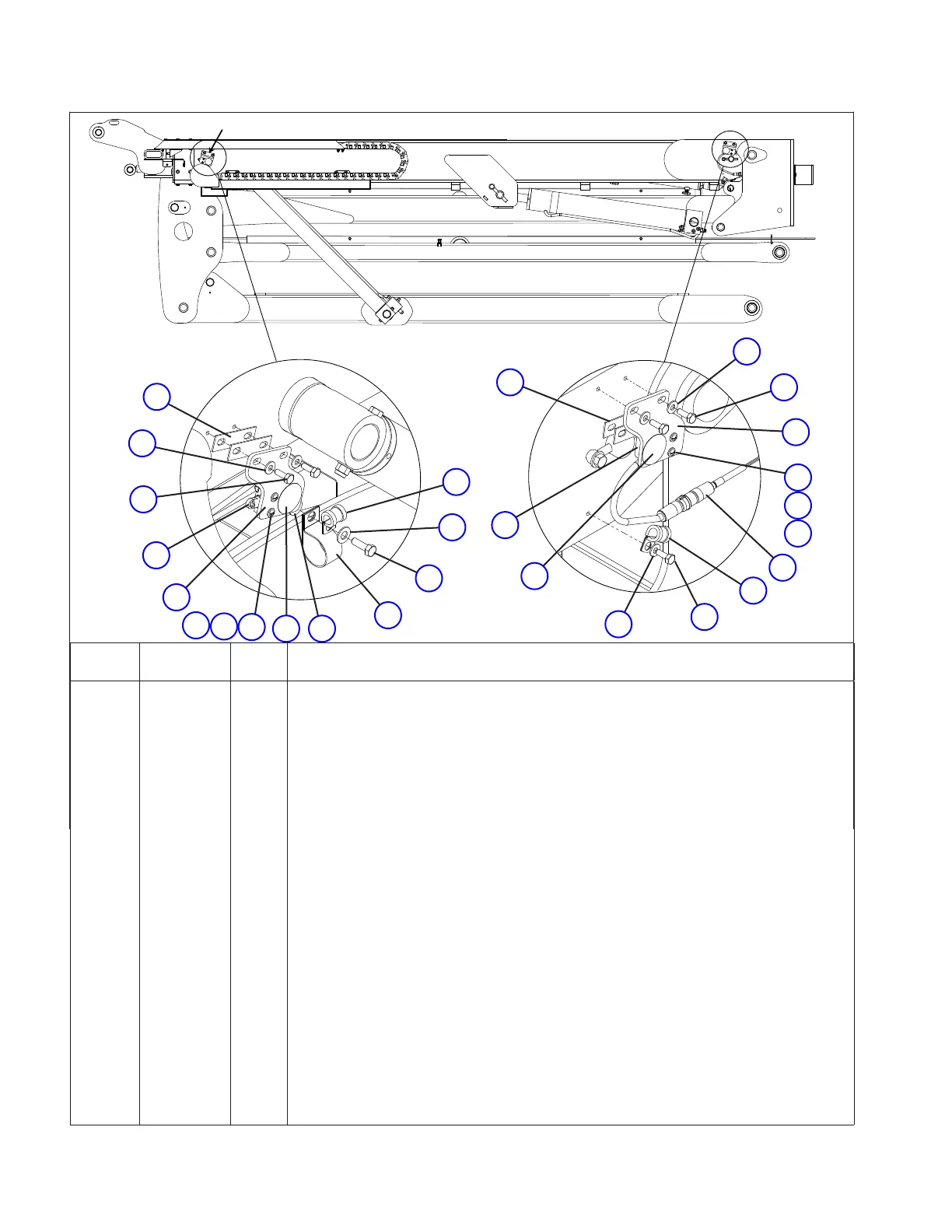

2.2 Main & Riser Boom Limit Switches
14
2
6
8
10
16
13
12
1
7
15
3
12
13
14
10
11
9
9
7
5
4
14
6
8
13
17
A
B
Index
No.
Skyjack
Part No.
Qty. Description
- 162345 1 LIMIT SWITCH ASSEMBLY - MAIN AND RISER BOOM
A 162362 1 • BRACKET ASSEMBLY, Limit Switch
1 161582 1 • • SWITCH ASSEMBLY, Roller plunger
2 162363 1 • • BRACKET
3 162720 1 • • CORD, Switch
B 162370 1 • BRACKET ASSEMBLY, Limit Switch
4 111356 1 • • SWITCH, Limit, roller plunger
5 162363 1 • • BRACKET
6 152294 2 • • SCREW, Round head machine (#8-32 x 1.25”), A, B
7 138765 2 • • NUT, Hex head nylon lock (#8-32, Grade 5), A, B
8 103991 4 • • WASHER, Flat (#8), A, B
9 156613 1 • • LABEL, Do not alter, A, B
10 149495 2 • CLAMP, Tube (cushioned)
11 409187 1 • CLAMP, Hose (1-1/2”)
12 161053 4 • SHIM
13 103995 5 • WASHER, Flat (1/4”)
14 103856 5 • BOLT, Hex head (1/4”-20 x 0.75”, Grade 5)
15 103472 2 • WASHER, Flat (3/8”)
16 103864 1 • BOLT, Hex head (5/16”-18 x 1.00”, Grade 5)
17 103984 1 • NUT, Hex head nylon lock (5/16”-18, Grade 5)
To Next Page
