Skyjack SJ51AJ Parts Manual

Articulating Boom Series
Models SJ46AJ & SJ51AJ
170947
SKYJACK, Page 53
M148628AA
7
11
8
9
10
1
6
78
9
10
K1
5
4
K1
2
K1
3
K1

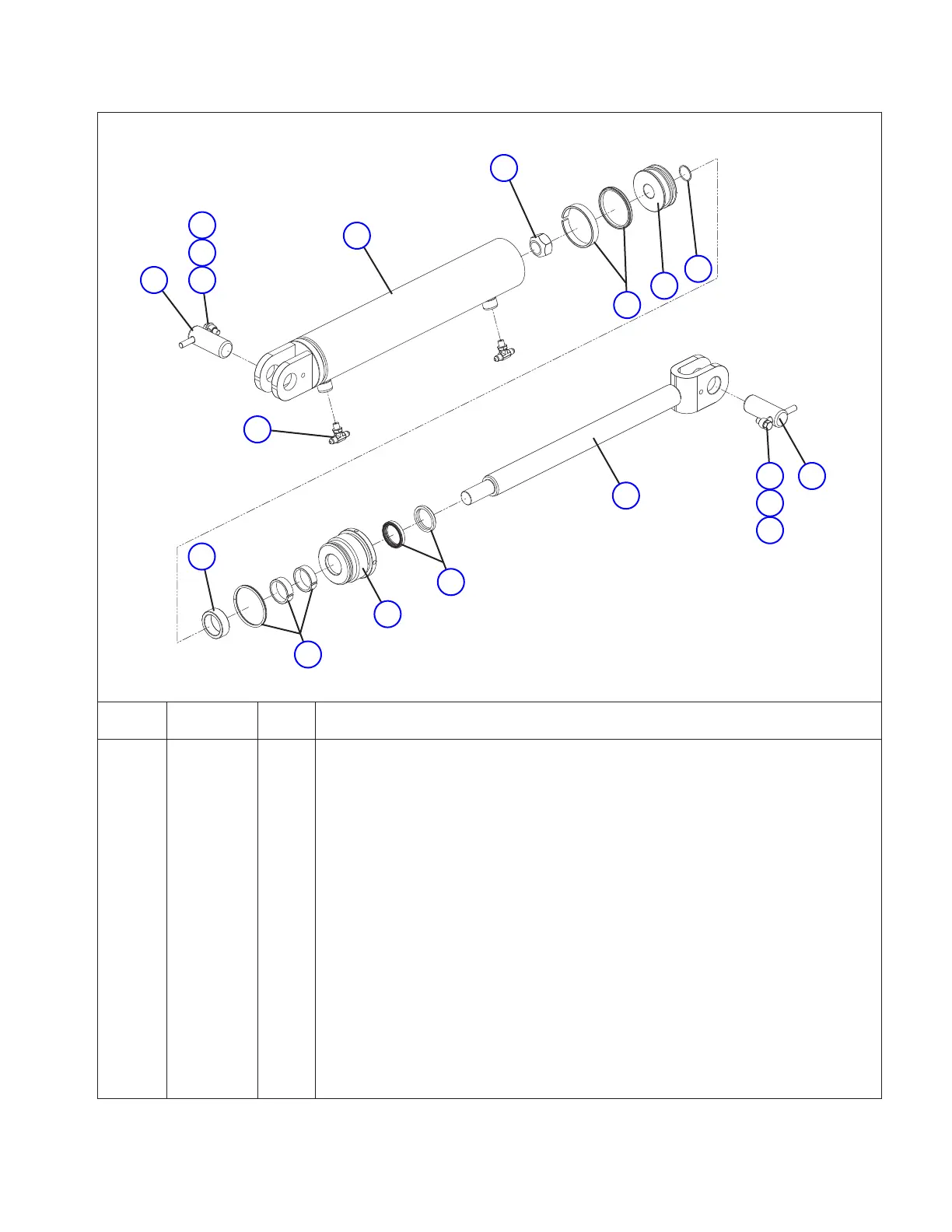

3.5 Master Cylinder
Index
No.
Skyjack
Part No.
Qty. Description
- 148628 - MASTER CYLINDER ASSEMBLY
- 148715 1 • MASTER CYLINDER
1 154525 1 • • WELDMENT, Tube
2 152256 1 • • NUT, Rod
3 154522 1 • • PISTON
4 154527 1 • • TUBE STOP
5 154523 1 • • GLAND
6 154526 1 • • WELDMENT, Rod
7 148846 2 • PIN (1 1/4” diameter x 3 1/8”)
8 146897 2 • KEEPER PIN (3/8”)
9 139193 2 • BOLT, Hex head patch (3/8”-16 x 7/8” Grade 8, ZP)
10 103472 2 • WASHER, Flat (3/8”)
11 132463 2 • FITTING, Tee (04MJ04MB04MJ)
K1 154524 1 KIT, Seal
