Articulating Boom Series
Models SJ46AJ & SJ51AJ
170947
SK
YJACK
, P
age 271
M169469AA
1
2

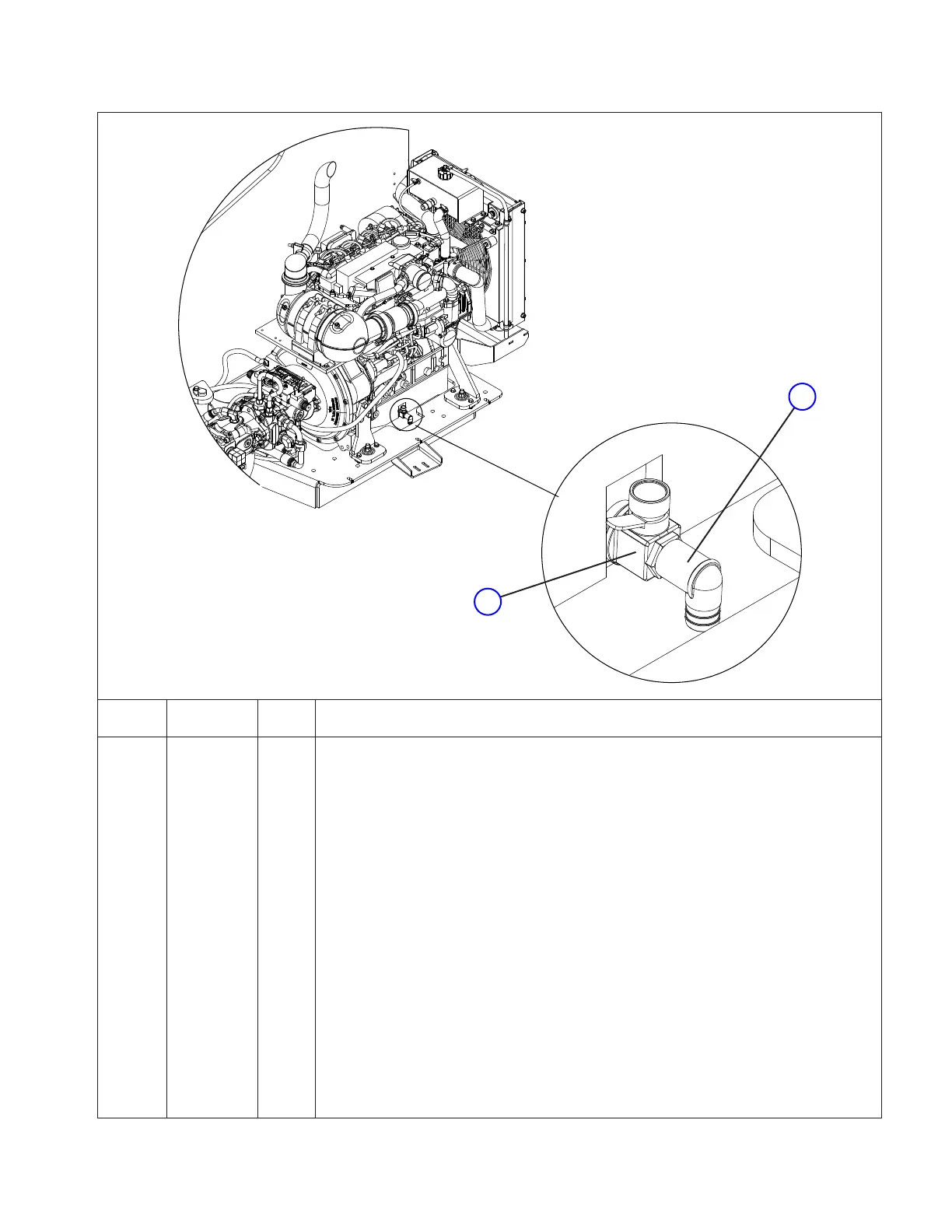

9.33 Oil Quick Drain
AB
Index
No.
Skyjack
Part No.
Qty
.
Description
A
169469
1
OIL QUICK DRAIN -
Deutz Engines
B
171265
1
OIL QUICK DRAIN -
Kubota Engines
1
167431
1
• VAL
VE, Oil drain,
A
170731
1
• VAL
VE
, Oil drain,
B
2
167432
1
• ELBOW
, 90˚ oil drain,
A
270
